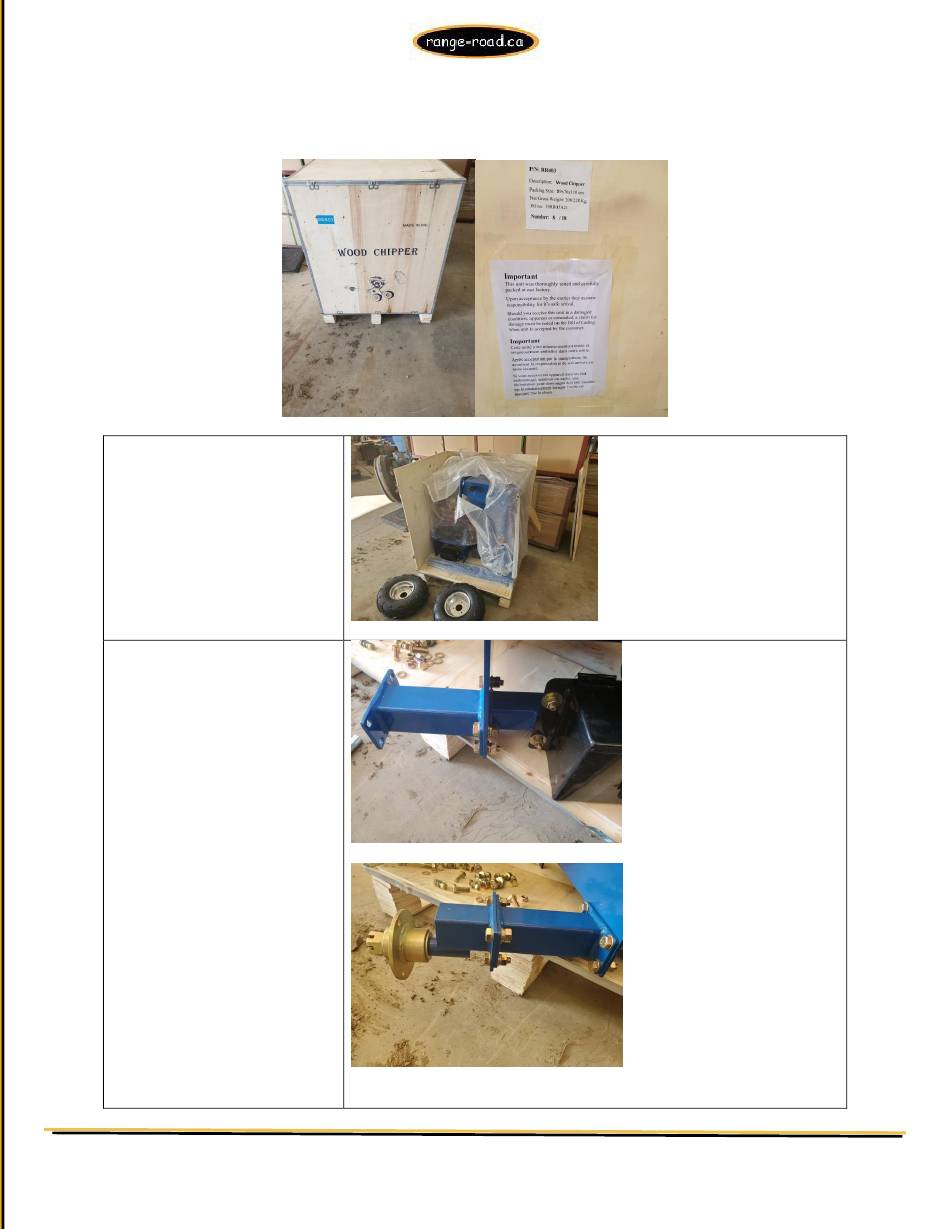

Unpack everything and start
assembly
Leave the main body assembly on
the base of the crate.
Slide the battery box to the edge
of the crate
Bolt the axle extension to the
main body assembly – 4-16mm
nuts & bolts
Bolt the axles to the axle
extensions – 4-16mm bolts & bolts
Install the wheel and tire
assembly onto both axles –
Range Road Enterprises Ltd
Box 944
Eckville AB T0M 0X0
www.range-road.ca
RR403 Wood Chipper
Assembly of the RR403 ATV Towable Wood Chipper.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Range Road RR403
Summary of Contents for Range Road RR403
- Page 1 RR403 Wood Chipper Assembly of the RR403 ATV Towable Wood Chipper. Unpack everything and start assembly Leave the main body assembly on the base of the crate. Slide the battery box to the edge of the crate Bolt the axle extension to the main body assembly –...
- Page 2 RR403 Wood Chipper 3-13mm nuts and bolts The machine should now look like this Use a floor jack or blocks to support the unit in the centre, make sure the unit is stable then install the front leg – 4-16mm nuts &...
- Page 3 RR403 Wood Chipper Pull out pin and install front support leg with the feet pointing away from the unit, put bolt through the front hole of the leg support and the pin & retainer through the rear hole Install 2” coupler – 2-16mm bolts &...
- Page 4 RR403 Wood Chipper Unscrew the red emergency stop button, the silver retainer nut and the white retainer If the switch goes through the housing and 2 sizes of threads are showing install the bigger white nut, then the rubber seal...
- Page 5 RR403 Wood Chipper Slide the wires into the metal tube on the infeed housing, make sure they both come through the bottom, fasten the 4-10mm bolts Connect these 2 wires to the provided connectors from the engine, red connector to red connector, blue to blue.
- Page 6 RR403 Wood Chipper Install the 2 half circle bracket and the rest of the 13mm bolts & nuts, the top portion should easily swivel when you push down on the bar to lift the lock pin. Tighten all the bolts & nuts and...
- Page 7 RR403 Wood Chipper Grease the shaft by using a grease gun on the fittings on both sides of the machine Remove the outer blue cover pictured here. There are two Allen head bolts that secure the drum shaft on this side...
- Page 8 RR403 Wood Chipper The machine is now fully assembled Add fuel and engine oil to the engine Check that all covers are properly closed and the engine kill switch is rotated and lifted up, if the red button does not push down...
