CARLO GAVAZZI RSBS Series Manual

RSBS

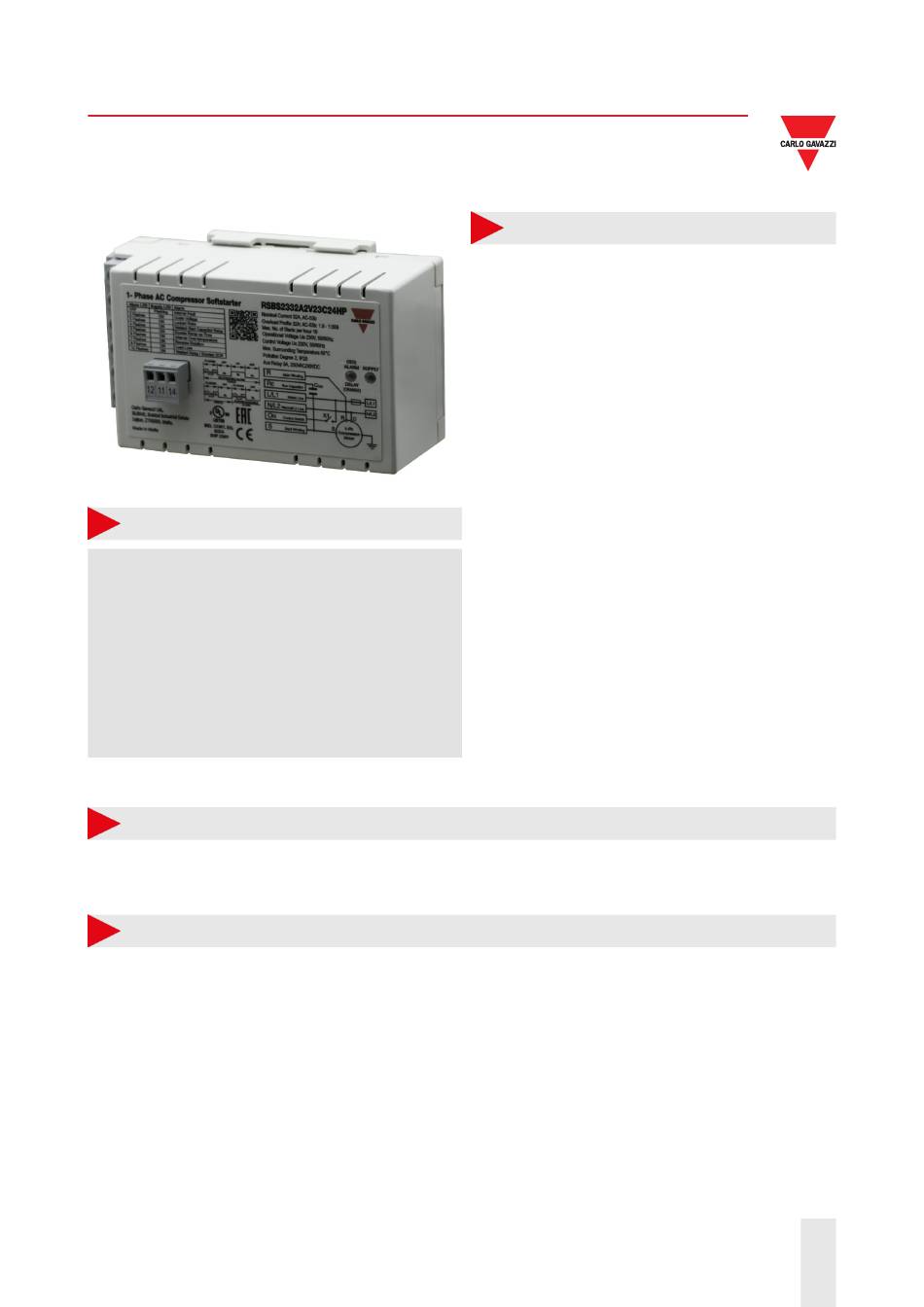

1-phase compressor soft starter
Description
The RSBS....V23C.. is a single phase soft starter for 1
phase compressors up to 32 Arms.
The RSBS can limit inrush currents to 45 AACrms (under
balanced conditions) and has a maximum ramp-up time of
600 ms. A special function (HP function) allows the RSBS to
start compressors, even when pressures are not balanced,
by allowing a maximum current of 80 AACrms. Following
the ramp-up, the semiconductors will be bypassed by the
internal electromechanical relay. The RSBS is rated for a
maximum of 10 starts per hour (evenly distributed).
Applications
• Scroll compressors, piston compressors
Main features
• Limitation of compressor starting current
• Ramp-up time optimised to 600 ms
• Anti-short cycling function with built-in delay between starts
• Voltage dips/interruptions detection during bypass state
27/05/20 RSBS DS ENG
Benefits
• Easy to use. No user adjustments required.
Space saving solution. Compact DIN or panel mount
•
versions available. Integrated start capacitor.
• Integrated diagnostics. Detection for voltage dips and
interruptions. Detection of welded relay contacts.
Adjusts to load requirements. The built-in HP function
•
ensures that the compressor starts in < 1 second even
under high pressure difference during start.
• Guided model selection.
selection tool to select the appropriate soft starter
model depending on the compressor brand/model.
http://gavazziautomation.com/nsc/HQ/EN/soft_starters.
• Reduces light flicker. RSBS reduces the compressor
start current by >50% to reduce light flickering.
RSBS
Easy to use online
1
