Page 1: Tube.30

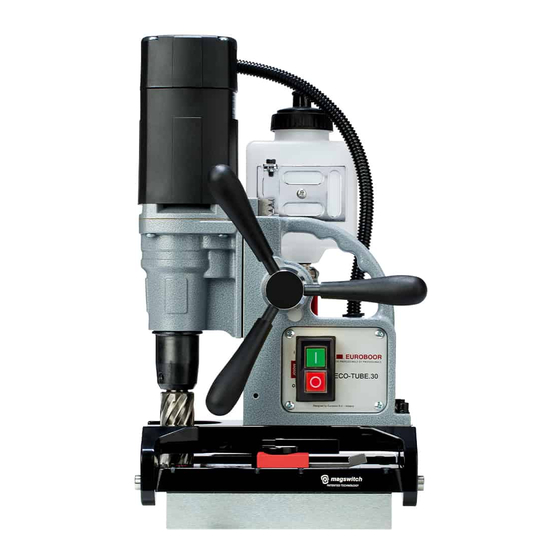

Operators manual V 1.1 | June 2020 Magnetic drilling machine TUBE.30 Serial number: Date of purchase: Don’t forget to register your machine at: www.euroboor.com/register [ only when registered you benefit from extended warranty ]... - Page 2 Congratulations on purchasing this premium magnetic drilling machine which has been established in collaboration with MagSwitch. At EUROBOOR we strive to exceed our customers’ expectations by developing and providing premium and innovative portable drilling and cutting solutions. We believe that a professional like you must be able to rely on a professional supplier.
-
Page 3: Table Of Contents
Table of contents TUBE.30 ............................. 1 Table of contents ..........................3 1. Safety ............................. 4 1.1 General safety instructions ........................ 4 1.2 Specific safety information......................... 6 2. Description ............................. 8 2.1 Intended use ............................8 2.2 Description and features ........................8 2.3 Box contents ............................ -
Page 4: Safety
1. Safety 1.1 General safety instructions Do not use this magnetic drilling machine before you have thoroughly read and completely understood this manual, specifically the “General safety instructions” and ‘’Specific safety information’’, including the figures, specifications, safety regulations and the signs indicating DANGER, WARNING and CAUTION. WARNING: When using electrical tools basic safety precautions should always be followed to reduce the risk of fire, electrical shock and personal injury. - Page 5 If you detect damage have the machine serviced before use. Many accidents are caused by poorly maintained tools; 10. Only use accessories that are recommended by EUROBOOR for your machine model. Accessories that are suitable for one machine may become hazardous when used on another machine.
-
Page 6: Specific Safety Information
• Always use the recommended speed for the accessories and material you are working with; • Do not use the machine on the same workpiece on which electric welders are working; • Only use an appropriate cutting lubricant. EUROBOOR offers a wide range of well-considered cooling and lubrication products to match your requirements;... - Page 7 Residual risk In spite of following the relevant safety regulations and their implementation, certain residual risks cannot be avoided.These are: Impairment of hearing; • Risk of personal injury from flying particles; • Risk of burns due to accessories becoming hot during operation; •...
-
Page 8: Description
This magnetic drilling machine has been designed for commercial use in a weather-protected environment as a machine for drilling, countersinking and reaming of high precision holes in steel tubes and pipes, using annular cutters, twist drills and accessories recommended by EUROBOOR. The magnetic drilling machine can be used horizontally, vertically or overhead. -
Page 9: Box Contents
2.3 Box contents 1 TUBE.30 Magnetic drilling machine 1 x user manual 3 x handles 1 x hex key 2.5 mm 1 x hex key 3 mm 1 x hex key 4 mm 1 x hex key 5 mm 1 x lubrication system 1 x bottle (200 ml) of IBO.10 cutting oil... -
Page 10: Technical Data
2.5 Technical data Metric Imperial Ø 12 -30 mm Ø 7/16 -1 3/16" Annular cutters Twist drills Ø 1 – 13 mm Ø 1/16 - 1/2" Threading Ø 10 -35 mm Ø 3/8 -1 3/8" Countersinking Length 275 mm 10 13/16" Width 185 mm 7 1/4"... -
Page 11: Environmental
Symbol Term, meaning Explanation Kilogram Unit of measure for the mass. Pound Unit of measure for the mass. Volt Unit of measure for the electric voltage. Ampere Unit of measure for the electric current intensity. Watt Unit of measure for the output. No load speed Revolution speed at no load. -
Page 12: Preparation & Adjustment
[image 3-1] WARNING: Do not use the lubrication system in vertical or overhead drilling applications. Instead use EUROBOOR cutting paste or spray. Fitting the safety chain 1. Pass the safety chain through the opening near the grip;... -
Page 13: Prior To Use
Your EUROBOOR magnetic drilling machine is designed in class I (grounded) according to EN 61029-1. Earth wire is required. If the supply cord is damaged, it must be replaced by a specially prepared cord available at EUROBOOR or your EUROBOOR dealer. -
Page 14: Using The Machine
[image 4-1] 4.2 Magnet base By combining Magswitch’s rotating magnet technology and EUROBOOR’s magnetic drilling unit, we have created a tool that is capable of quickly and safely drilling on contoured and flat surfaces. Magswitch magnets allow for a much more efficient field on thinner material, allowing more consistent tip forces. - Page 15 Activating the magnets Both magnet arrays are to be handled individually. Make sure the magnet arrays are switched off (see below) [image 4-2] Place the magnetic drilling machine on the workpiece in the desired location, and make sure both magnet arrays are positioned correctly and the machine is in a stable position Rotate the ratcheting action handles: o For precise positioning: partly (around 90⁰) clockwise, this allows for some manoeuvrability...
-
Page 16: Switching Motor On And Off
Deactivating the magnets To deactivate the magnets: Gently press the release lever beneath the ratcheting action handle about 1.5 cm (9/16") towards the machine body to release the ratcheting action handle [image 4-4] While keeping the release lever pressed, return the ratcheting action handle counter clockwise to the original off position [image 4-5] 4.3 Switching motor on and off... -
Page 17: Tool Lubrication
EUROBOOR cutting paste or spray. Make sure to use only suitable cutting oil or fluid. EUROBOOR offers a wide range of cutting lubricants for all tool and material combinations. Proper cooling will help you create better and faster results, and... -
Page 18: Working With Operation Tools
5 Working with operation tools 5.1 Annular cutters Annular cutters only cut material at the periphery of the hole, rather than converting the entire hole to shavings. As a result, the energy required to make a hole is lower than for a twist drill.When drilling with an annular cutter, it is not necessary to drill a pilot hole. -
Page 19: Twist Drills
2. Precisely mark the center of the hole; 3. Use the pilot pin to position the machine in the correct position, with the tip of the pilot pin to meet the marked center of the hole; 4. Switch on the magnet and verify that the drill is in the right position and that the machine is pushed tight against the work piece;... -
Page 20: Maintenance
6. Maintenance Your EUROBOOR power tool has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning. CAUTION: To reduce the risk of injury, turn unit off and disconnect machine from power source before installing and removing accessories, before adjusting or changing set- ups or when making repairs. - Page 21 Repair, modification and inspection of EUROBOOR Magnetic drilling machines must be done by EUROBOOR or an EUROBOOR authorised dealer. The spare parts list will be helpful if presented with the machine to the EUROBOOR dealer for service when requesting repair or other maintenance.
-
Page 22: Trouble Shooting
7. Trouble shooting Motor does not work - Damaged or defective wiring - Carbon brushes are stuck or worn out - Defective magnet switch - Defective On / Off switch - Defective control unit - Defective armature and/or field Annular cutters break quickly, - Clearance in the guide holes are bigger than the hole - Bent spindle... - Page 23 Fuse blows when motor is started - Damaged or defective wiring - Wrong value fuse - Motor running roughly - Defective armature and / or field - Carbon brushes worn out - Defective control unit Rotation system free stroke too - Loose or defective gear-rack long - Defective rotation system...
-
Page 24: Exploded View & Spare Parts List
8. Exploded view & spare parts list 8.1 Exploded view... -
Page 28: Spare Parts List
8.2 Spare parts list Part no. Description Part no. Description 030E.5001 Motor complete PP.30/2ET Back panel ECO-TUBE.30 030E.5002 Motor 110V KSP.MS M5x10 Tank holder ECO.30(S) (frame 032.0106 Screw BK4,8x55 KSP.M4 side) 032.0111 End Cover 020.0081 End screw M6x16 032.0136 Screwfor spring 020.0077... - Page 29 Part no. Description Magnet array complete (incl. 8000996 76 & 77) CAS. Case for TUBE.30 metal TUBE30 Coolant tank Quick Connect 201 KSP.Q2 2015 202 020.0511 Bolt M5 x 10 203 IBO.10.200 Cutting oil IBO.10 0.2LTR 204 SAF.300 Protective gloves 205 SAF.400...
-
Page 30: Wiring Diagram
8.3 Wiring diagram... -
Page 31: Warranty And Service
Service To maximise the lifetime of your EUROBOOR machine always use service and parts from an official EUROBOOR distribution channel. Whenever in need of such, always contact original point of sales or if no longer existent the distributor of EUROBOOR products in your country.
