CyberData DX80 Installation Quick Reference page 3

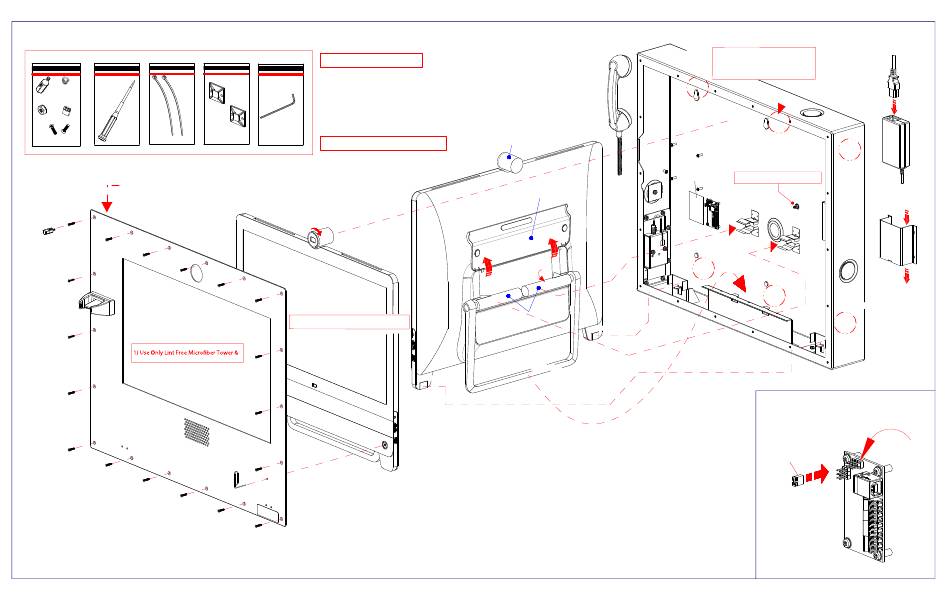

Install the DX80 Phone to Enclosure
Accessory Kit
#6-32 x 3/16"
Button Head Torx
Machine Screw
T-15 Pin Torx (Spare)
Security Driver Bit
#8 Hex Nut
Jumper Shunt
(GND Lug)
#6-32x5/8"Flat Head
Pin Torx Machine Screw 6" Wire Tie (2x)
(Spare - 2 Pieces)
#00 Screw Driver Kit Cable Management Kit
Torx Sec. Bit & Spare Screw Kit
See Hookswitch to
USB to Analog Audio Module Diagram
for Detail Connections
Use Provided Security Torx
Driver Bit to Fasten Screws
to Backbox
Acrylite AR - Anti-Scratch
Resistance Coating on the Outside
Plexiglass Cleaning Instruction:
Plexiglass Cleaner to Wipe Surface Clean
FACEPLATE
ASSEMBLY
Use a Paper Clip Through Hole
© 2020, CyberData Corporation, ALL RIGHTS RESERVED
Phone Mounting Instruction:
1) Lift Connector Cover Up
2) Plug in All Neccessary Cables,
Cables Must be Placed Behind Strain Relief Bar
3) Place Foot Stand Behind Plate
4) Place Microphone on to Stand
5) Place Strain Relief Bar on Top of CLAMP
Sightly Push Downward to Engage Locking
1.5" Square
Wire Tie Mounting 1/16" Hex L-Key
Base (2x)
To Remove Phone from Backbox:
Cable Management Kit Acrylic Bezel Remove Kit
1) Lift Phone Up in Slow Motion then Disconnect
All Cable from Connector Panel
Turn to Open Lens Cover
on DX80 Phone
Screen Cleaning Instruction:
Use Clean Damp Cloth to Wipe Surface Clean
to Access Power Button
931352B
Camera
Connector Cover
Behind
Front
Strain Relief Bar
Foot Stand
Microphone
Quick Reference Quick Reference
Tool Required to Remove Knock Outs (KO):
1) Hammer
2) Screw Driver
3) Plier
Knock Outs (KO) & Keyhole Fit:
Up to 1/4" Square Neck Carriage Bolt
1/4" Self-Tapping Screw
or 10 Millimeter Machine Screw
KO
Camera
Holder
BACKBOX
ASSEMBLY
Ground Lug
Connections
Label Fits Size #8 or M4 Ring Terminal
CLAMP
KO
Stand
KO
Plate
Microphone
Enable Auto Answer Mode
Shunt
931352B © 2020, CyberData Corporation, ALL RIGHTS RESERVED
IEC Power Cord
the Other Through Any Available
Conduit Hole Exit to Power Source
KO
KO
Place Phone
Power Supply
inside Holder
CLAMP
Plug Power Plug
in to Power Jack
on the Connector Panel
KO
Stand
Install a Shunt on JP2 to
JP2
