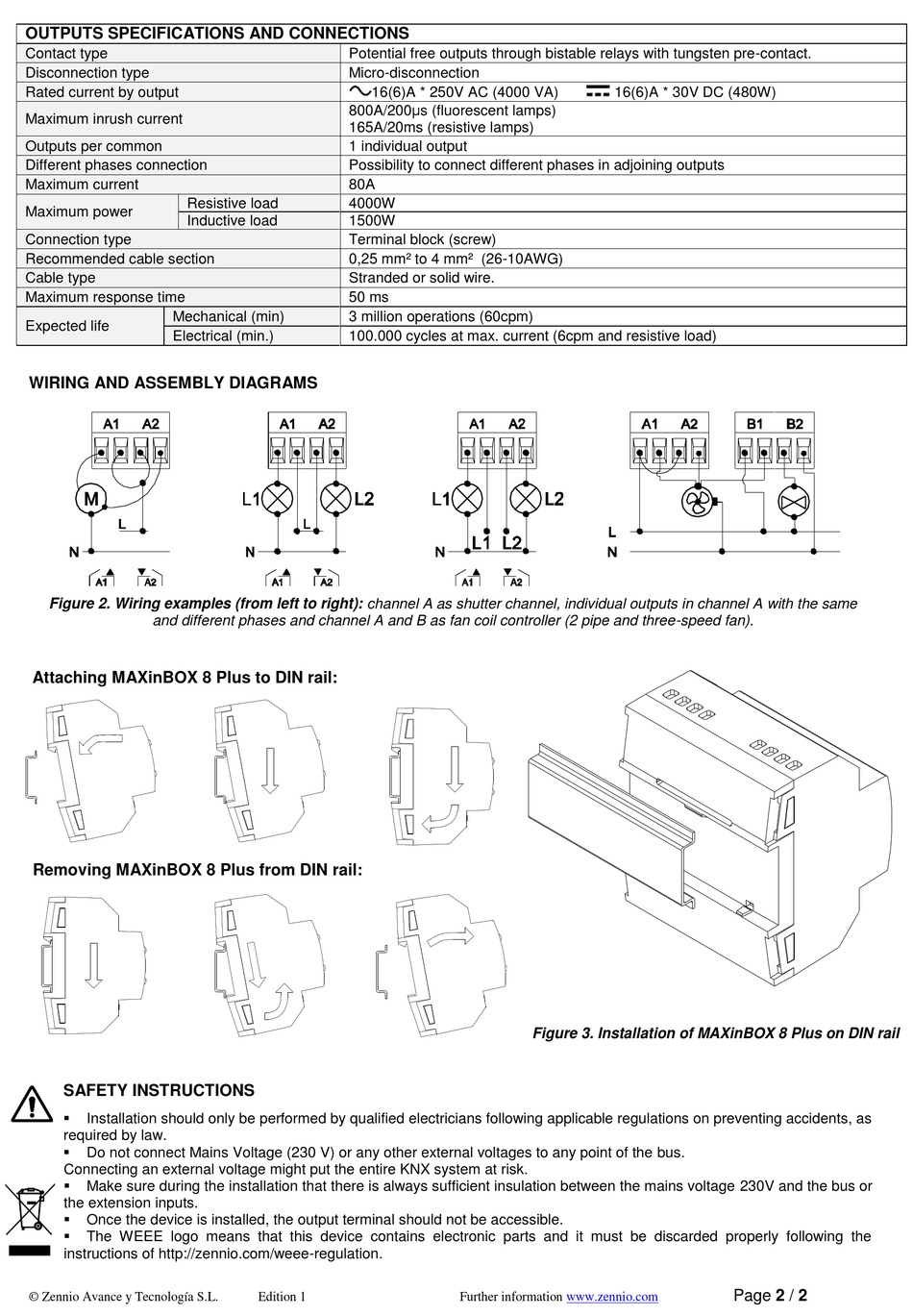

OUTPUTS SPECIFICATIONS AND CONNECTIONS

Contact type
Disconnection type
Rated current by output
Maximum inrush current
Outputs per common
Different phases connection
Maximum current
Resistive load
Maximum power
Inductive load
Connection type
Recommended cable section
Cable type
Maximum response time
Mechanical (min)
Expected life
Electrical (min.)

WIRING AND ASSEMBLY DIAGRAMS

Figure 2. Wiring examples (from left to right): channel A as shutter channel, individual outputs in channel A with the same
and different phases and channel A and B as fan coil controller (2 pipe and three-speed fan).
Attaching MAXinBOX 8 Plus to DIN rail:
Removing MAXinBOX 8 Plus from DIN rail:

SAFETY INSTRUCTIONS


Installation should only be performed by qualified electricians following applicable regulations on preventing accidents, as
required by law.

Do not connect Mains Voltage (230 V) or any other external voltages to any point of the bus.
Connecting an external voltage might put the entire KNX system at risk.

Make sure during the installation that there is always sufficient insulation between the mains voltage 230V and the bus or
the extension inputs.

Once the device is installed, the output terminal should not be accessible.

The WEEE logo means that this device contains electronic parts and it must be discarded properly following the
instructions of http://zennio.com/weee-regulation.
© Zennio Avance y Tecnología S.L.
Potential free outputs through bistable relays with tungsten pre-contact.
Micro-disconnection
16(6)A * 250V AC (4000 VA)
800A/200μs (fluorescent lamps)
165A/20ms (resistive lamps)
1 individual output
Possibility to connect different phases in adjoining outputs
80A
4000W
1500W
Terminal block (screw)
0,25 mm² to 4 mm² (26-10AWG)
Stranded or solid wire.
50 ms
3 million operations (60cpm)
100.000 cycles at max. current (6cpm and resistive load)
Edition 1
16(6)A * 30V DC (480W)
Figure 3. Installation of MAXinBOX 8 Plus on DIN rail
Further information www.zennio.com
Page 2 / 2
