MultiConnect ® microCell Cellular Modem
Overview
The MultiConnect microCell (MTCM2) is a compact communications
device that provides network capabilities for fixed and mobile
applications.
Package Contents
Your package includes the following (varies with model):
Device 1- MultiConnect microCell modem
Antennas 2 - External antennas
Documents 1 - Quick Start, 1 - Warranty information
Documentation
To download documentation, go to
https://www.multitech.com/brands/multiconnect-microcell, select your
model and click Manuals for device specific documentation.
Document Description
MultiConnect microCell Hardware, regulatory, and getting
User Guide started information.
MultiConnect microCell This document. Steps for getting
Quick Start started. Check online for an update
version.
AT Commands Reference Lists AT Commands and parameters
Manual used to communicate with your device.

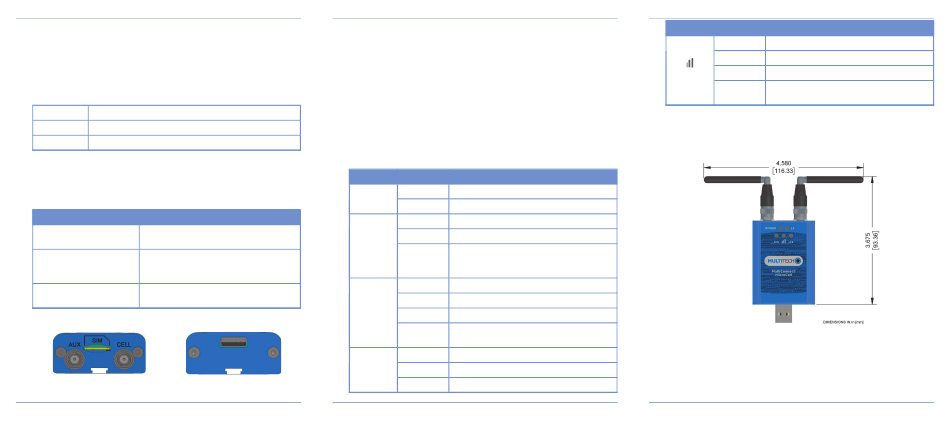

Side Panels
Quick Start
MultiTech Systems MultiConnect ® microCell Cellular Modem
Connectors
The device has the following connectors:
■
USB 1 USB connector,
■
SMA 2 female SMA connectors, labeled CELL and AUX
■
SIM 1 micro-SIM slot, between the SMA connectors
LEDs
Note:
■
For additional LED information, refer to the User Guide for
your model.
■
Slow is 1 second, on 1 second off.
■
Fast is 200 milliseconds, on 200 milliseconds off.
LED Status
Power On
Off
Link Status On
(LS)
Flash Slow Registered
Off
LTE On
Flash Fast
Flash Slow L4G1 only 2G
Off
SIM On
Flash Slow Other
Off
MultiTech Systems
Description
Device has power
Device does not have power
Radio is not registered
Radio is turned off, in PSM mode,
receiving a firmware update, or SIM is not
inserted.
LTE
L4G1 only 3G
SIM not inserted or radio technology
unknown
Ready
SIM not inserted
Quick Start
MultiConnect ® microCell Cellular Modem
LED Status Description
Signal On Good
Strength
Flash Fast Fair
Flash Slow Poor
Off Too low for communication or SIM not
inserted.
Dimensions
With antennas attached, the dimensions are as follows. Refer to the user
guide for more detailed dimensions.
