Kramer RC-308 Quick Start Manual

Scan for full manual
Step 1: Check what's in the box

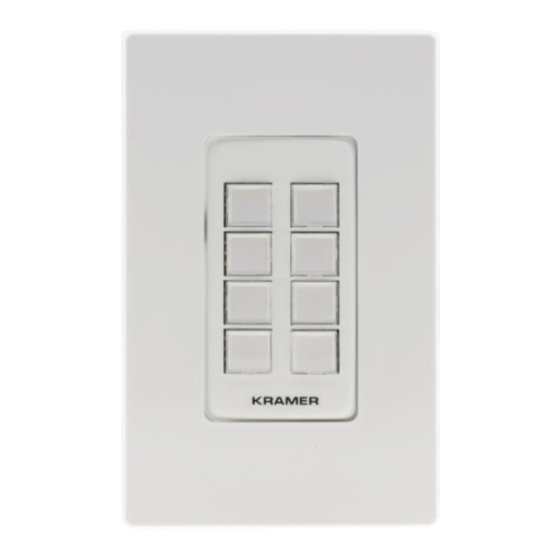

RC-308 Ethernet and K-NET Control
Keypad
1 Set of button label sheets
1 Power adapter and cord

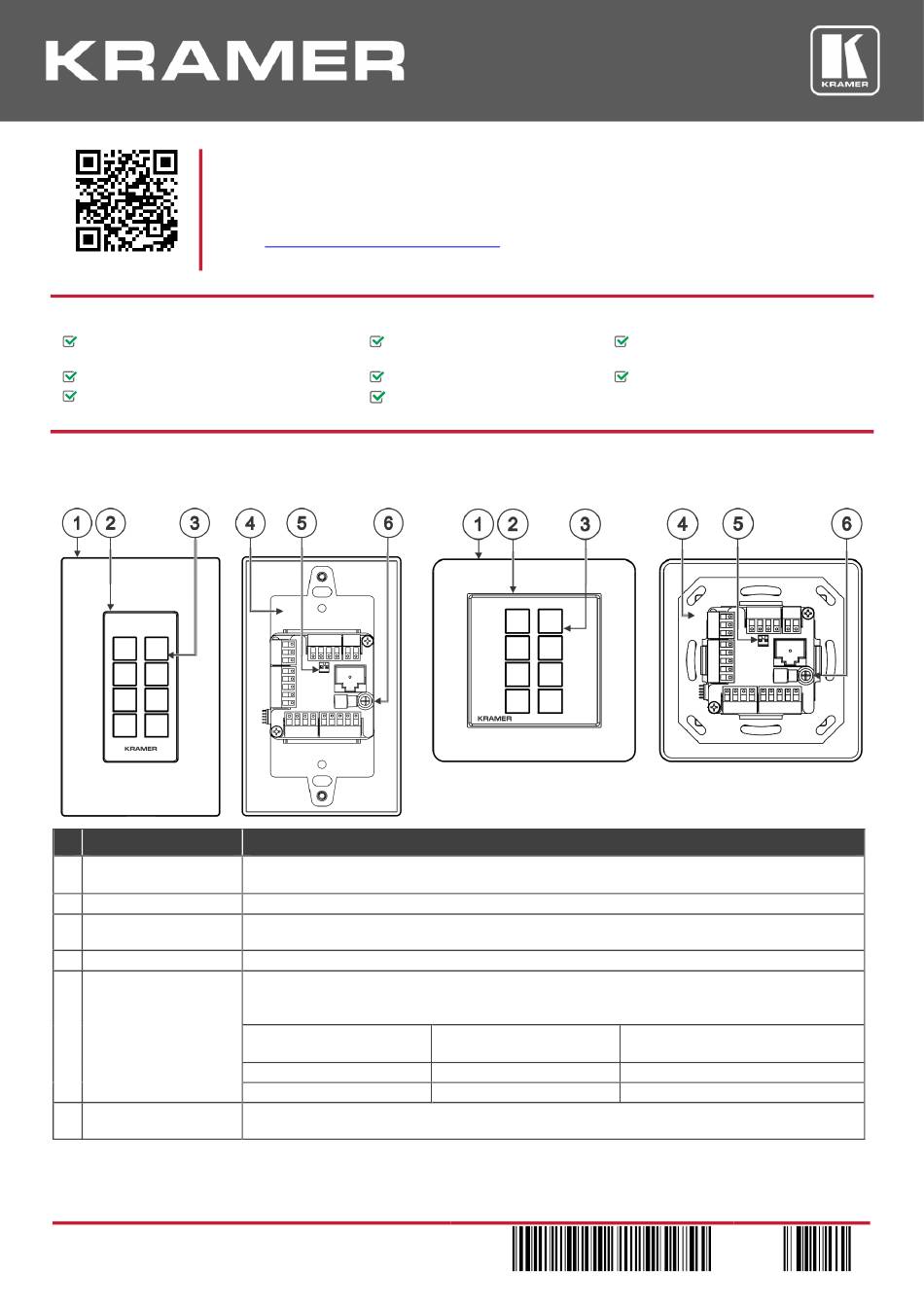

Step 2: Get to know your RC-308

US-D Version
Front
# Feature
1 Designed 1 Gang Wall
Frame
2 Button Faceplate
3 Configurable RGB
Backlit Buttons (8)
4 Mounting Bracket
5 DIP-Switches
6 Ring Tongue Terminal
Grounding Screw
RC-308 Quick Start
RC-308 Quick Start Guide
This guide helps you install and use your RC-308 for the first time.
Go to www.kramerav.com/downloads/RC-308
upgrades are available.
1 Button-cap remover
(tweezers)
1 Quick start guide
Installation accessories
Rear
Function
For fixing the RC-308 to the wall. DECORA™ design frames are included in US-D models.
DECORA™ is a registered trademark of Leviton Manufacturing Co., Inc.
Covers the button area after inserting the button labels.
Configured to control the room and A/V devices.
Remove button covers to insert button labels (included).
For fixing the frame to the in-wall box.
For K-NET: The last physical device on a K-NET bus must be terminated.
For RS-485: The first and the last units on the RS-485 line should be terminated. Other units
should remain unterminated.
Slide down (ON)
Slide up (OFF, default)
Connect to grounding wire (optional).
to download the latest user manual and check if firmware
EU/UK Version
Front
DIP-switch 1 (to the left)
K-NET Line Termination
For line termination.
To leave bus unterminated.
P/N: 2 9 0 0 - 3 0 1 2 0 1 QS
Frame (or frame set) and
faceplate
8 Button caps
Rear
DIP-switch 2 (to the right)
RS-485 Line Termination
For RS-485 line termination.
To leave RS-485 line unterminated.
Rev: 5
