Step 1: Check what's in the box

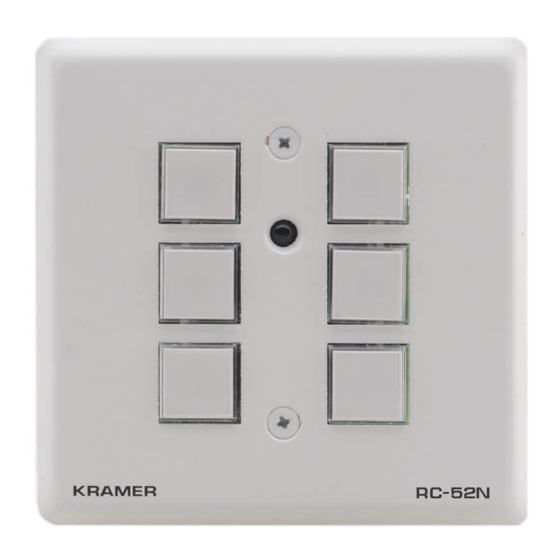

RC-52N 6–button Control Keypad
1 Quick start guide
Step 2: Get to know your RC-52N

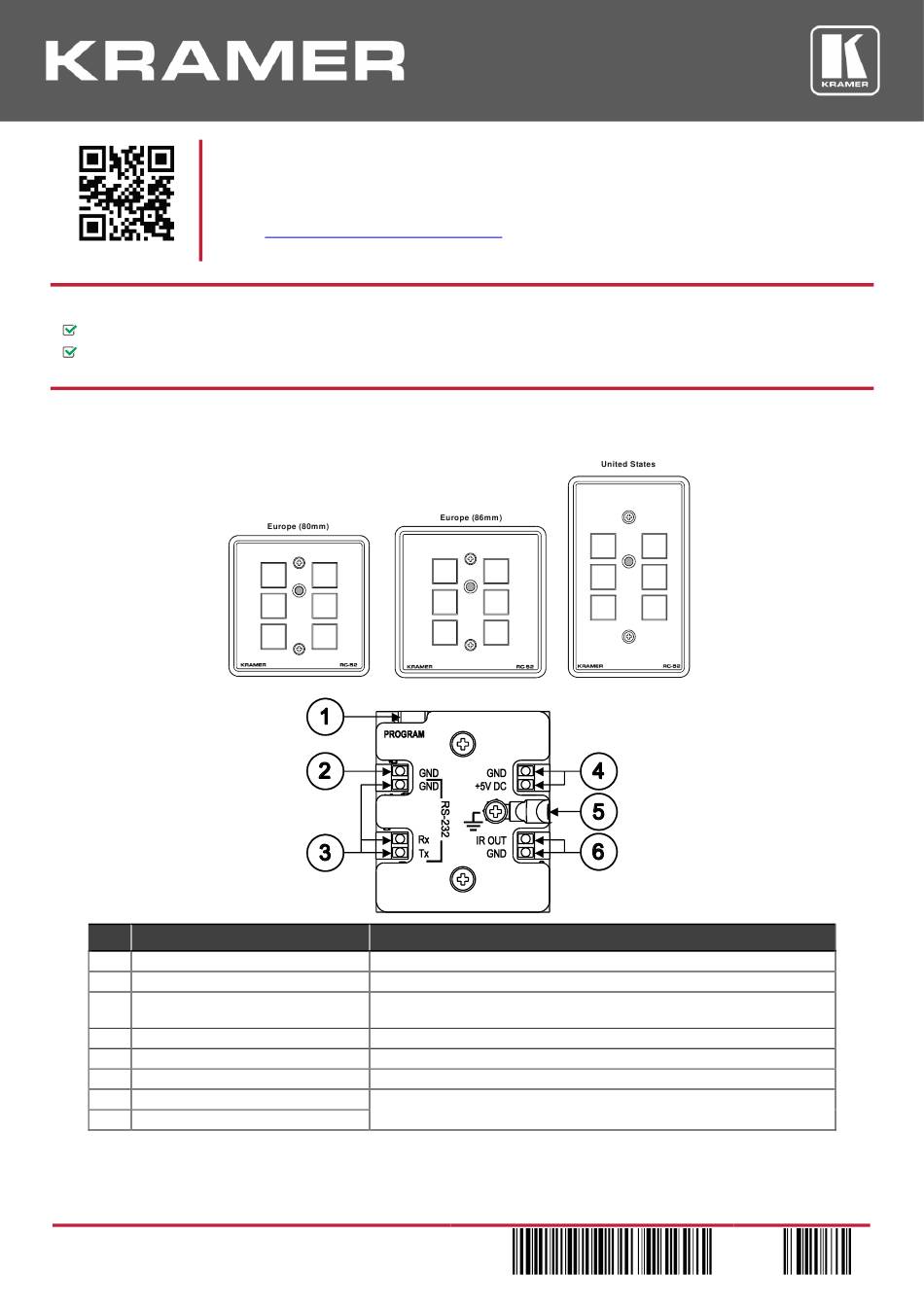

The RC-52N is available in three versions: 80mm and 86mm for Europe and a version for the United States:
#
Feature
1
Program USB Connector
2
GND PIN
3
RS-232 Terminal Block Connector
4
GND PIN
+5V PIN
5
Grounding Screw
6
IR OUT PIN
GND PIN
RC-52N Quick Start
RC-52N Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/RC-52N
upgrades are available.
Function
Connect to a computer for unit configuration
Not used
Connect to the RS-232 connector on the A/V equipment or a PC or other
Serial Controller
Connects (-) to the Ground
Connects (+) to the connector for powering the unit
Connect to grounding wire
Connect to an IR emitter cable
RC-52N
for the first time.
to download the latest user manual and check if firmware
P/N: 2 9 0 0 - 3 0 1 2 7 5 QS
Rev: 2
