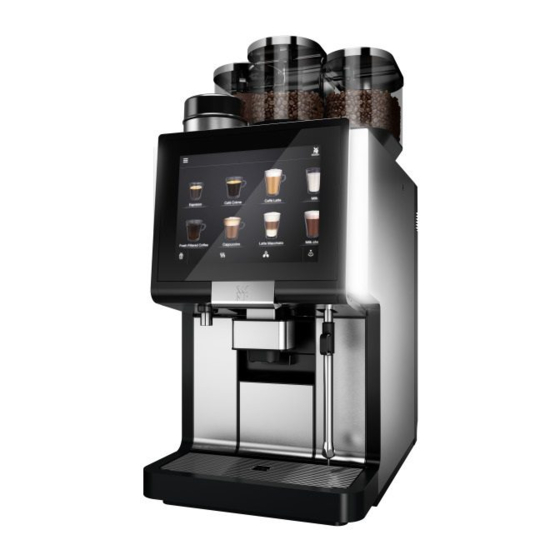

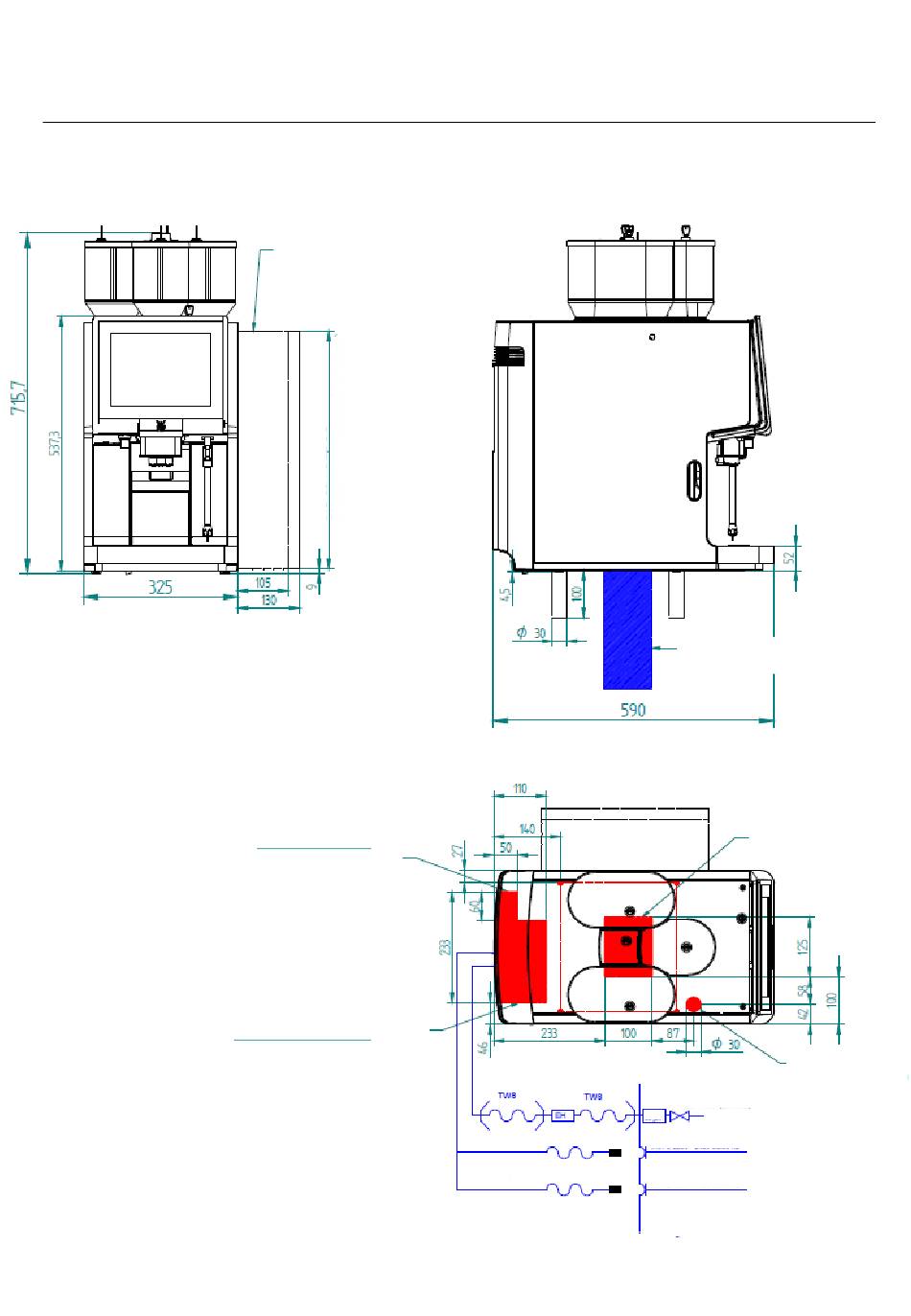

WMF 5000 S+ planning information – Easy Milk
http://www.wmf-kaffeemaschinen.de/fachplaner
WMF Group GmbH | Eberhardstraße 35 | 73312 Geislingen (Steige)
Optional: vending unit
Card reader width 130 mm
Coin Checker and coin changer 105 mm
Card reader and coin
changer height 500 mm
Coin Checker height 502
mm
Waste water connection
Optional:
Area for counter cut out
connection minimum 50x60
or Ø70
Water and power connection
Optional:
Area for counter cut out connection
3.01 – 3.51 kW minimum Ø50
8.41 – 9.96 kWminimum Ø70
On site
FIL 80
μm
1/N/PE 50/60Hz 220 – 240V
3x1,5 mm
2
, length
appr. 1.5 m
Or
3/N/PE 50/60Hz 380 – 415V
5x2.5 mm
2
, length
appr. 2.5 m
On site
µ
Optional feet
100 mm
Optional: pipe for grounds disposal
70 x 120 x 250 mm (extension with second pipe
possible)
Optional: cut-out for
grounds through counter
Optional: cut-out for under
counter cooler milk hose
TW10 3/8'' (angle valve)
3.01 – 3.51 kW
8.41 – 9.96 kW
