1455 Kleppe Lane Sparks, NV 89431-6467 (775) 359-4712 Fax (775) 359-7424
E-mail:
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
FULL-SCALE ROUGH-IN TEMPLATE (PN 0510001160) AVAILABLE UPON REQUEST.
CAUTION: Disconnect electrical power to outlet before installing or servicing.
NOTICE:
A. The electrical receptacle must have code-approved ground-fault circuit
interrupter (GFCI) protection for personnel.
B. Care should be taken not to damage refrigeration system lines or
electrical wires during installation.
C. Installation must conform to all applicable codes and standards.
D. Maintain 8 inches (20cm) separation from filter circuit board (antenna) at
all times.
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS
MODEL PLEASE CALL:
TECHNICAL SUPPORT:
FOR CUSTOMER SERVICE:
01/21 1210 Series Bottle Fillers
website:
haws@hawsco.com

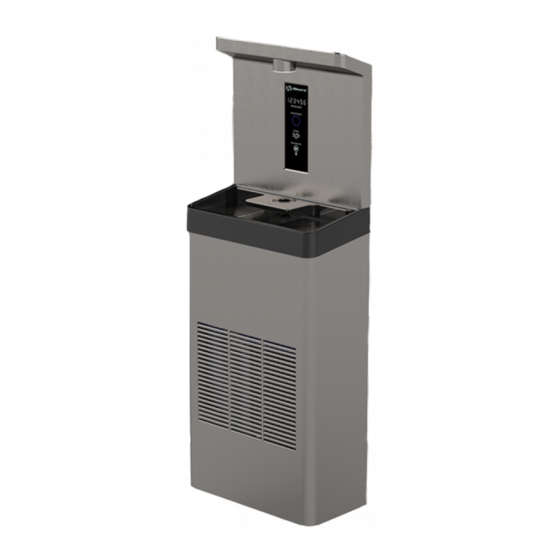

Bottle Filling Stations
MODELS 1210S AND 1210SF
SAFETY PRECAUTIONS
1-800-766-5612
1-888-640-4297
INSTALLATION, OPERATION
&
MAINTENANCE INSTRUCTIONS
www.hawsco.com
No. 0510001059 (1)
Page 1 of 17
Advertisement
Table of Contents
Related Manuals for Haws 1210S
Summary of Contents for Haws 1210S
- Page 1 No. 0510001059 (1) Bottle Filling Stations MODELS 1210S AND 1210SF NOTE TO INSTALLER: Please leave this information with the Maintenance Department. FULL-SCALE ROUGH-IN TEMPLATE (PN 0510001160) AVAILABLE UPON REQUEST. SAFETY PRECAUTIONS CAUTION: Disconnect electrical power to outlet before installing or servicing.
- Page 2 REQUIRED TOOLS (OR EQUIVALENT): □ Adjustable Wrench □ 1/4” Bit-holding screwdriver (7-3/4” max length) □ 1/4” Bit-holding screwdriver (4” max length, required for installs at Child ADA height only) □ #2 Phillips bit and a Flat-blade bit □ T20 Torx bit (supplied) □...
- Page 3 A. INSTALLATION OF LOWER UNIT (CHILLING SYSTEM) Verify that the electrical receptacle, water supply/valve, and drain locations are all in accordance with the installation drawing. NOTE: The installation drawing addresses new installations as well as retrofits. Consult the retrofit pages of the installation drawing if uncertain whether a retrofit will be possible in your case.
- Page 4 (indicated by value flashing) prior to returns to the main menu Programming the Haws 1210 Bottle Filler through the bottle filler user interface is generally intuitive. However, the following Programming Table can be used as a guide while programming the unit.
- Page 5 Programming Table Top-Level Arrows (cycle through…) Select Default Menu Backlight 100%, 75%, 50%, 25%, Percentage Value - programs brightness 100% Cancel – returns to main menu Cancel Sensor Range (rng) from 1 to 10, Range 1 to 10 - programs range Rng 5 Cancel –...
-
Page 6: Fuse Replacement
Remove the (2) screws holding the lower circuit board cover to the circuit board enclosure. Remove blown fuse and replace with a 5mm x 20mm, 10A, Fast Blow, 250VAC rated fuse. NOTE: Haws PN: 0210000754 Reinstall lower circuit board cover and skirt. Figure 6: Fuse Location 01/21 1210 Series Bottle Fillers... -
Page 7: General Operation
F. GENERAL OPERATION F.1. USING THE BOTTLE FILLER • Insert a bottle below the nozzle to activate the water flow. • Remove the bottle from below the nozzle to stop the water flow. F.2. FILTER LIFE (Filtered units only) • The filter is designed to last for a maximum of 1 year or 3,000 gallons, whichever comes first. -
Page 8: Troubleshooting
H. TROUBLESHOOTING TROUBLESHOOTING Note: If the suggested items in the checklist fail to solve the problem, contact Haws Technical Support at 1-800-766-5612. PROBLEM REPAIR CHECKLIST No water flow from bottle filler Check if filter has expired. Verify supply valve is open and there is water pressure to the unit. -
Page 9: Error Code
OPTIONAL BOTTLE FILLER – ERROR CODE TABLE TROUBLESHOOTING Note: If the suggested items in the checklist fail to solve the problem, contact Haws Technical Support at 1-800-766-5612. ERROR CODE REPAIR CHECKLIST E009 – COMPCY Clear error in programming mode and Compressor is cycling too frequently power cycle unit and check error to validate. - Page 10 Corporation – All Rights Reserved © 2021 Haws ® HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation. 1455 Kleppe Lane, Sparks, Nevada 89431 – 800.766.5612 – www.hawsco.com 01/21 1210 Series Bottle Fillers Page 10 of 17...
- Page 11 (e.g., if a replacement cooler is installed 8 months after installation of the original cooler, the replacement cooler will be warrantied for 4 months from installation.). Haws’ duty also includes costs of outbound freight (but not express freight) of the part or parts from the factory repair department, but only if the part or parts, and the purported defect or defects, are covered by this Limited Warranty, in Haws’...
- Page 12 APPROVED: DATE: SCALE: DRAWING TYPE: PARTS BREAKDOWN SIZE: A SHEET 1 OF 1 © 2021 Haws Corporation - All Rights Reserved. PAGE 12 OF 17 HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
-
Page 13: Typical Installation
CHK'D.: REVISION 07/25/18 0A.0 APPROVED: DATE: SCALE: 1:12 DRAWING TYPE: INSTALLATION SIZE: A SHEET 1 OF 5 © 2021 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation. -
Page 14: Wiring Harness Connection
CHK'D.: REVISION 07/25/18 0A.0 APPROVED: DATE: SCALE: 1:12 DRAWING TYPE: INSTALLATION SIZE: A SHEET 2 OF 5 © 2021 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation. - Page 15 DATE: CHK'D.: REVISION 07/25/18 0A.0 APPROVED: DATE: SCALE: DRAWING TYPE: INSTALLATION SIZE: A SHEET 3 OF 5 © 2021 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
- Page 16 DATE: CHK'D.: REVISION 07/25/18 0A.0 APPROVED: DATE: SCALE: DRAWING TYPE: INSTALLATION SIZE: A SHEET 4 OF 5 © 2021 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
-
Page 17: Maintenance
Y-STRAINER CLEANING REVISION 07/25/18 0A.0 APPROVED: DATE: SCALE: DRAWING TYPE: INSTALLATION SIZE: A SHEET 5 OF 5 © 2021 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
