1455 Kleppe Lane Sparks, NV 89431-6467 (775) 359-4712 Fax (775) 359-7424
E-mail:

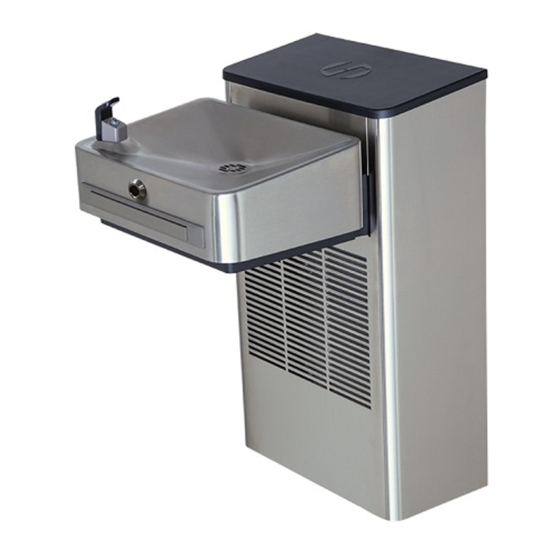

Electric Water Cooler and Bottle Filling Stations
MODELS 1201S / 1201SF / 1211S / 1211SF / 1202S / 1202SF / 1212S / 1212SF
1201SFH, 1202SFH, 1211SH, 1211SFH, 1212SH, 1212SFH
NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
FULL-SCALE ROUGH-IN TEMPLATE PN 0510001007 AVAILABLE UPON REQUEST.
CAUTION: Disconnect electrical power to outlet before installing or servicing.
NOTICE:
A. The electrical receptacle must have code-approved ground-fault circuit
interrupter (GFCI) protection for personnel.
B. Care should be taken not to damage refrigeration system lines or
electrical wires during installation.
C. Installation must conform to all applicable codes and standards.
SHOULD YOU EXPERIENCE DIFFICULTY WITH THE INSTALLATION OF THIS
MODEL PLEASE CALL:
TECHNICAL SUPPORT:
FOR CUSTOMER SERVICE:
09/19 1200 Series Electric Water Coolers
website:
haws@hawsco.com
SAFETY PRECAUTIONS
1-800-766-5612
1-888-640-4297
www.hawsco.com
No. 0510000866 (5)
Page 1 of 21
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Haws 1201SFH
Summary of Contents for Haws 1201SFH
- Page 1 Electric Water Cooler and Bottle Filling Stations MODELS 1201S / 1201SF / 1211S / 1211SF / 1202S / 1202SF / 1212S / 1212SF 1201SFH, 1202SFH, 1211SH, 1211SFH, 1212SH, 1212SFH NOTE TO INSTALLER: Please leave this information with the Maintenance Department.
- Page 2 REQUIRED TOOLS (OR EQUIVALENT): □ Adjustable Wrench □ 1/4” Bit-holding screwdriver (7-3/4” max length) □ 1/4” Bit-holding screwdriver (4” max length, required for installs at Child ADA height only) □ #2 Phillips bit and a Flat-blade bit □ T15, T20, T25 Torx bits (supplied when required) □...
- Page 3 A. INSTALLATION OF ELECTRIC WATER COOLER Verify that the electrical receptacle, water supply/valve, and drain locations are all in accordance with the installation drawing. NOTE: The installation drawing addresses new installations as well as retrofits. Consult the retrofit pages of the installation drawing if uncertain whether a retrofit will be possible in your case.
- Page 4 (indicated by value flashing) prior to returns to the main menu Programming the Haws 12 Electric Water Cooler through the bottle willer user interface is intuitive. However, the following Electric Water Cooler and Bottle Filler Programming Table can be used as a guide while programming the unit, which are retained during power outages.
- Page 5 Electric Water Cooler and Bottle Filler Programming Table Top-Level Arrows (cycle through…) Select Default Menu Backlight 100%, 75%, 50%, 25%, Percentage Value - programs brightness 100% Cancel – returns to main menu Cancel Sensor Range (rng) from 1 to 10, Range 1 to 10 - programs range Rng 5 Cancel –...
- Page 6 F. OPTIONAL DEACTIVATION OF THE BUBBLER(S) (BOTTLE FILLER MODELS ONLY) F.1. DEACTIVATION OF THE BUBBLER(S) Remove the clear plastic cover underneath the bowl on the right side or single unit by using a T20 torx bit. Locate the component on the circuit board that has eight numbered switches.
-
Page 7: Maintenance
NOTE: For dual units, the fuse is in the right-side unit. Remove blown fuse and replace with a 5mm x 20mm, 10A, Fast Blow, 250VAC rated fuse. NOTE: Haws PN: 0210000754 Replace lower bowl support cover with (4) screws and turn on power to the unit. -
Page 8: General Operation
H. GENERAL OPERATION H.1. USING THE BUBBLER • Press the push-button or place hand in front of sensor (on sensor equipped models) on the front of the water cooler to activate the bubbler flow. H.2. USING THE BOTTLE FILLER • Insert a bottle below the nozzle to activate the water flow. -
Page 9: Troubleshooting
J. TROUBLESHOOTING TROUBLESHOOTING Note: If the suggested items in the checklist fail to solve the problem, contact Haws Technical Support at 1-800-766-5612. PROBLEM REPAIR CHECKLIST No water flow from bubbler Check if filter has expired. Verify supply valve is open and there is water pressure to the cooler. -
Page 10: Error Code
OPTIONAL BOTTLE FILLER – ERROR CODE TABLE TROUBLESHOOTING Note: If the suggested items in the checklist fail to solve the problem, contact Haws Technical Support at 1-800-766-5612. ERROR CODE REPAIR CHECKLIST E009 – COMPCY Clear error in programming mode and Compressor is cycling too frequently power cycle unit and check error to validate. - Page 11 Corporation – All Rights Reserved © 2019 Haws ® HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation. 1455 Kleppe Lane, Sparks, Nevada 89431 – 800.766.5612 – www.hawsco.com 09/19 1200 Series Electric Water Coolers Page 11 of 21...
- Page 12 (e.g., if a replacement cooler is installed 8 months after installation of the original cooler, the replacement cooler will be warrantied for 4 months from installation.). Haws’ duty also includes costs of outbound freight (but not express freight) of the part or parts from the factory repair department, but only if the part or parts, and the purported defect or defects, are covered by this Limited Warranty, in Haws’...
- Page 13 DATE: 09/29/20 SCALE: DRAWING TYPE: PARTS BREAKDOWN SIZE: A SHEET 1 OF 2 © 2020 Haws Corporation - All Rights Reserved. PAGE 13 OF 21 HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
- Page 14 DATE: 09/29/20 SCALE: DRAWING TYPE: PARTS BREAKDOWN SIZE: A SHEET 2 OF 2 © 2020 Haws Corporation - All Rights Reserved. PAGE 14 OF 21 HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
- Page 15 CHK'D.: REVISION 07/25/18 APPROVED: DATE: 09/29/20 SCALE: 1:12 DRAWING TYPE: INSTALLATION SIZE: A SHEET 1 OF 7 © 2020 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
- Page 16 CHK'D.: REVISION 07/25/18 APPROVED: DATE: 09/29/20 SCALE: 1:12 DRAWING TYPE: INSTALLATION SIZE: A SHEET 2 OF 7 © 2020 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
-
Page 17: Wiring Harness Connection
CHK'D.: REVISION 07/25/18 APPROVED: DATE: 09/29/20 SCALE: 1:12 DRAWING TYPE: INSTALLATION SIZE: A SHEET 3 OF 7 © 2020 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation. - Page 18 CHK'D.: REVISION 07/25/18 APPROVED: DATE: 09/29/20 SCALE: 1:24 DRAWING TYPE: INSTALLATION SIZE: A SHEET 4 OF 7 © 2020 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
- Page 19 07/25/18 THE GIVEN DIMENSIONS). APPROVED: DATE: 09/29/20 SCALE: DRAWING TYPE: INSTALLATION SIZE: A SHEET 5 OF 7 © 2020 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
- Page 20 REVISION SUPPLY LOCATIONS 07/25/18 APPROVED: DATE: 09/29/20 SCALE: DRAWING TYPE: INSTALLATION SIZE: A SHEET 6 OF 7 © 2020 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
-
Page 21: Filter Replacement
REVISION Y-STRAINER CLEANING 07/25/18 APPROVED: DATE: 09/29/20 SCALE: DRAWING TYPE: INSTALLATION SIZE: A SHEET 7 OF 7 © 2020 Haws Corporation - All Rights Reserved. HAWS® and other trademarks used in these materials are the exclusive property of Haws Corporation.
