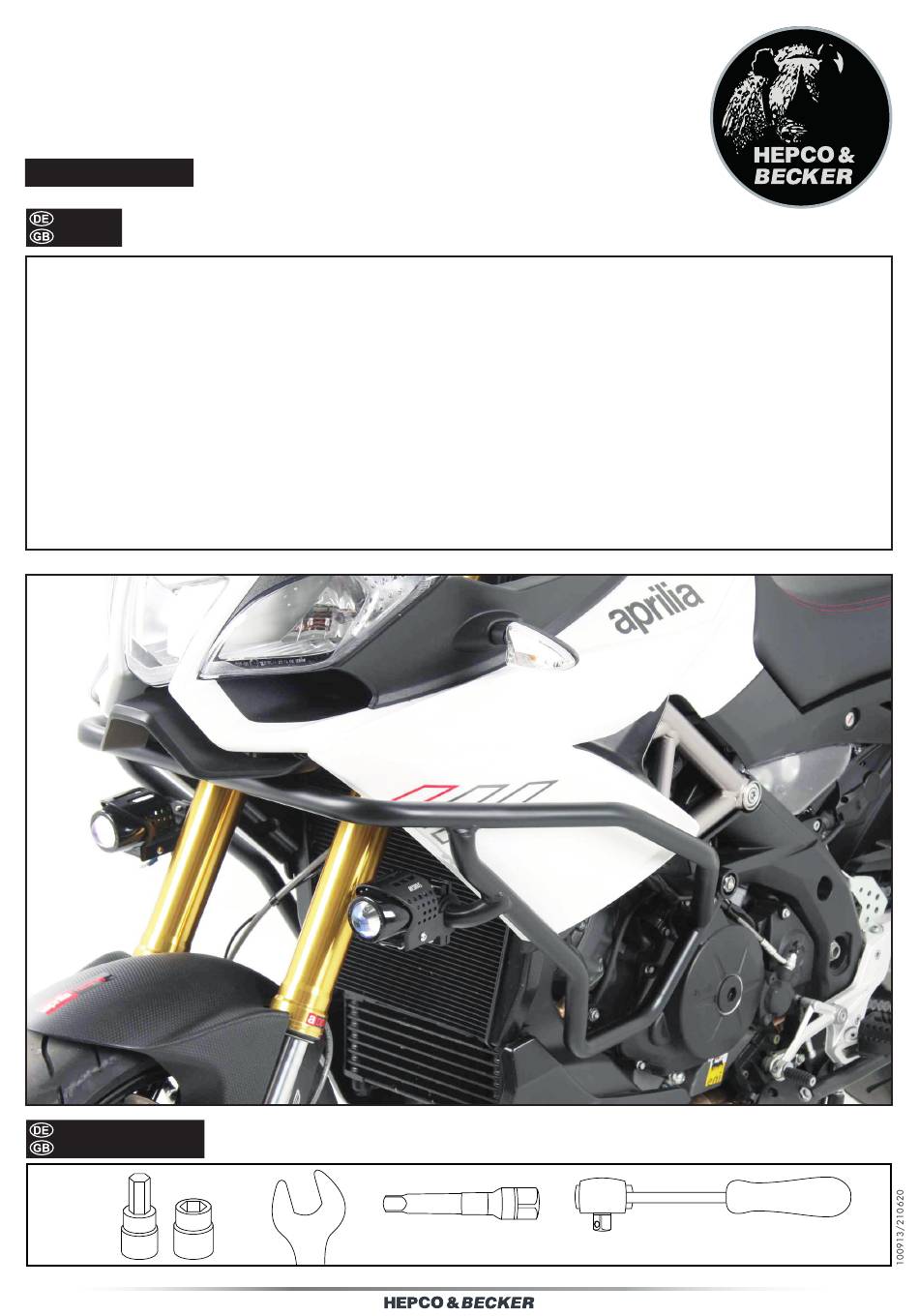

Motorschutzbügel/ Engine guard
APRILIA Caponord 1200
(2013 - 2016)
Artikel Nr.: / Item-no.:
7514
501
00 01
schwarz/black
INHALT
CONTENT
1x 700008303 Motorschutzbügel links
1x 700008304 Motorschutzbügel rechts
1x 700008305 Halteadapter
1x Schraubensatz:
1x Zylinderschraube M12x390
2x Zylinderschrauben M8x30
2x Zylinderschrauben M8x25
2x U-Scheiben Ø12,5
6x U-Scheiben Ø8,4
1x Selbstsichernde Mutter M12
2x Selbstsichernde Muttern M8
2x Aludistanzen Ø18xØ9x7mm
2x Kunststoffkappen für Rohr Ø32
BENÖTIGTE WERKZEUGE
TOOLS REQUIRED
Set
Verlängerung/extension
1x 700008303 engine guard left
1x 700008304 engine guard right
1x 700008305 adapter
1x Screw kit
1x Allen screw M12x390
2x Allen screw M8x30
2x Allen screw M8x25
2x Washer Ø12,5
6x Washer Ø8,4
1x Self lock nut M12
2x Self lock nut M8
2x Spacer alu Ø18xØ9x7mm
2x Plastic plugs for tube Ø32
Ratsche/Ratchet
1
Advertisement
Related Manuals for hepco & becker 5017514 00 01
Summary of Contents for hepco & becker 5017514 00 01
- Page 1 Motorschutzbügel/ Engine guard APRILIA Caponord 1200 (2013 - 2016) Artikel Nr.: / Item-no.: 7514 00 01 schwarz/black INHALT CONTENT 1x 700008303 Motorschutzbügel links 1x 700008303 engine guard left 1x 700008304 Motorschutzbügel rechts 1x 700008304 engine guard right 1x 700008305 Halteadapter 1x 700008305 adapter 1x Schraubensatz: 1x Screw kit...
- Page 2 M8 x 30 and washers ø8,4. Add alu spacer Ø18xØ9x7mm between adapter and frame. Tighten the adapter bolting and mount the splash guard and the horn again. Note: Original spacers remain under the alu spacers. 5017514 00 01...
- Page 3 Use allen screws M8x25 with Ø8,4. Secure with washers Ø8,4 and self lock nuts M8. NOTE: Position of the engine guard ist in front of the adapter (see picture). Mount the plastic plugs left and right at the rear fi xing point. 5017514 00 01...
- Page 4 Weiteres Zubehör auf unsere Homepage. More accessories: see our homepage. Hepco & Becker GmbH Tel.: +49 (0)6331 - 1453 - 100 An der Steinmauer 6 Fax: +49 (0)6331 - 1453 - 120 D-66955 Pirmasens eMail: vertrieb@hepco-becker.de Germany www.hepco-becker.de 5017514 00 01...
