SMC Networks VZ400 Series Quick Start Manual

3 Port Solenoid Valve
Metal Seal
Series
Large flow capacity
Low power consumption:
1.8 W (75 mA, 24 VDC)
Plug connector
One-touch wiring of plug
connectors
Common pilot exhaust sub-
plate mounted and manifold

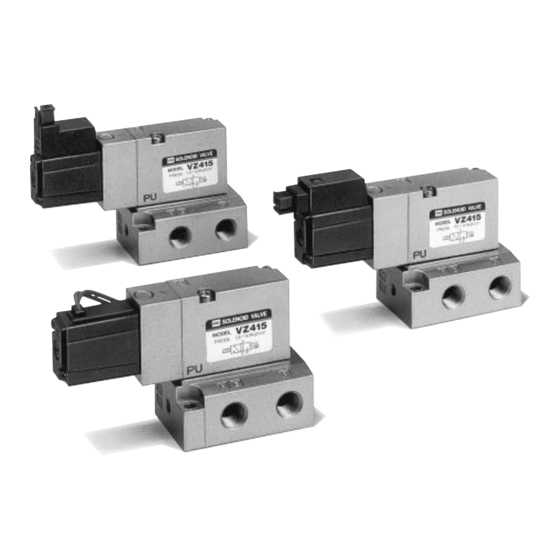

Body ported
Base mounted
JIS Symbol
4-15-10
VZ400
Model
Piping
Body ported
Base mounted
∗ Body ported type provides both individual exhaust and common exhaust.
Specifications
Fluid
Maximum operating pressure
Minimum operating pressure
Proof pressure
Ambient and fluid temperature
Lubrication
Enclosure
Manual override
2
Shock/Vibration resistance (m/s
Type
Specifications
Port size
3
C[dm /(s·bar)]
1 2
b
(P A)
Cv
2
C[dm /(s·bar)]
2 3
b
(A R)
Cv
(1)
Max. operating frequency (c/s) (AC/DC)
(2)
Response time (ms) (AC/DC)
Weight (kg) (3)
Note 1) Minimum operating frequency: As per JIS B 8373 (Once in 30 days)
Note 2) Based on JIS B 8375-1981 (Supply pressure; 0.5 MPa; without surge voltage suppressor)
Note 3) Value for grommet (Sub-plate weight: 0.055 kg)
Note 4) "Note 1)" and "Note 2)" are with controlled clean air.
Note 5) Based on JIS C 0920
Note 6) Impact resistance: No malfunction occurred when it is tested with a drop tester in the axial
direction and at the right angles to the main valve and armature in both
energized and de-energized states every once for each condition. (Values
at the initial period)
Vibration resistance: No malfunction occurred in a one-sweep test between 45 and 2000 Hz.
Test was performed at both energized and de-energized states in the
axial direction and at the right angles to the main valve and armature.
(Values at the initial period)
Solenoid Specifications
Electrical entry
AC 50/60 Hz
Coil rated voltage (V)
Allowable voltage fluctuation (%)
Coil insulation type
Temperature rise (°C)
Power consumption (W)
Apparent power (VA) AC
Surge voltage suppressor
(1)
Indicator light
Note 1) In the case of grommet type, it is equipped on the middle of lead wire.
Note 2) Based on JIS C 4003
Option
Description
Foot bracket (With screw)
(1)
R 1/8
Silencer
R 1/4
Note 1) For body ported type Note 2) For sub-base mounted type
Type of Choice of pilot valve exhaust
actuation
Individual exhaust
N.C. VZ412
N.O. VZ422
N.C. —
N.O. —
Air/Inert gas
1.0 MPa
0.15 MPa
1.5 MPa
–10 to 50°C
Not required
Dustproof
Push type (Safety style), Locking type (Tool required), Locking type (Manual)
) 150/50
Body ported
N.C. valve N.O. valve
Rc 1/8
2.0
2.0
0.14
0.17
0.49
0.49
2.2
2.2
0.17
0.17
0.53
0.53
15
21/21 or less
0.125
Grommet (G), Plug connector (L), Plug connector (M), DIN terminal (D)
100, 200, 24
DC
24, 6
–15 to +10% of rated voltage
Class E or equivalent (120°C)
1.8 (With indicator light: 2.1)
DC
Inrush
4.5/50 Hz, 4.2/60 Hz
Holding
3.5/50 Hz, 3/60 Hz
DC: Diode, AC: ZNR
DC: LED (Red), AC: Neon bulb
Part no.
VZ4000-22A
AN110-01 Noise reduction: 21 dB (
(2) Noise reduction: 25 dB (
AN203-02
Common exhaust
VZ412 ∗
VZ422 ∗
VZ415
VZ425
(5)
(6)
Base mounted (With sub-plate)
N.C. valve N.O. valve
Rc 1/8, 1/4
2.4 2.4
0.19 0.19
0.57 0.57
2.2 1.9
0.11 0.32
0.49 0.45
15
21/21 or less
0.250
∗ Option
∗ ∗ ∗ ∗
, 48 , 110 , 220
∗ ∗ ∗
, 12 , 48
(2)
45 or less
Note
For VZ4„2
l
ø
13 x 38 )
l
ø
16 x 36 )
