Checking Probe
Connection
If the meter is giving an out-of-range (OR) error mes-
sage, it may be that the probe has come unplugged
from the meter. The procedure for checking this is
outlined below.
1. Remove the black nut from the strain-relief
where the cable feeds into the meter.
2. Remove the tan nut on the cable end of the me-
ter.
3. Ensure that the probe cable plug is firmly con-
nected to the socket in the meter.
4. Push the assembly onto the meter housing so the
metal pegs on the assembly line up with the
notches on the inner diameter of the meter open-
ing. Be sure that the small o-ring sits at the base
of the large plastic assembly.
5. While holding the assembly in place hand-tighten
the nut to the strain relief
6. Connect and tighten the tan nut to the meter
housing.

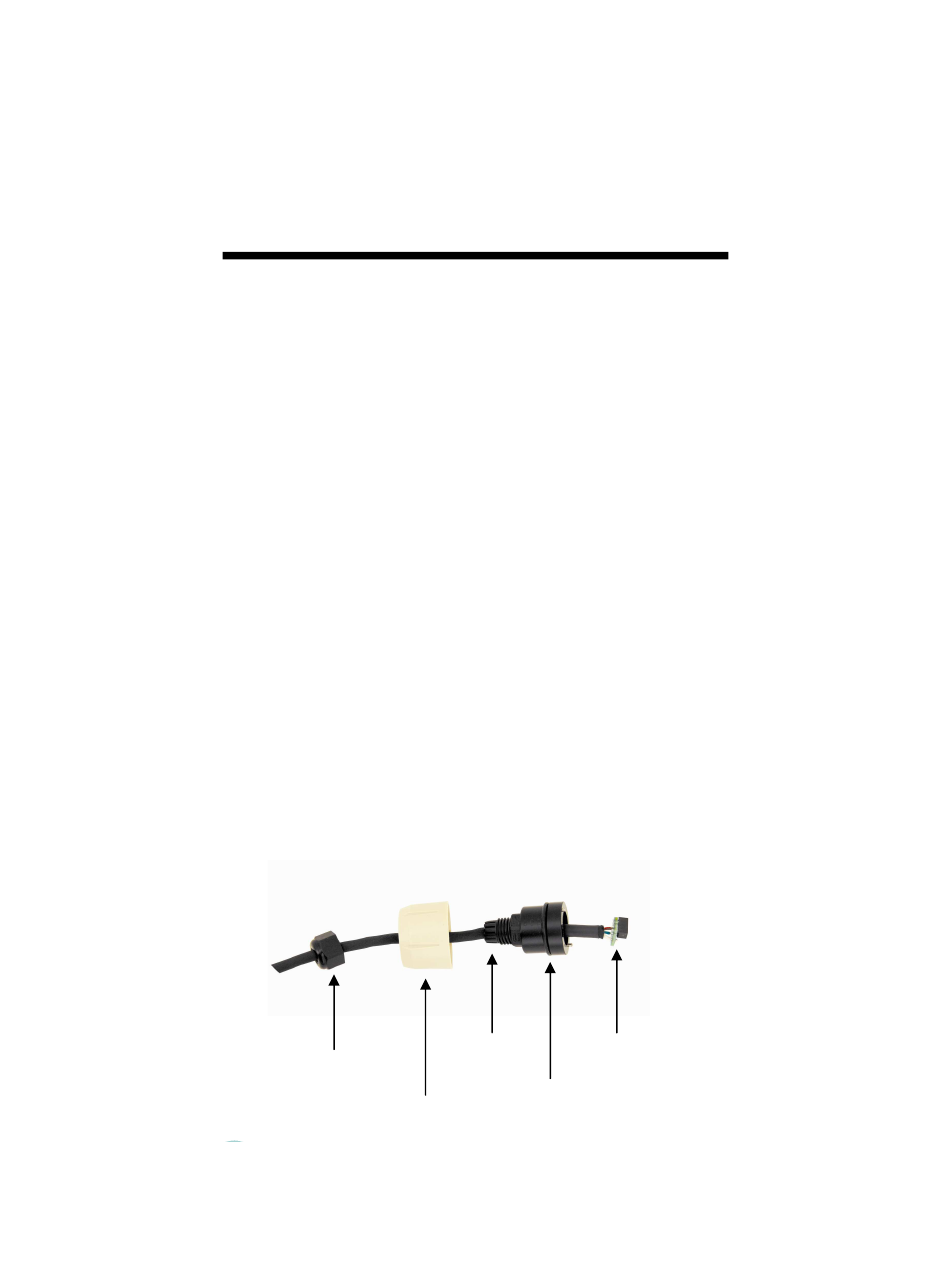

black nut
16
Probe plug
Strain relief
Larger plastic
tan nut
assembly/O-ring
