QUICK START PROCEDURE
DC2026C LINDUINO ONE
PRE-PROGRAMMED AND
INSTALLED UNDER DC2218A
USB CABLE CONNECTION
UNDER PCB FOR GUI
R14 POTENTIOMETER
MANUAL INTERACTION
WITH S1 PATTERNS 0-6
S3 PUSH TO START
WHEN RED LED D32
IS FLASHING
S2 RESET BUTTON
TO RESET MICRO
S1 PATTERN SELECT
ROTARY SWITCH
OKAY TO NOT CONNECT
THESE TURRETS

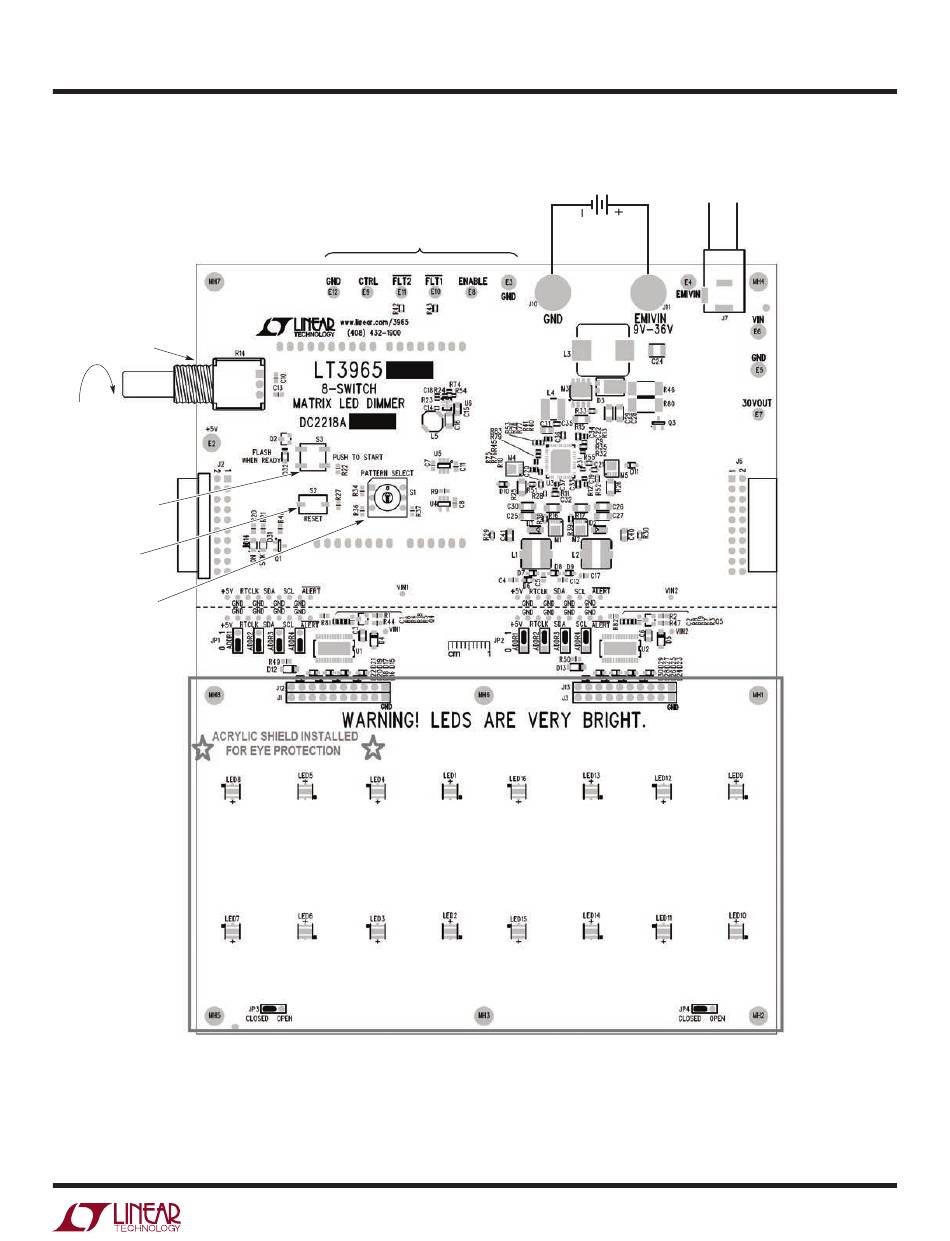

Figure 2. DC2218A Top Silkscreen and Component Reference Drawing
DEMO MANUAL DC2218A
V
IN
OR
BANANA JACKS
12V DC
2.1mm INSIDE
DIAMETER
BARREL JACK J7
dc2218af
5
