4.0

POWERING THE BOARD

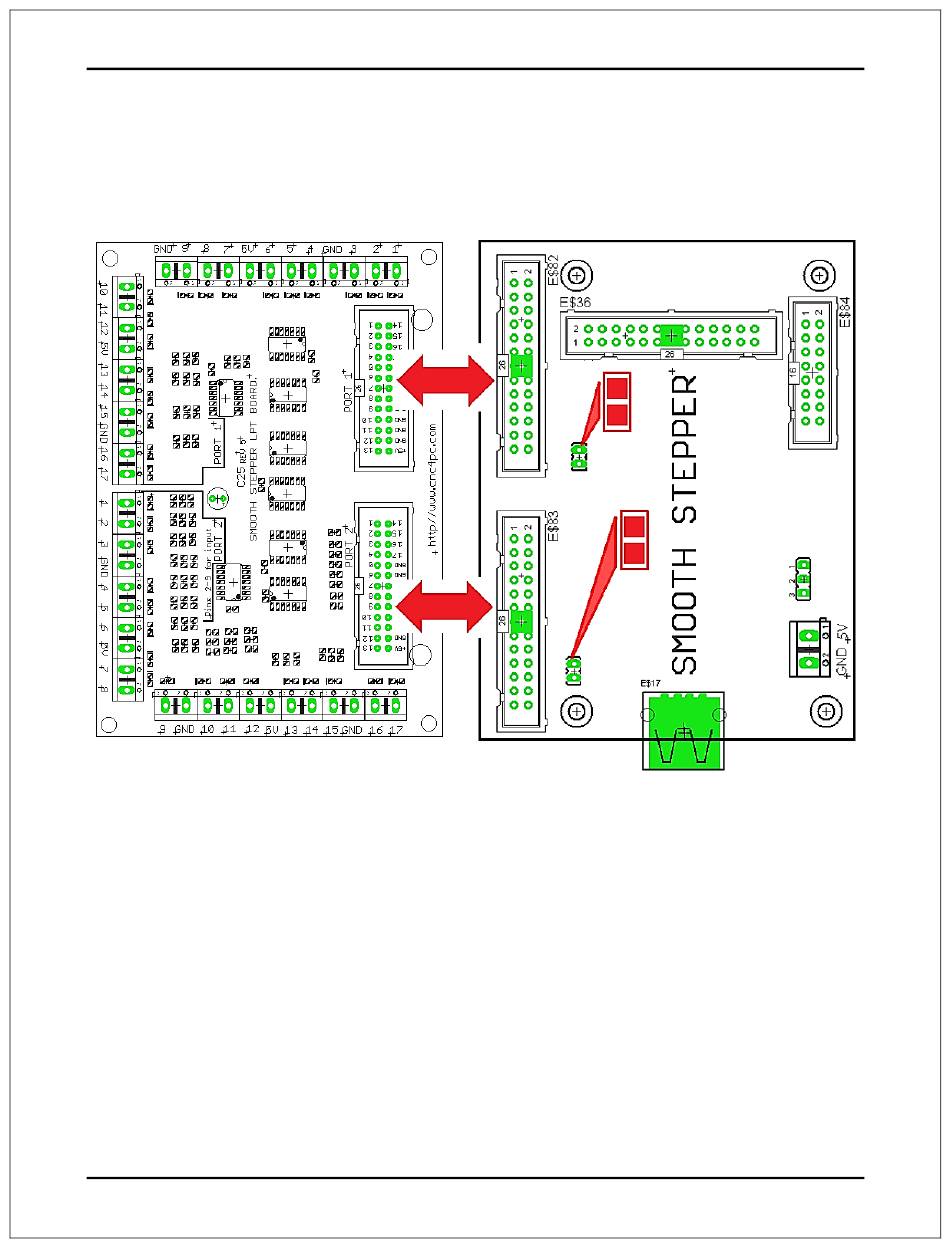

This board is designed to get its power from the Smooth Stepper. The Smooth Stepper
has jumpers next to the IDC26 connector on which the C25 connects to that need to be
closed in order to send +5vdc to pin 26 of each IDC26 connector to power the C25.
5.0

WIRING DIAGRAMS

Different kind of sensors and switches can be connected to input board, but this board
supports only TTL signal. If you need to connect devices that generate 12V or 24VDC
signals, in some cases it is necessary to add external resistors.
