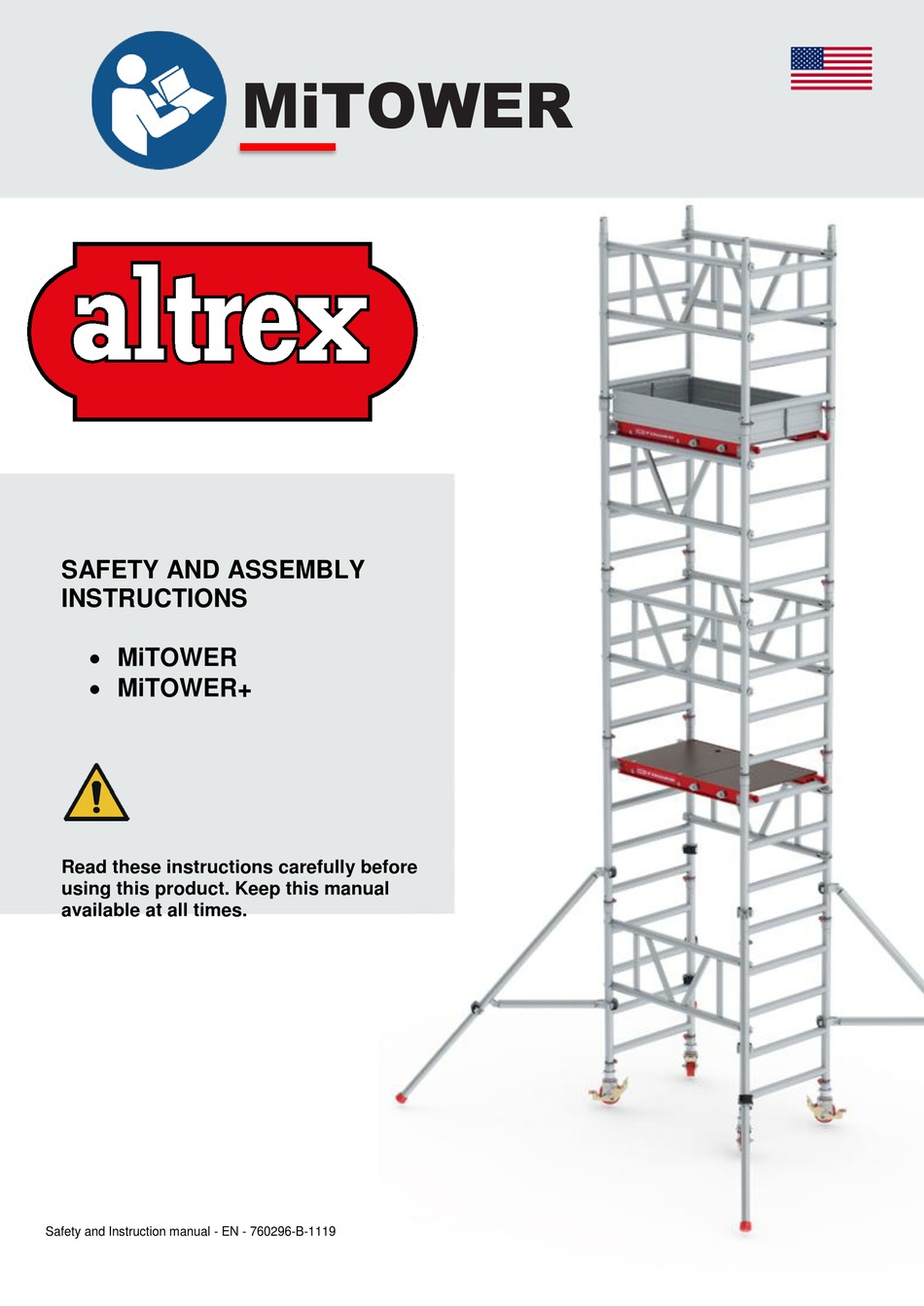

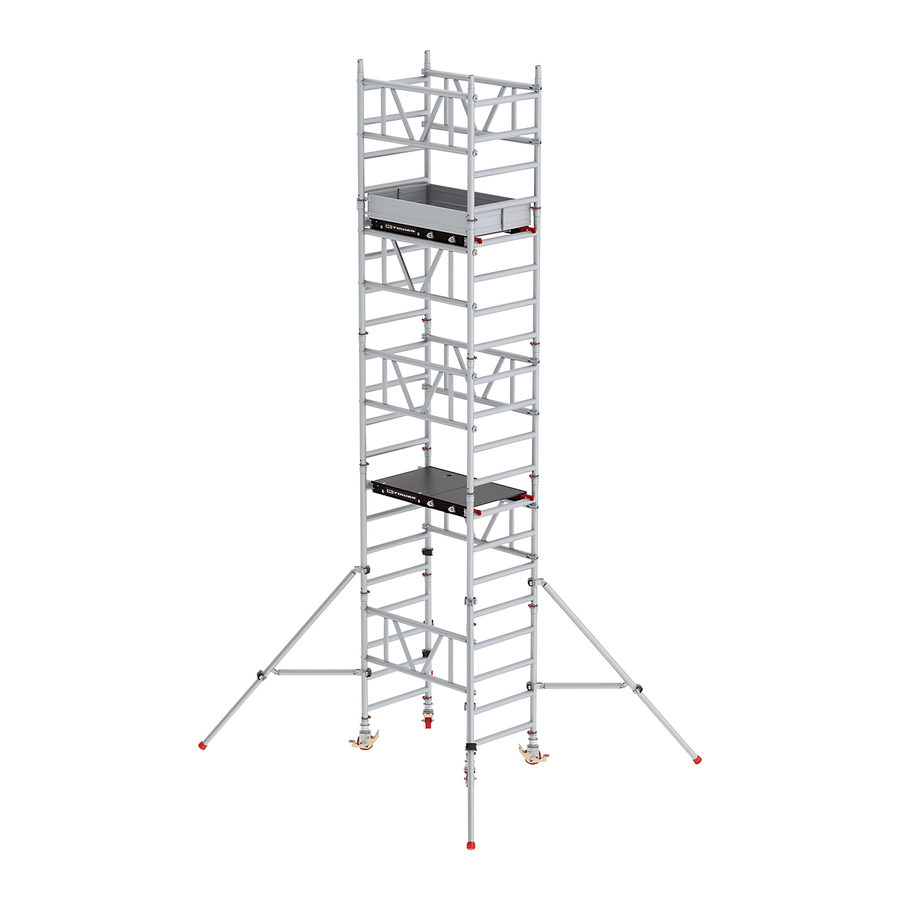

- Page 1 MiTOWER SAFETY AND ASSEMBLY INSTRUCTIONS MiTOWER MiTOWER+ Read these instructions carefully before using this product. Keep this manual available at all times. Safety and Instruction manual - EN - 760296-B-1119...
- Page 2 www.altrex.com...
- Page 3 Not following the instructions contained in this manual can easily result in serious accidents, serious injury or death. Altrex cannot be held liable for any loss resulting from the assembly or use of an Altrex scaffold that is not in compliance with the manual.
-
Page 4: Safety Instructions
Do not use damaged or improperly functioning scaffold parts. Do not paint scaffold parts. Only use components supplied by Altrex with this scaffold. The total combined weight of each worker and all materials should not exceed the rated working load. Do not overload. -
Page 5: Mounting Instructions
Check that the scaffold can be used safely and that it is suitable for the intended purpose. 7. Assembling the MiTOWER / MiTOWER+ Assemble the components on the basis of the steps that are shown in appendices T3 and T4. Make all connections as indicated in appendix T2. - Page 6 2. CAUTION: Not every stair / staircase is suitable to use the MiTOWER Stairs. It is very important that all four feet can be positioned at least 4 inch from the edge of the steps. [T2: F19-F-20]. Do not use the MiTOWER Stairs if that is not possible.
- Page 7 3. Check all moving parts for correct functioning and check that these are not filthy. 4. Check all parts for damage. Damaged, worn-out or incorrect parts may not be used. Replace these parts only with original Altrex parts. Any scaffold components damaged or weakened from any cause shall be immediately removed from service and shall not be used until repairs have been completed and approved by a qualified person.
- Page 8 15. MiTOWER Trolley www.altrex.com...
- Page 9 Annex T1. Parts T2. Mounting instructions T3. Assembly steps even working heights MiTOWER / MiTOWER+ T4. Assembly steps odd working heights MiTOWER / MiTOWER+ T5. Configurations MiTOWER T6. Configurations MiTOWER+ T7. Assembly steps MiTOWER STAIRS T8. Configuration MiTOWER STAIRS www.altrex.com...
- Page 10 Fiber-Deck ® L= 3’8” (optional) 15.2 L= 5‘2“ (optional) 19.9 L= 4‘4“ 513021 Stabilizer L= 4‘11“ 513031 11.3 W x L= 2’6” x 3’8” 305581 11.9 Toe board set W x L= 2’6” x 5’2” 305582 15.2 www.altrex.com www.altrex.com...
- Page 11 W= 2’6”” (SX)301211 Walkthrough frame with gate W= 2’6” (SX)301207 Walkthrough frame 301205 W=2’6” Frame 2 rungs 726227 Rubber foot 303733 Diagonal brace 309106 Wall support and anchorage tube Strap 713203 www.altrex.com...
- Page 12 T2. Mounting instructions 50° 90° 50° 50° F-10 F-11 F-12 STOP F-13 F-14 F-15 www.altrex.com www.altrex.com...
- Page 13 F-16 F-17 F-18 F-19 F-20 F-21 F-22 F-23 F-24 F-24 F-25 F-26 132 LBf F-27 www.altrex.com www.altrex.com...
- Page 14 T3. Assembly steps even working heights Working height (WH) 20’4” MiTOWER 13’9” 20’4” 26’11” MiTOWER+ 13’9” www.altrex.com...
- Page 15 T4. Assembly steps odd working heights Working height (WH) 10’6” 17’1” MiTOWER 10’6” 17’1” 23’7” MiTOWER+ www.altrex.com www.altrex.com...
- Page 16 T5. Configurations MiTOWER 7’3” 10’6” 13’9” 13’9” 17’1” 20’4” MiTOWER / MiTOWER+ 7’3” 10’6” 13’9” 13’9“ 17’1” 20’4” www.altrex.com...
- Page 17 T6. Configurations MiTOWER+ 7’3” 10’6” 13’9” 17’1” 20’4” 13’9” 17’1” 20’4” 23’7” 26’11” MiTOWER+ 17’1” 20’4” 23’7” 26’11” www.altrex.com www.altrex.com...
- Page 18 T7. Assembly steps MiTOWER STAIRS www.altrex.com www.altrex.com...
- Page 19 T8. Configuration MiTOWER STAIRS Additional parts, needed to assemble MiTOWER STAIRS www.altrex.com...
- Page 20 Altrex B.V. Mindenstraat 7 8028 PK Zwolle The Netherlands +31(0)38 455 77 00 info@altrex.com www.altrex.com Copyright Altrex B.V. © 2019 www.altrex.com www.altrex.com www.altrex.com...
