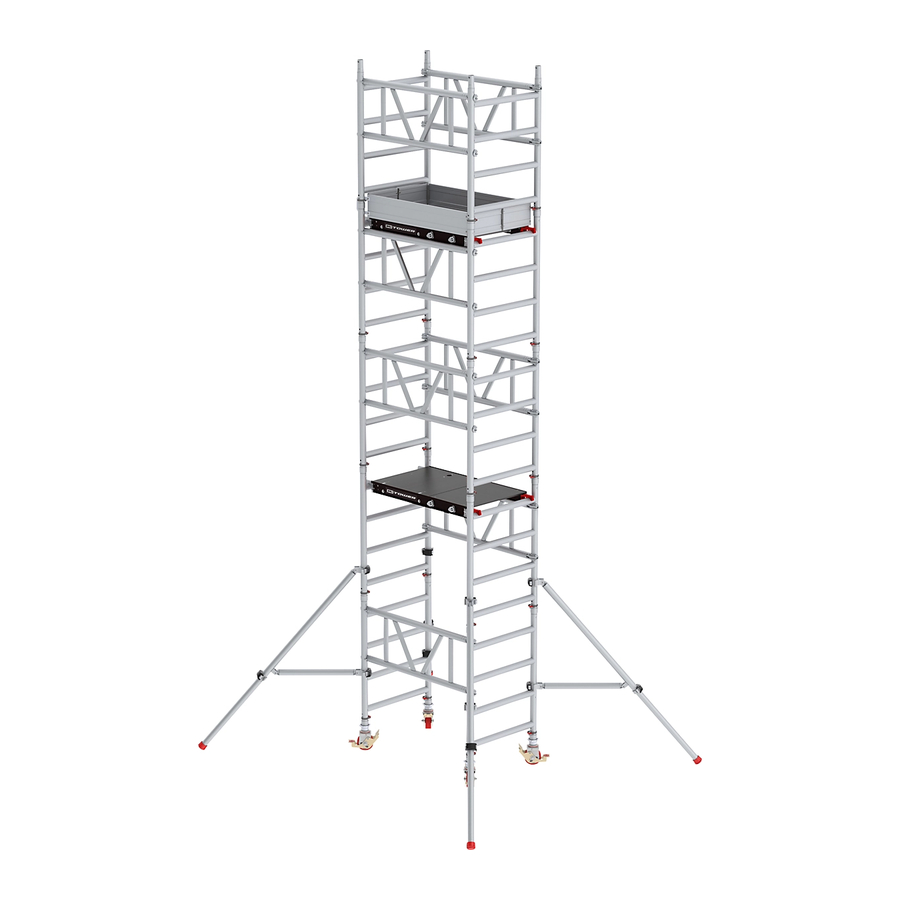

MiTOWER
Instruction manual EN1298 – IM – NL x EN x FR x DE x ES x PT x IT x PL x CS x SK
760293-B-0120

Advertisement

loading
Need help?

Need help?

Do you have a question about the MiTOWER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Altrex MiTOWER

Summary of Contents for Altrex MiTOWER

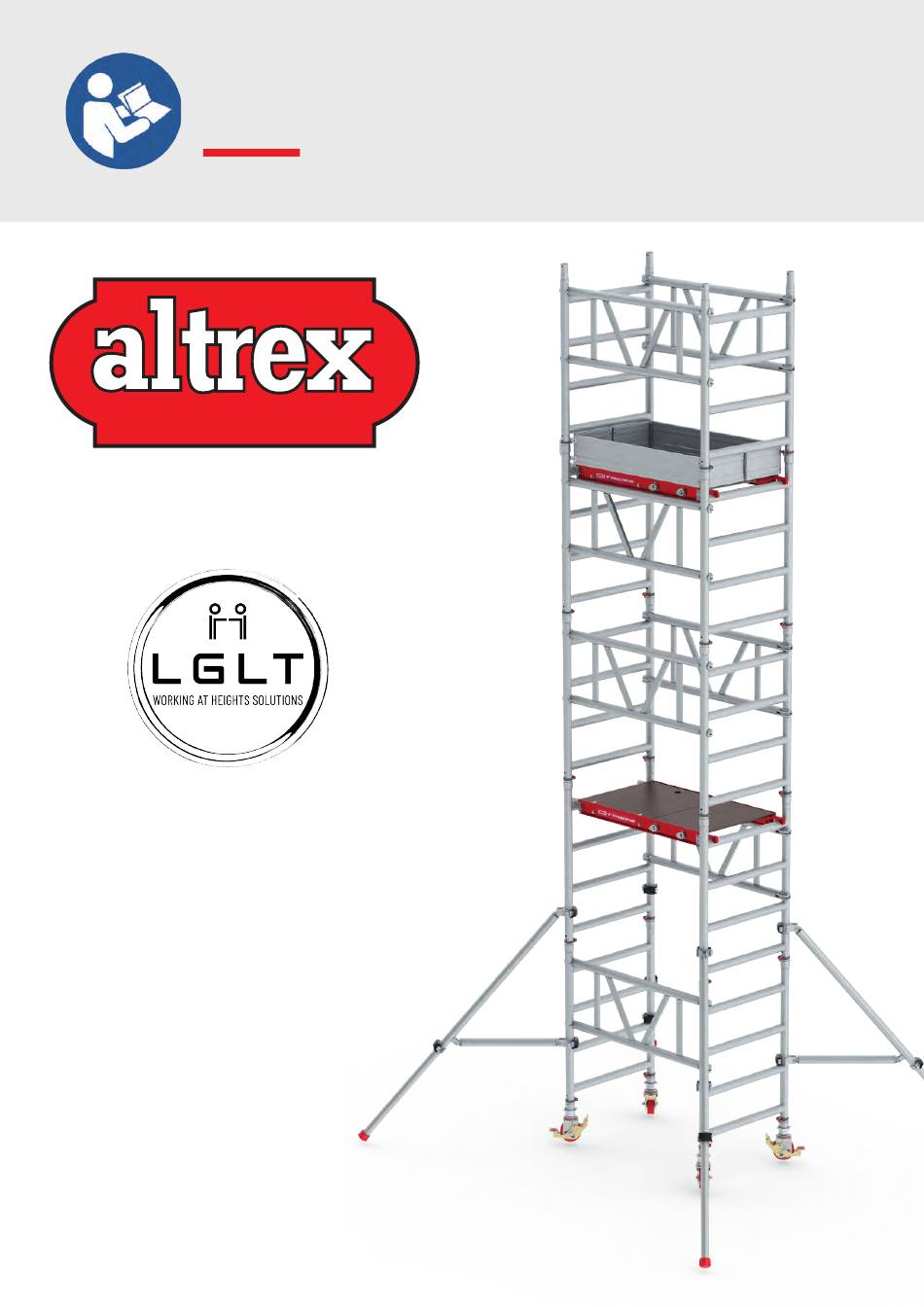

  • Page 1 MiTOWER Instruction manual EN1298 – IM – NL x EN x FR x DE x ES x PT x IT x PL x CS x SK 760293-B-0120...
  • Page 2 MiTOWER / MiTOWER+ MiTOWER STAIRS / MiTOWER+ STAIRS MiTOWER+ STAIRS www.lglt.co.za www.altrex.com www.altrex.com...

  • Page 3: Safety Instructions

    4. Parts T5. Configurations MiTOWER 5. Mounting instructions T6. Configurations MiTOWER+ 6. Check before use 7. Assembling the MiTOWER / MiTOWER+ T7. Assembly steps MiTOWER STAIRS T8. Configurations MiTOWER STAIRS 8. Assembling the MiTOWER STAIRS 9. Ballast 10. Moving the rolling tower 11. Disassembly of the rolling tower 12. Inspection, Care and Maintenance 13. Warranty conditions 14. Abbreviations and logos 1. Introduction This manual applies exclusively to folding and rolling tower configurations (hereinafter: ‘the scaffold) as described in this assembly & user manual (hereinafter: ‘the manual’). Prior to starting to assemble the tower, you should carefully read this ma-...

  • Page 4: Mounting Instructions

    6. Check before use Check that the rolling tower is horizontal (check using a spirit level) Check that the rolling tower is assembled in accordance with this manual and in conformity with the configuration and ballast table. Check that the environmental factors, such as swinging doors ,awnings that operate automatically, aboveground electrical cables, traffic and/or passers-by, etc., do not lead to dangerous situations. Check that the rolling tower can be used safely and that it is suitable for the intended purpose. 7. Assembling the MiTOWER / MiTOWER+ Assemble the components on the basis of the steps that are shown in appendices T3 and T4. Make all connections as indicated in appendix T2. See the table below for reference to the appendix with the configuration table and composition per type of rolling tower. MiTOWER/MiTOWER+ Annex MiTOWER/MiTOWER+...
  • Page 5 1. Climb down and on the platform’s hanging mechanism hang: 2x a double guardrail brace (T1:C) and (only if the required working height has been reached) a toe board set (T1:F). 2. Climb through the hatch and sit on the platform with your legs through the hatch. 3. Mount 2x a double guardrail brace (T1: C) with the upper claw on top of the 4th rung of the frames [T2: F3]. 4. Only once the required working height has been reached: install the toe board set (T1:F). 5. For higher working heights, repeat steps 3 and 4. 9. Ballast Ballast is not required for indoor and outdoor usage up to a maximum wind speed of 7.9 m/s (max. 4 Beaufort*). Please contact Altrex with regard to use in higher wind speeds. 10. Moving the rolling tower The rolling tower may only be moved while observing the following conditions: Before moving the rolling tower, the height has to be reduced to a maximum of 6.2 metres. When the rolling tower is moved, persons and/or materials may not remain on the rolling tower. Beforehand, checks should be made that the environmental factors, such as swinging doors, canopies, pits, automatically functioning awnings, aboveground electrical cables, traffic and/or passers-by, etc. do not lead to dangerous situations while the rolling tower is moved.

  • Page 6: Warranty Conditions

    12. Inspection, Care and Maintenance Rolling tower parts must be handled and transported with care in order to avoid damage. Storage should be organised in such a way that only undamaged parts, in the correct amounts, are available for assembly of the rolling tower. Check all moving parts for correct functioning and check that these are not filthy. Check all parts for damage. Damaged, worn-out or incorrect parts may not be used. Replace these parts only with original Altrex parts. To prevent accidents, these parts must be mounted in the same way as the part that is replaced. Mounting (fastening) and/or repair are at your own expense and risk. Altrex shall not be liable for damage resulting from erroneous mounting and/or repair. Rolling towers for professional use must be inspected periodically by an expert. Production code (YY-WW) can be found: braces, on the tubes; frames, on vertical tube; platforms, on inside of beams; stabilisers, on outer tube. 13. Warranty conditions Please visit www.altrex.com/warranty to view the clauses of the Altrex warranty. 14. Abbreviations and logos...
  • Page 7 Kantplankset Conjunto de resguardo B x L= 0,75x1,57 305582 Toeboard set Tavole fermapiede Zestaw bortnic Lot de plinthes Zarážky u podlahy-sada Bordbretter-Satz Sada zarážok Rodapié Aluminio 306010 Clip-in ladder clip-in escada Clip-in ladder clip-in pioli clip-in drabiny clip-in échelle Clip-in žebřík clip-in leiter Clip-in rebríka clip-in escalera www.altrex.com www.altrex.com www.lglt.co.za...
  • Page 8 Suporte e tubo de ancoragem Wall support and achorage tube Supporto e un palo di ancoraggio Rurę podpierającą i kotwiącą Tube d’ancrage et d’appui Stütz- und Verankerungsrohr Podpěru a kotvicí trubku Tubo de soporte y anclaje Opornú a kotviacu tyč 713203 Sjorband Cinta Lashing band / Strap Cinghie Taśmę spinającą Sangle Zurrband Upínací popruh Remeň Cintas de trincaje www.lglt.co.za www.altrex.com www.altrex.com...
  • Page 9 50° 90° 50° 50° F-10 F-11 F-12 F-14 / F-15 STOP F-13 F-14 F-15 www.altrex.com www.altrex.com www.lglt.co.za...
  • Page 10 Verwendungsanleitung Aufbauvideo 50° 90° 50° 50° MiTOWER TROLLEY Stückliste Anzahl F-25 F-26 F-27 Aufbaurahmen 4 Sprossen Trolley Verpackung Video Rad Ø 125 mm Plattform MiTOWER mit Luke Doppelte Geländerstrebe Dreieckausleger Bordbrettersatz Aufbau- und Verwendungsanleitung F-28 F-29 F-30 www.lglt.co.za www.altrex.com www.altrex.com...
  • Page 11 MiTOWER TROLLEY Stückliste Anzahl Aufbaurahmen 4 Sprossen Trolley Verpackung Video Trolley video Rad Ø 125 mm Plattform MiTOWER mit Luke Doppelte Geländerstrebe Dreieckausleger Bordbrettersatz Aufbau- und Verwendungsanleitung F-31 F-32 F-33 www.altrex.com www.altrex.com www.lglt.co.za...
  • Page 12 Working height (WH) MiTOWER MiTOWER+ www.lglt.co.za www.altrex.com www.altrex.com...
  • Page 13 Working height (WH) MiTOWER MiTOWER+ www.altrex.com www.altrex.com www.lglt.co.za...
  • Page 14 T5. MiTOWER 2.20 m 3.20 m 4.20 m 4.20 m 5.20 m 6.20 m 77.5 100.3 110.8 MiTOWER / MiTOWER+ 2.20 m 3.20 m 4.20 m 4.20 m 5.20 m 6.20 m www.lglt.co.za www.altrex.com www.altrex.com...
  • Page 15 T6. MiTOWER+ 2.20 m 3.20 m 4.20 m 5.20 m 6.20 m 4.20 m 5.20 m 6.20 m 7.20 m 8.20 m 87.8 115.4 126.8 154.3 165.8 MiTOWER+ 5.20 m 6.20 m 7.20 m 8.20 m www.altrex.com www.altrex.com www.lglt.co.za...
  • Page 16 MiTOWER STAIRS MiTOWER+ STAIRS MiTOWER+ STAIRS www.altrex.com www.altrex.com www.lglt.co.za...
  • Page 17 MiTOWER MiTOWER+ 14.7 18.3 MiTOWER STAIRS MiTOWER+ STAIRS www.altrex.com www.altrex.com www.lglt.co.za...
  • Page 18 __________________________________________________________________________________ MiTower Plus: Basket Assembly Guide Proper storing of the MiTower Plus system ensures that it takes very little space, makes it easy to move, makes it more attractive to potential rental customers as its compactness is well pronounced, and promotes Safety and Security as all parts are stored as a unit.
  • Page 19 __________________________________________________________________________________ STEP PHOTO DESCRIPTION Step 5: Fit guardrails on the inside of the 2 frames with its bottom resting on the platform. Step 6: Start stacking the remaining Guardrails with its clasps facing outward and in staggered formation as shown in the photo. Ensure that the rails fit snugly to leave sufficient space for the frames which needs to be loaded next.
  • Page 20 __________________________________________________________________________________ STEP PHOTO DESCRIPTION Step 8: The basket is now packed and ready for its next use. In this configuration, the basket can be moved through a single door and fits comfortably in most normal passenger elevators.
  • Page 21 If required, the Health and Safety Inspectorate can check the total calculation (results) at Altrex. The calculation is made out using the Finite Element Method (FEM). Altrex B.V., P.O. Box 30160, 8003 CD Zwolle (NL), Tel +31 38 455 7733, Fax +31 38 455 7744 www.altrex.com...
  • Page 22 The EN 1004 describes that a rolling tower must withhold a combination of load cases. These combinations of load cases are described in the diagram below [figure 1]. The strength calculation Altrex has carried out on there rolling towers are based on this diagram.
  • Page 23 The safety requirements of both formulas (as mentioned above) are taken into account. Longitudinal - Outdoor Altrex B.V., P.O. Box 30160, 8003 CD Zwolle (NL), Tel +31 38 455 7733, Fax +31 38 455 7744 www.altrex.com...
  • Page 24 “All rights reserved. No part of this strength and stability calculation summary may be duplicated, stored in an automated data file, or disclosed in any way of form, whether electronically, mechanically by photocopying, recording, or in any other way, without prior consent from Altrex B.V. Zwolle. This strength and stability calculation summary may...
  • Page 25 Altrex B.V. Mindenstraat 7 8028 PK Zwolle The Netherlands www.altrex.com LGLT (Pty) Ltd hello@lglt.co.za South Africa www.lglt.co.za Copyright Altrex B.V. © 2020 www.altrex.com www.altrex.com...
