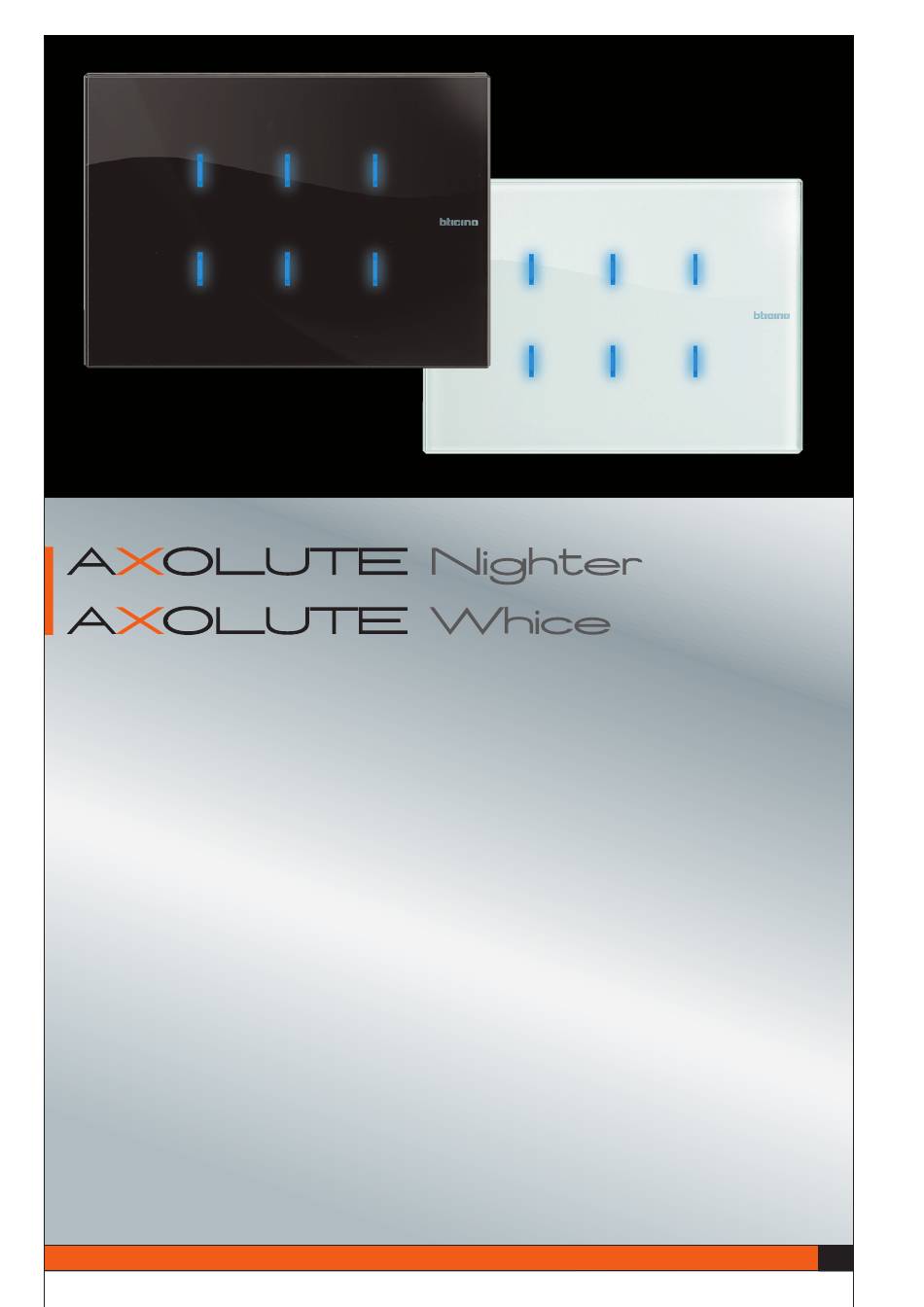

- Page 1 My HoMe AUToMATIoN GUIDE...

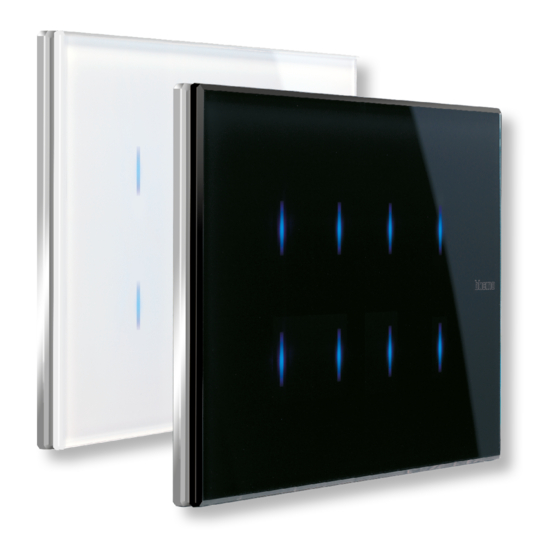

- Page 2 CONFIGURATION – Touch control item HC/HS4657M3 and item HC/HS4657M4 The Nighter & Whice control is an SCS control where the traditional pushbuttons are replaced by capacitive sensors. Touching the area of a sensor with a finger is the same as pressing a pushbutton. The device can thus perform some functions typical of an SCS control by simply touching its surface.
- Page 3 Configuration The Nighter & Whice can be configured in two different ways: - Physical configuration: putting the physical configurators into their housings. - Virtual configuration: the control can be configured remotely, whenever you do not have the physical configurators. (For details, refer to the Virtual Configuration guide). Apart from modality, the control always needs an univocal A/PL address in the system.
- Page 4 Non-cyclical self-learning mode M = 6 Configurator value (M) Function performed This mode is a variation of the self-learning mode (M=0) in which the keys never work cyclically. Thus if, for example, the ON of an actuator or dimmer has been learnt, the pair of keys configure automatically to switch ON or increase the intensity level for the upper key and switch OFF or decrease the intensity level for the lower key.
- Page 5 Cancel a scenario 1) scenario module item F420 must be in configuration with self-learning enabled; 2) keep the pushbutton on the back of the Nighter and Whice control pressed for 8 seconds; first the LEDs light up then they return to the minimum level set. Release the key within 4 seconds, the LEDs shine simultaneously: 3) press the key corresponding to the scenario that you want to cancel within 20 seconds;...
- Page 6 Selection of the LeD intensity (INT configurator) The INT configurator can be used to select between different LED lighting intensities, depending on the installation needs. You can set the LED intensity to fade when it is being switched OFF or switch it OFF suddenly - INT=none at rest the LED are lit up at 30%, if a key is pressed the corresponding LED lights up at 75%.
