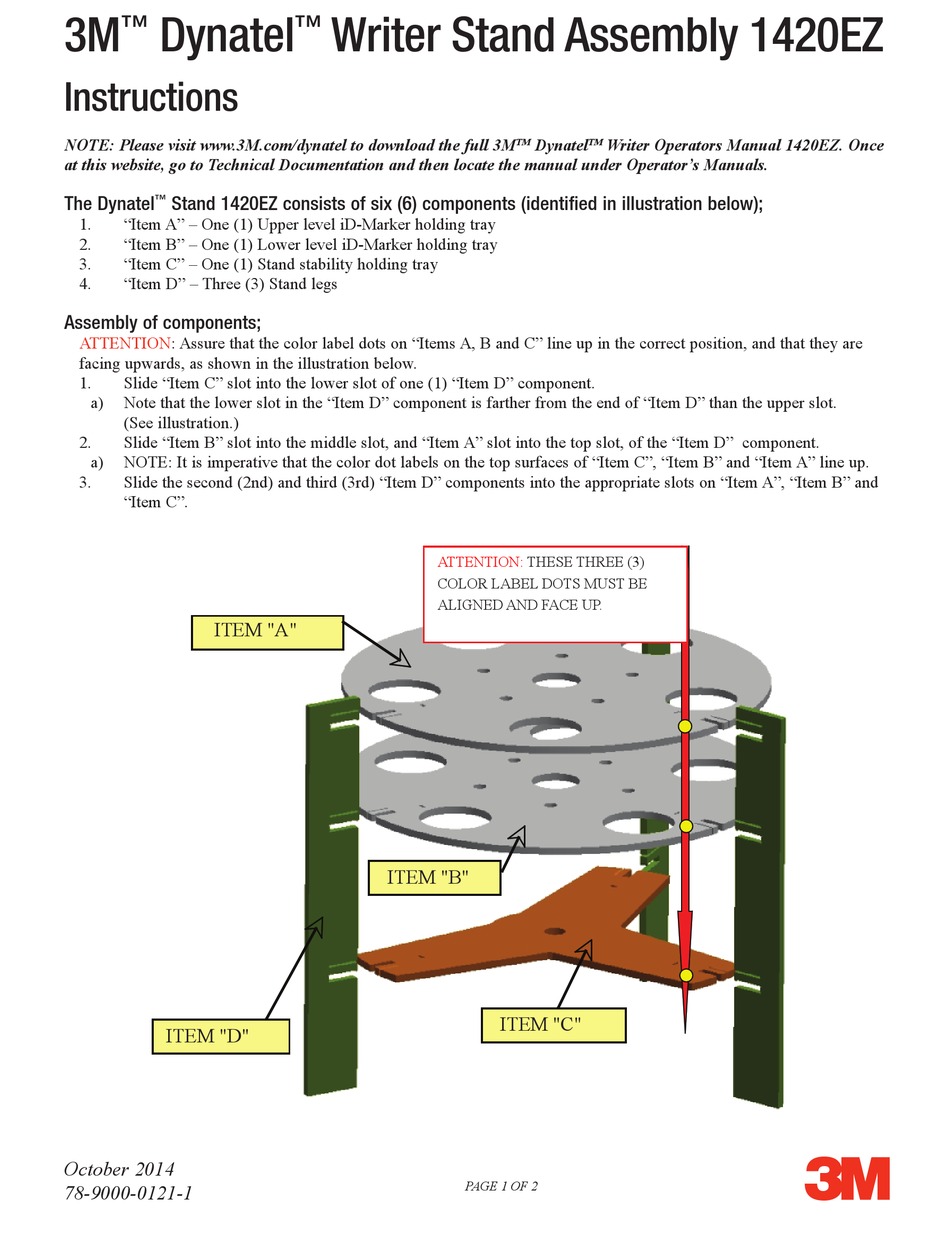

3M Dynatel 1420EZ Assembly

3M Dynatel
™
Instructions
NOTE: Please visit www.3M.com/dynatel to download the full 3M
at this website, go to Technical Documentation and then locate the manual under Operator's Manuals.

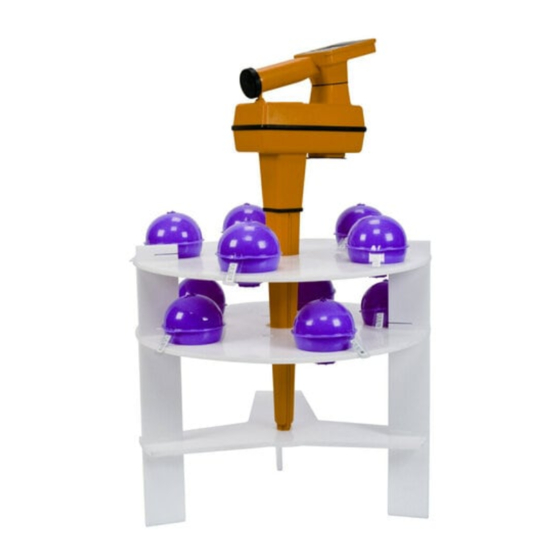

The Dynatel Stand 1420EZ consists of six (6) components (identified in illustration below);
™
1. "Item A" – One (1) Upper level iD-Marker holding tray
2. "Item B" – One (1) Lower level iD-Marker holding tray
3. "Item C" – One (1) Stand stability holding tray
4. "Item D" – Three (3) Stand legs

Assembly of components;

ATTENTION: Assure that the color label dots on "Items A, B and C" line up in the correct position, and that they are
facing upwards, as shown in the illustration below.
1. Slide "Item C" slot into the lower slot of one (1) "Item D" component.
a) Note that the lower slot in the "Item D" component is farther from the end of "Item D" than the upper slot.
(See illustration.)
2. Slide "Item B" slot into the middle slot, and "Item A" slot into the top slot, of the "Item D" component.
a) NOTE: It is imperative that the color dot labels on the top surfaces of "Item C", "Item B" and "Item A" line up.
3. Slide the second (2nd) and third (3rd) "Item D" components into the appropriate slots on "Item A", "Item B" and
"Item C".
ITEM "A"
ITEM "D"
October 2014
78-9000-0121-1
Writer Stand Assembly 1420EZ
™
ATTENTION:
COLOR LABEL DOTS MUST BE
ALIGNED AND FACE UP.
ITEM "B"
PAGE 1 OF 2
Dynatel Writer Operators Manual 1420EZ. Once
TM TM
THESE THREE (3)
ITEM "C"
3
