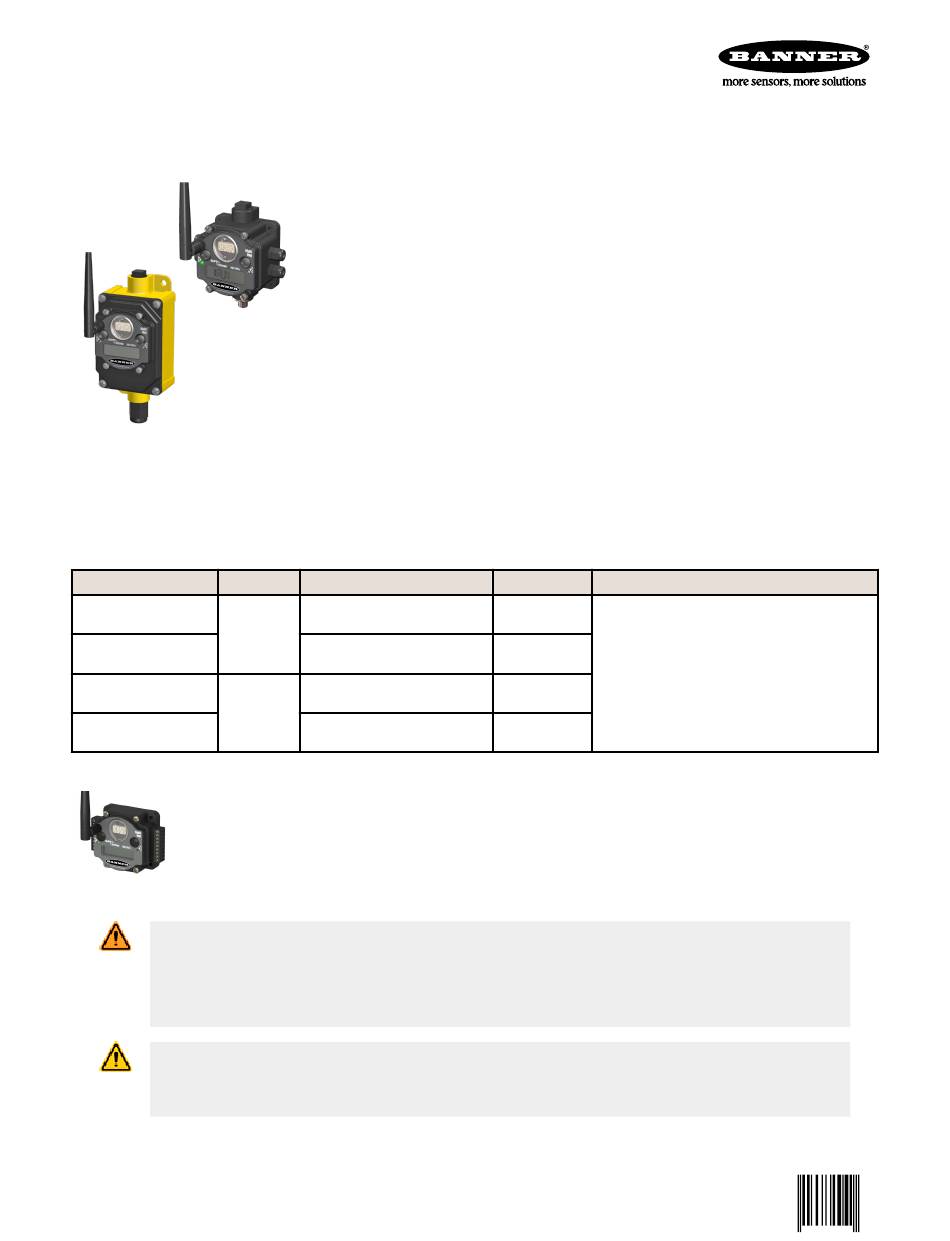

Banner SureCross DX80DR9M-H1 Manual

SureCross MultiHop Data Radio
Datasheet
900 MHz
DX80...E 900 MHz Model
For additional information, updated documentation, and accessories, refer to Banner Engineering's website,
www.bannerengineering.com/surecross.
Model Frequency
DX80DR9M-H1
900 MHz
ISM Band
DX80DR9M-H1E
DX80DR2M-H1
2.4 GHz
ISM Band
DX80DR2M-H1E
DX80...C (IP20; NEMA 1) models are also available. To order this model with an IP20 housing,
add a C to the end of the model number: DX80DR9M-H1C.
Integrated battery models are also available without batteries. If you purchase a model without
the battery, Banner Engineering recommends using the XENO XL-205F battery or equivalent. For
DX99 models, only a XENO XL-205F battery is certified.
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing so could lead to
serious injury or death. This device does not include the self-checking redundant circuitry necessary
to allow its use in personnel safety applications. A sensor failure or malfunction can cause either an
energized or de-energized sensor output condition.
CAUTION: Never Operate 1 Watt Radios Without Antennas
To avoid damaging the radio circuitry, never power up SureCross Performance or SureCross MultiHop (1
Watt) radios without an antenna.
P/N 148947 Rev. C
®
SureCross MultiHop data radios are wireless industrial communication devices used
to extend the range of a Modbus or other serial communication network.
• Wireless industrial I/O device with four sinking discrete inputs, two NMOS
discrete outputs, two analog (0–20 mA) inputs, one thermistor input, one
counter input, and two switch power outputs
• Selectable transmit power levels of 250 mW or 1 Watt for 900 MHz models
and 65 mW for 2.4 GHz models
®
• FlexPower power options allow for 10 to 30 V dc, solar, and battery power
sources for low power applications.
• Self-healing, auto-routing RF network with multiple hops extends the
network's range
• Serial and I/O communication on a Modbus platform
• Message routing improves link performance
• DIP switches select operational modes: master, repeater, or slave
• Built-in site survey mode enables rapid assessment of a location's RF
transmission properties
• FHSS radios operate and synchronize automatically
Power
10 to 30 V dc or battery
supply module
10 to 30 V dc or integrated
battery
10 to 30 V dc or battery
supply module
10 to 30 V dc or integrated
battery
6 January 2014
Housing I/O
IP67, NEMA 6
Inputs: Four sinking discrete, two 0 to 20 mA
analog, one thermistor, one sinking counter
IP54, NEMA 4
Outputs: Two NMOS discrete, two switch
power
IP67, NEMA 6
Serial interface: RS-485
IP54, NEMA 4
