Senco FUSION F-35XP Operating Instructions Manual

Cordless framing nailer
Hide thumbs Also See for FUSION F-35XP:
Table of Contents

Advertisement

Quick Links

F-35XP
Cordless
Framing nailer
operating instructions
Read operating
instructions before use.
KYOCERA-SENCO Industrial Tools, Inc.
NFD810A10B10C • Issued July 3, 2020
4270 Ivy Pointe Blvd.
Cincinnati, OH 45245
1-800-543-4596
www.senco.com
© 2020 by KYOCERA-SENCO Industrial Tools, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FUSION F-35XP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Senco FUSION F-35XP

Summary of Contents for Senco FUSION F-35XP

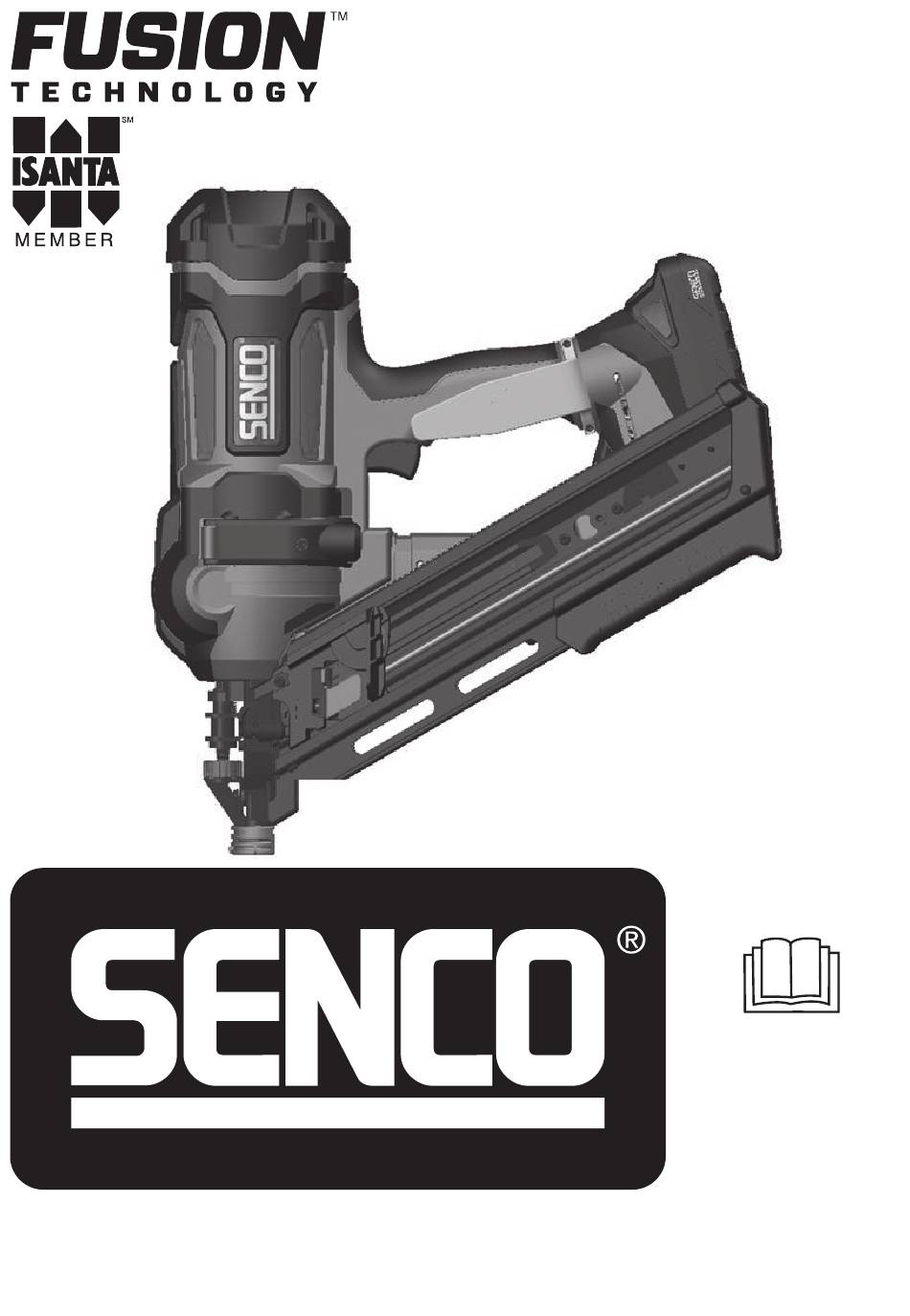

  • Page 1 F-35XP Cordless Framing nailer operating instructions Read operating instructions before use. KYOCERA-SENCO Industrial Tools, Inc. NFD810A10B10C • Issued July 3, 2020 4270 Ivy Pointe Blvd. Cincinnati, OH 45245 1-800-543-4596 www.senco.com © 2020 by KYOCERA-SENCO Industrial Tools, Inc.

  • Page 2: Table Of Contents

    Table of Contents symbols .............................3 general Power Tool safety Warnings ..................4 Work Area Safety ........................4 Electrical Safety ........................4 Personal Safety ........................4 Power Tool Use and Care .......................5 Battery Tool Use and Care ......................5 Service ...........................6 nailer safety Warnings ......................6 additional Tool safety Warnings ....................7 safety Warnings for Charger and Battery .................9 Functional description ......................11 Tool operation .........................12...

  • Page 3: Symbols

    symBols The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING danger: Indicates a hazardous situation, which, if not avoided, will result in death or serious injury. Warning: Indicates a hazardous situation, which, if not avoided, could result in death or serious injury.

  • Page 4: General Power Tool Safety Warnings

    general Power Tool safety Warnings WARNING read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. save all warnings and instructions for future reference. The term “power tool”...

  • Page 5: Power Tool Use And Care

    general PoWer Tool saFeTy Warnings 15. dress properly. do not wear loose clothing or jewelry. keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. 16. if devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.

  • Page 6: Service

    general PoWer Tool saFeTy Warnings 32. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. serViCe 33.

  • Page 7: Additional Tool Safety Warnings

    Deliberate tampering with the drive assembly may result in the release of the driver. Any repair or upgrade requiring access to the pressure chamber may be handled by an authorized Senco dealer or service center. disconnect tool from battery when: • Outside of the operator’s supervision or control.
  • Page 8 Keep hands and other body parts away from the area shown in the circle to avoid possible injury during operation. Do not use tool without Danger Label on tool. If label is missing, damaged or unreadable, contact your SENCO representative to obtain a new label at no cost. Tool Use WARNING Read and understand tool labels and manual.

  • Page 9: Safety Warnings For Charger And Battery

    This manual contains important safety and operating instructions for SENCO battery charger VB0189 (US). Before using SENCO battery charger VB0189 (US), read all instructions and cautionary markings on (1) battery charger, and (2) battery. Do not expose charger to water, rain, or snow.
  • Page 10 BaTTery and CHarger saFeTy Warnings Do not disassemble charger or battery cartridge; take it to a SENCO Authorized Service Center when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire. To reduce risk of electric shock, unplug charger from outlet before attempting any maintenance or cleaning.

  • Page 12: Tool Operation

    Tool oPeraTion loading THe Tool: Insert strip of nails into rear of magazine. • Use only genuine SENCO fasteners (see Fastener Specifications). • Do not load with workpiece contact (safety element) or trigger depressed. Pull feeder shoe back. Unloading THe Tool: Push Button on feeder shoe to release feeder from strip.
  • Page 13 Tool oPeraTion In the “contact-actuation” mode, nails can be driven in two ways: The first way: 1. Press the T T T side of the selector switch for 0.5 seconds. This will be indicated by the flashing green LED on the selector switch. 2.

  • Page 14: Warning Light

    Tool oPeraTion This tool is equipped with a multi-purpose light on the tool handle. The light will indicate that the electronic controls are energized. solid green light Indicates the tool is energized and ready to drive. This light will stay on for 10 seconds after the mode button is pressed. After this time the light will turn off but the tool is still ready to drive.

  • Page 15: Time-Out / Lockout

    Tool oPeraTion This tool is equipped with an electronic “Time-Out” feature. This tool will temporarily be disabled under any of the following conditions: 1. Workpiece contact element is depressed against the work piece, but the trigger is not pressed within approximately 5 seconds. 2.

  • Page 16: Fastener Jam

    Tool oPeraTion Always turn the tool off before storing. As an added protection feature, the tool will Indicator LED automatically turn off 20 minutes after the last activation. ON-Flashing When a nail jam occurs, the red light at the handle will flash red. The tool will attempt to recover.

  • Page 17: Battery Charging

    Tool oPeraTion BaTTery CHarging 1. Place battery pack in charger. 2. align raised ribs on battery pack with groove in charger. 3. Press down on battery pack to be sure contacts on battery pack engage properly with contacts in charger. When properly connected, the red light will turn on. red flashing light indicates fast charging mode.

  • Page 18: Battery Disposal

    • Battery • Belt Hook • Battery Charger • storage Bag • safety glasses • extended magazine For more information or a complete illustrated catalogue of senCo accessories, ask your representative.

  • Page 19: Fastener Specifications

    Fastener specifications 34 degree SENCO Fastener Code inches 2-3/8 2-1/4 2-3/8 2-1/2 3-1/4 3-1/2 3/1/4 .113" .113" 2,9 mm 2,9 mm Rounded to â nearest 5mm .120" .120" .120" 3,1 mm 3,1 mm 3,1 mm .131" .148" 3,3 mm 3,8 mm...

  • Page 20: Troubleshooting

    Battery is discharged or has dead Replace or recharge battery. cell. Workpiece contact element is Remove battery, then inspect jammed. tool to assure free movement of workpiece contact element. Workpiece contact element or Return tool to authorized SENCO trigger switches are damaged. service representative.
  • Page 21 • Keep your Cordless Nailer as clean and free of debris as possible. • Service your SENCO tool periodically to insure your tool is productive and helping you earn money on the job. See the service guide below for recommended service intervals.
  • Page 22 KYOCERA-SENCO Industrial Tools, Inc. (“SENCO”) designs and constructs its products using the highest standards of material and workmanship. SENCO warrants to the original retail purchaser that the following products will be free from defects in material or workmanship for the warranty period...
