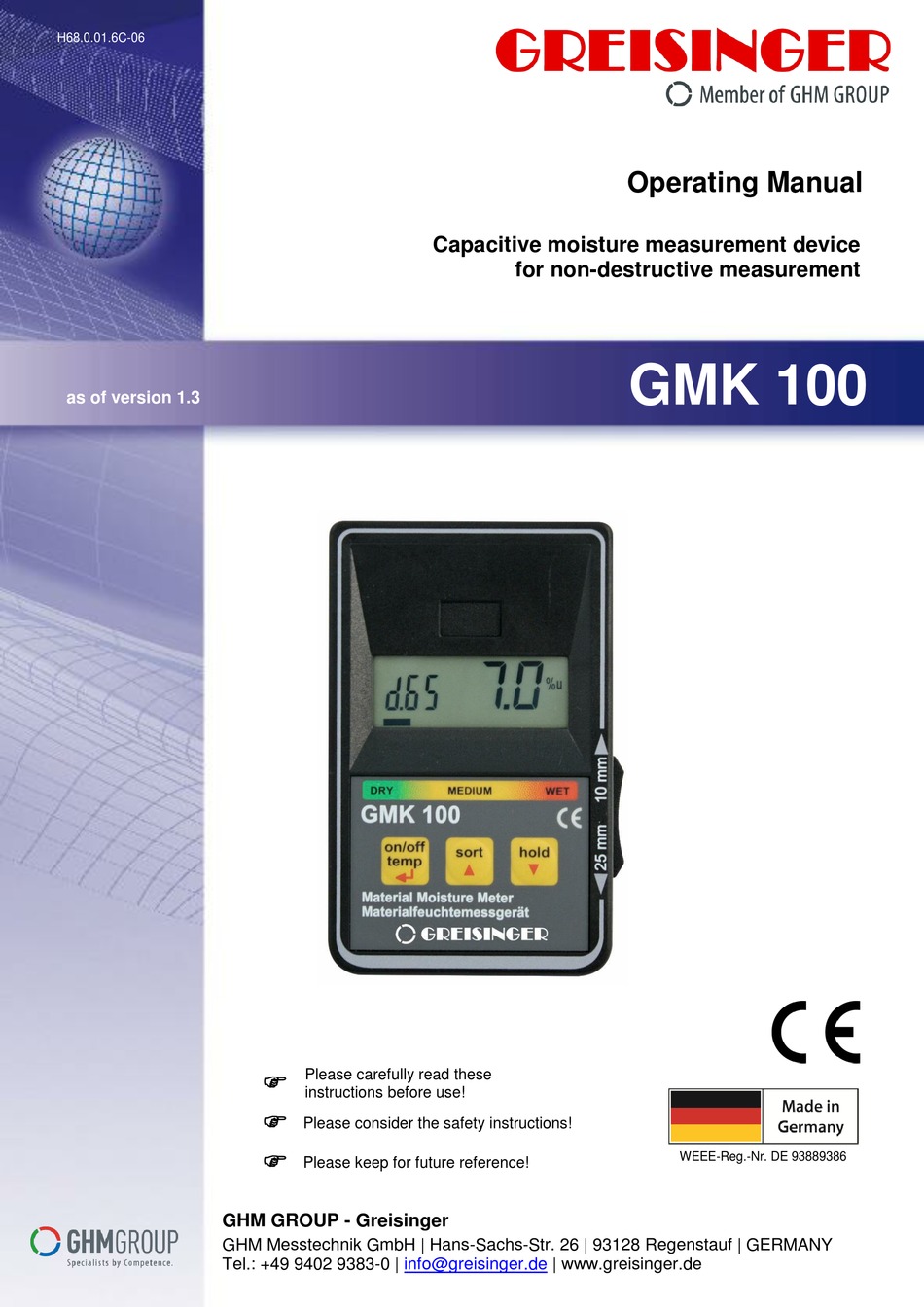

- Page 1 Please consider the safety instructions! WEEE-Reg.-Nr. DE 93889386 Please keep for future reference! GHM GROUP - Greisinger GHM Messtechnik GmbH | Hans-Sachs-Str. 26 | 93128 Regenstauf | GERMANY Tel.: +49 9402 9383-0 | info@greisinger.de | www.greisinger.de...
-
Page 2: Table Of Contents
H68.0.01.6C-06 Operating Manual GMK 100 page 2 of 14 _____________________________________________________ _____________________________________________________________________________ Index GENERAL NOTE ............................3 SAFETY ................................3 ............................3 NTENDED ........................3 AFETY SIGNS AND SYMBOLS ......................4 EASONABLY FORESEEABLE MISUSE ..........................4 AFETY GUIDELINES PRODUCT DESCRIPTION ........................4 .............................4 COPE OF SUPPLY ....................4 PERATION AND MAINTENANCE ADVICE DISPLAY AND CONTROL ELEMENTS ....................5 ..........................5 ISPLAY ELEMENTS... -
Page 3: General Note
H68.0.01.6C-06 Operating Manual GMK 100 page 3 of 14 _____________________________________________________ _____________________________________________________________________________ 1 General Note Read this document carefully and get used to the operation of the device before you use it. Keep this document within easy reach near the device for consulting in case of doubt 2 Safety 2.1 Intended Use The device is designed for measurements of moisture (%u) and water content (%w) of materials... -
Page 4: Reasonably Foreseeable Misuse
H68.0.01.6C-06 Operating Manual GMK 100 page 4 of 14 _____________________________________________________ _____________________________________________________________________________ 2.3 Reasonably foreseeable misuse This device must not be used at potentially explosive areas! The device must not be used at a patient for diagnosis or any other medical purpose! ... -
Page 5: Display And Control Elements

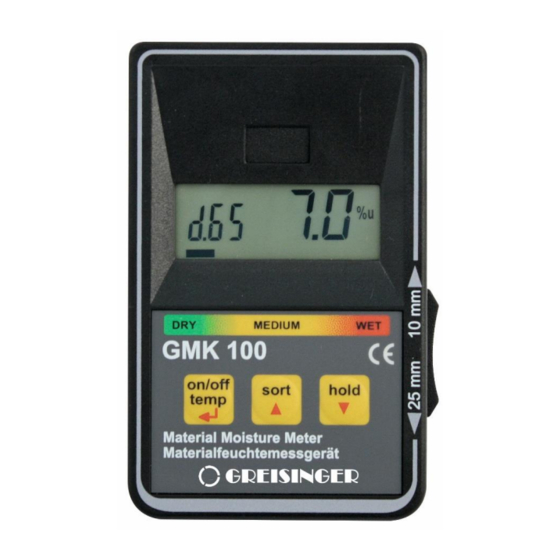

H68.0.01.6C-06 Operating Manual GMK 100 page 5 of 14 _____________________________________________________ _____________________________________________________________________________ 4 Display and Control Elements 4.1 Display elements 1: Main display Display of the current moisture or water content 2: Material display The name of the selected material characteristic curve is displayed. 3: Moisture rating Moisture rating via bar graph. -
Page 6: Measurement Basics
H68.0.01.6C-06 Operating Manual GMK 100 page 6 of 14 _____________________________________________________ _____________________________________________________________________________ 6 Measurement Basics 6.1 Measuring field & depth The device measures with an electric field (capacitive measuring method), which propagates from the rear side downwards. The measuring depth can be changed between approx. 10 mm and 25 mm with the sliding switch. -
Page 7: Hold The Device
H68.0.01.6C-06 Operating Manual GMK 100 page 7 of 14 _____________________________________________________ _____________________________________________________________________________ 6.3 Hold the device The water content of the hand has an impact on the measuring value, if the device is held inappropriately. The best results will be obtained if you lay the device down or hold it the way as shown in picture 3. Picture 2: laid down –... -
Page 8: Zeroing Function
H68.0.01.6C-06 Operating Manual GMK 100 page 8 of 14 _____________________________________________________ _____________________________________________________________________________ 6.5 Zeroing function It is recommended to run regularly the zeroing function for best measuring results: Hold the device in the air as shown in the left picture and press key “hold” for 2 seconds. You can easily see whether the zero point is ok with the “rEF”... -
Page 9: Plasterboard Measurement
H68.0.01.6C-06 Operating Manual GMK 100 page 9 of 14 _____________________________________________________ _____________________________________________________________________________ 10 Plasterboard Measurement Plasterboard is usually relatively slim (i.e. 12.5mm) -> select measuring depth 10mm. Screws, cables and constructions behind the plasterboard (supporting stand) may falsify the measurement. 11 Measurement of Other Materials The device has not saved characteristics for all materials. -
Page 10: Configuration Of The Device
H68.0.01.6C-06 Operating Manual GMK 100 page 10 of 14 _____________________________________________________ _____________________________________________________________________________ The values measured with CM-method and oven-dry method (%u) may differ for conversion [% u] to [CM-%] some materials. Especially for building for concrete and cement screeds materials containing cement CM- measurements will always get lower values than oven-dry measurements. -
Page 11: Adjustment
H68.0.01.6C-06 Operating Manual GMK 100 page 11 of 14 _____________________________________________________ _____________________________________________________________________________ 14 Adjustment The accuracy can be checked with the testing probe PW 25 (optional accessories). Select the material “rEF” and run the zeroing function (p.r.t. chapter 6.5). Lay the device onto the testing cube. If the device displays a different value than the value printed on the cube for the GMK 100, you can use the slope correction to adjust the device: Displayed value rEF =(measured value rEF * (1 + slope correction / 100 ) Follow these instructions to adjust the device:... -
Page 12: Accuracy Inspection: Adjustment /Update Service
Use an adequate transport package for reshipment, especially for fully functional devices. Please make sure that the device is protected in the package by enough packing materials. Add the completed reshipment form of the GHM website http://www.ghm-messtechnik.de/downloads/ghm-formulare.html. 17.2 Disposal instructions Batteries must not be disposed in the regular domestic waste but at the designated collecting points. -
Page 13: Technical Data
H68.0.01.6C-06 Operating Manual GMK 100 page 13 of 14 _____________________________________________________ _____________________________________________________________________________ 18 Technical Data Measurement Method Capacitive (=dielectric) measuring method, non-destructive Depth 2 selectable: approx. 10 mm and approx. 25 mm Materials 18 characteristic curves for wood and popular materials, additionally reference curve for high-resolution relative measurements 0.1 %;... -
Page 14: Addendum A: Wood Types Table
H68.0.01.6C-06 Operating Manual GMK 100 page 14 of 14 _____________________________________________________ _____________________________________________________________________________ Addendum A: Wood types table english lat. charact. english lat. charact. Abachi d.45 Maple, Sycamore- d.55 Triplochiton scleroxylon Acer pseudoplatanus Afzelia d.75 Mengkulang d.65 Afzelia spp. Heritiera spp. Ash, American- d.65 Meranti, Dark Red- d.65...
