INSTALLATION INSTRUCTIONS
DIN160 Cable
This guide describes how to connect and use the National Instruments DIN160 cable, which has a
maximum voltage rating of 150 V, CAT I. Use this cable to connect the NI PXI-2510 switch module to
your application.
The DIN160 cable is available in three configurations:
•
SH160DIN-3XDB50F
•
SH160DIN-160DIN
•
SH160DIN-BARE WIRE
Contents
What You Need to Get Started ............................................................................................................ 1
Getting Started with the DIN160 Cable............................................................................................... 2
Connectors ................................................................................................................................... 5
Cable Configurations ........................................................................................................................... 5
SH160DIN-3XDB50F Cable ....................................................................................................... 5
SH160DIN-160DIN Cable .......................................................................................................... 12
SH160DIN-BARE WIRE Cable.................................................................................................. 17
Specifications....................................................................................................................................... 24
Environment................................................................................................................................. 24
Accessories .......................................................................................................................................... 25
What You Need to Get Started
To use the cable, you need the following items:
❑
DIN160 cable
❑
(Optional) Three NI TBX-50 screw terminal blocks for use with the SH160DIN-3XDB50F
❑
NI PXI-2510 switch module and documentation
Advertisement
Table of Contents
Related Manuals for National Instruments SH160DIN-3XDB50F
Summary of Contents for National Instruments SH160DIN-3XDB50F
-
Page 1: Table Of Contents
INSTALLATION INSTRUCTIONS DIN160 Cable This guide describes how to connect and use the National Instruments DIN160 cable, which has a maximum voltage rating of 150 V, CAT I. Use this cable to connect the NI PXI-2510 switch module to your application. -
Page 2: Getting Started With The Din160 Cable
Getting Started with the DIN160 Cable Complete the following steps to connect the cable to the NI PXI-2510 and your application. Refer to Figures 2 through 4 for illustrations of the cable, and refer to Figures 5 and 6 for illustrations of the connectors. - Page 3 Connect the second DIN160 connector on the cable to your application. • Connect the unterminated wires to your application. DIN160 Connector Cable Leg Labels Thumbscrews 50-Pin Female D-SUB Connectors Figure 2. SH160DIN-3XDB50F Cable © National Instruments Corporation DIN160 Cable Installation Instructions...

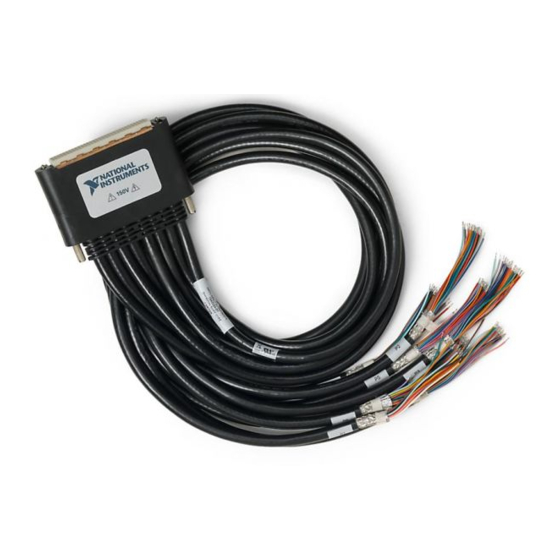

- Page 4 DIN160 Connectors Thumbscrews Figure 3. SH160DIN-160DIN Cable DIN160 Connector Cable Leg Labels Thumbscrews 25 Unterminated, Tinned, and Stripped Wires Figure 4. SH160DIN-BARE WIRE Cable DIN160 Cable Installation Instructions ni.com...
-
Page 5: Connectors
The following sections describe each of the configurations. SH160DIN-3XDB50F Cable The SH160DIN-3XDB50F cable is recommended for connecting the NI PXI-2510 to your system. One end of the cable terminates with a DIN160 connector. The other end of the cable terminates with three 50-pin female D-SUB connectors. - Page 6 Use the pinouts and the pin assignments listed in Tables 1 through 3 to determine how to connect signals to your application using the SH160DIN-3XDB50F cable. Refer to the NI Switches Help for a complete listing of channel names and pinouts. Table 1. Pin Assignment for SH160DIN-3XDB50F Connector P1 50-Pin D-SUB Connector P1 D-SUB Pin...
- Page 7 Table 1. Pin Assignment for SH160DIN-3XDB50F Connector P1 (Continued) 50-Pin D-SUB Connector P1 D-SUB Pin NI PXI-2510 Channel Interface Connector Pin DUT13 CH14 DUT14 CH15 DUT15 CH16 DUT16 CH17 DUT17 CH18 DUT18 CH19 DUT19 USER_0 USER_1 USER_n signals are not used by the NI PXI-2510.
- Page 8 Table 2. Pin Assignment for SH160DIN-3XDB50F Connector P2 50-Pin D-SUB Connector P2 D-SUB Pin NI PXI-2510 Channel Interface Connector Pin CH20 DUT20 CH21 DUT21 CH22 DUT22 CH23 DUT23 CH24 DUT24 CH25 DUT25 CH26 DUT26 CH27 DUT27 CH28 DUT28 CH29 DUT29...
- Page 9 Table 2. Pin Assignment for SH160DIN-3XDB50F Connector P2 (Continued) 50-Pin D-SUB Connector P2 D-SUB Pin NI PXI-2510 Channel Interface Connector Pin CH35 DUT35 CH36 DUT36 CH37 DUT37 CH38 DUT38 CH39 DUT39 CH40 DUT40 CH41 DUT41 CH42 DUT42 CH43 DUT43 BUSA BUSB ©...
- Page 10 Table 3. Pin Assignment for SH160DIN-3XDB50F Connector P3 50-Pin D-SUB Connector P3 D-SUB Pin NI PXI-2510 Channel Interface Connector Pin CH44 DUT44 CH45 DUT45 CH46 DUT46 CH47 DUT47 CH48 DUT48 CH49 DUT49 CH50 DUT50 CH51 DUT51 CH52 DUT52 CH53 DUT53...
- Page 11 Table 3. Pin Assignment for SH160DIN-3XDB50F Connector P3 (Continued) 50-Pin D-SUB Connector P3 D-SUB Pin NI PXI-2510 Channel Interface Connector Pin CH59 DUT59 CH60 DUT60 CH61 DUT61 CH62 DUT62 CH63 DUT63 CH64 DUT64 CH65 DUT65 CH66 DUT66 CH67 DUT67 USER_2 †...
-
Page 12: Sh160Din-160Din Cable
SH160DIN-160DIN Cable The SH160DIN-160DIN cable is recommended for connecting the NI PXI-2510 to a system that terminates with a male DIN160 connector. Use the pinouts and the pin assignments listed in Table 4 to determine how to connect signals to your application using the SH160DIN-160DIN cable. - Page 13 160DIN Mating Connector 160 DIN P1/P2 Pin NI PXI-2510 Channel CH12 DUT12 CH13 DUT13 CH14 DUT14 CH15 DUT15 CH16 DUT16 CH17 DUT17 CH18 DUT18 CH19 DUT19 USER_0 USER_1 CH20 DUT20 CH21 DUT21 © National Instruments Corporation DIN160 Cable Installation Instructions...
- Page 14 Table 4. Pin Assignment for SH160DIN-160DIN Cable (Continued) 160DIN Mating Connector 160 DIN P1/P2 Pin NI PXI-2510 Channel CH22 DUT22 CH23 DUT23 CH24 DUT24 CH25 DUT25 CH26 DUT26 CH27 DUT27 CH28 DUT28 CH29 DUT29 CH30 DUT30 CH31 DUT31 CH32 DUT32 CH33 DUT33 CH34...
- Page 15 NI PXI-2510 Channel CH37 DUT37 CH38 DUT38 CH39 DUT39 CH40 DUT40 CH41 DUT41 CH42 DUT42 CH43 DUT43 BUSA BUSB CH44 DUT44 CH45 DUT45 CH46 DUT46 CH47 DUT47 CH48 DUT48 CH49 DUT49 CH50 DUT50 © National Instruments Corporation DIN160 Cable Installation Instructions...
- Page 16 Table 4. Pin Assignment for SH160DIN-160DIN Cable (Continued) 160DIN Mating Connector 160 DIN P1/P2 Pin NI PXI-2510 Channel CH51 DUT51 CH52 DUT52 CH53 DUT53 CH54 DUT54 CH55 DUT55 CH56 DUT56 CH57 DUT57 CH58 DUT58 CH59 DUT59 CH60 DUT60 CH61 DUT61 CH62 DUT62 CH63...
-
Page 17: Sh160Din-Bare Wire Cable
Note The first color listed in the Bare Wire Color column of Tables 5 through 10 is the primary color of the wire. The second color listed is the stripe color. © National Instruments Corporation DIN160 Cable Installation Instructions... - Page 18 Table 5. Pin Assignment for SH160DIN-BARE WIRE Cable Leg P1 Cable Leg P1 160 DIN Pin Bare Wire Color NI PXI-2510 Channel BLACK BROWN DUT0 ORANGE DUT1 YELLOW GREEN DUT2 BLUE PURPLE DUT3 GRAY WHITE DUT4 PINK LIGHT GREEN DUT5 BLACK/WHITE BROWN/WHITE DUT6...
- Page 19 PINK CH17 LIGHT GREEN DUT17 BLACK/WHITE CH18 BROWN/WHITE DUT18 RED/WHITE CH19 ORANGE/WHITE DUT19 GREEN/WHITE BLUE/WHITE PURPLE/WHITE RED/BLACK ORANGE/BLACK USER_1 YELLOW/BLACK GREEN/BLACK GRAY/BLACK PINK/BLACK USER_n signals are not used by the NI PXI-2510. © National Instruments Corporation DIN160 Cable Installation Instructions...
- Page 20 Table 7. Pin Assignment for SH160DIN-BARE WIRE Cable Leg P3 Cable Leg P3 160 DIN Pin Bare Wire Color NI PXI-2510 Channel BLACK CH20 BROWN DUT20 CH21 ORANGE DUT21 YELLOW CH22 GREEN DUT22 BLUE CH23 PURPLE DUT23 GRAY CH24 WHITE DUT24 PINK CH25...
- Page 21 DUT36 PINK CH37 LIGHT GREEN DUT37 BLACK/WHITE CH38 BROWN/WHITE DUT38 RED/WHITE CH39 ORANGE/WHITE DUT39 GREEN/WHITE CH40 BLUE/WHITE DUT40 PURPLE/WHITE CH41 RED/BLACK DUT41 ORANGE/BLACK CH42 YELLOW/BLACK DUT42 GREEN/BLACK CH43 GRAY/BLACK DUT43 PINK/BLACK BUSB © National Instruments Corporation DIN160 Cable Installation Instructions...
- Page 22 Table 9. Pin Assignment for SH160DIN-BARE WIRE Cable Leg P5 Cable Leg P5 160 DIN Pin Bare Wire Color NI PXI-2510 Channel BLACK CH44 BROWN DUT44 CH45 ORANGE DUT45 YELLOW CH46 GREEN DUT46 BLUE CH47 PURPLE DUT47 GRAY CH48 WHITE DUT48 PINK CH49...
- Page 23 CH63 ORANGE/WHITE DUT63 GREEN/WHITE CH64 BLUE/WHITE DUT64 PURPLE/WHITE CH65 RED/BLACK DUT65 ORANGE/BLACK CH66 YELLOW/BLACK DUT66 GREEN/BLACK CH67 GRAY/BLACK DUT67 PINK/BLACK RESERVED RESERVED signal is reserved by the NI PXI-2510 for future use. © National Instruments Corporation DIN160 Cable Installation Instructions...
-
Page 24: Specifications
Specifications Maximum voltage ..........150 V, CAT I Caution The NI PXI-2510 module and the DIN160 cable accessory can operate at various ambient temperatures and currents as shown in the following specifications. Table 11. NI PXI-2510 and DIN160 Operating Currents NI PXI-2510 NI PXI-2510 Module Current Module Alone... -
Page 25: Accessories
VARIOFACE module, with screw connection and Phoenix Contact FLK-D50 SUB/S 50 position D-Subminiature male connector Right-angle 50 position male D-SUB connector 747497-4 Small quantity orders are available from Digi-Key Corporation (part number A23398-ND). © National Instruments Corporation DIN160 Cable Installation Instructions... - Page 26 LabVIEW, National Instruments, NI, ni.com, the National Instruments corporate logo, and the Eagle logo are trademarks of National Instruments Corporation. Refer to the Trademark Information at ni.com/trademarks for other National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the National...
