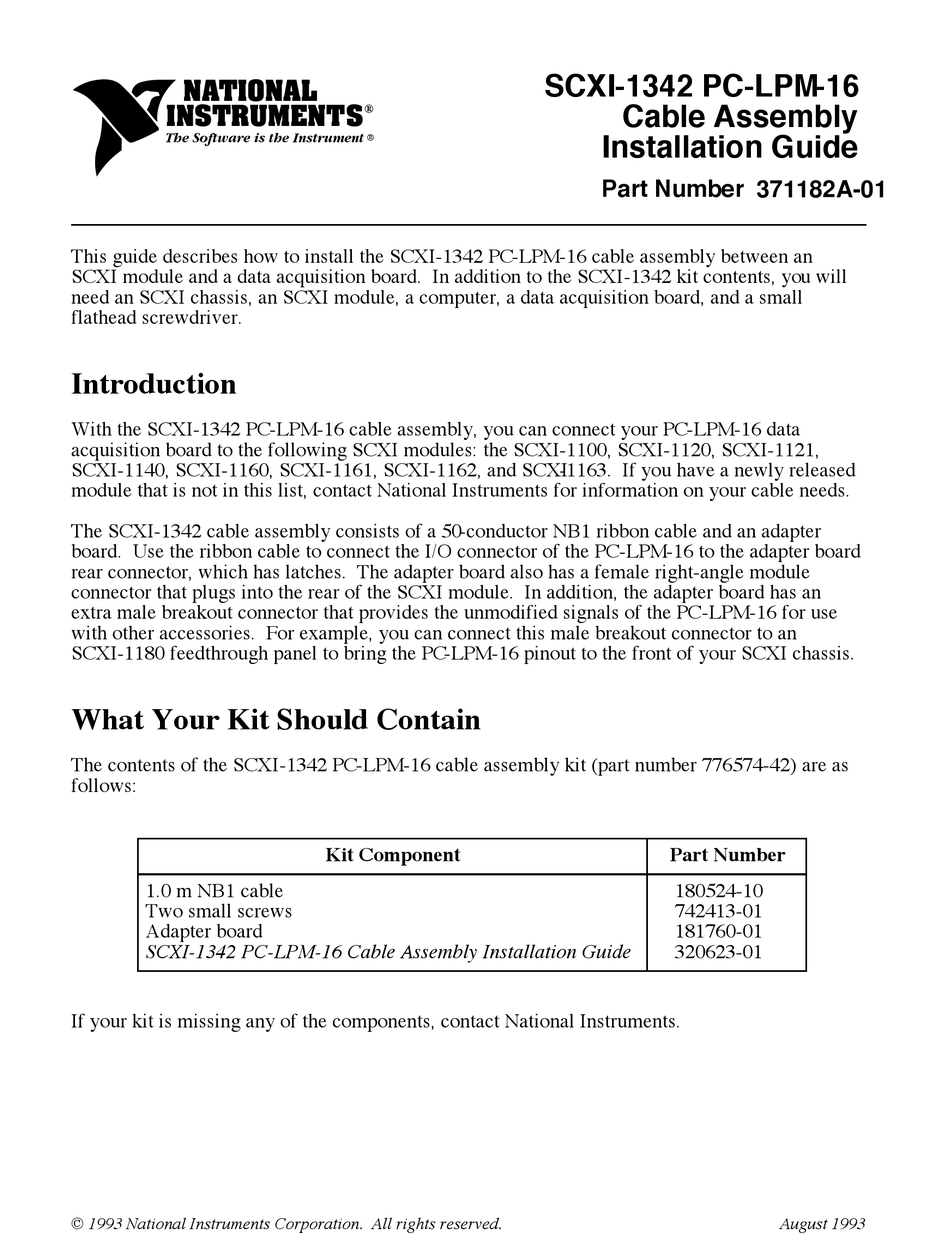

This guide describes how to install the SCXI-1342 PC-LPM-16 cable assembly between an
SCXI module and a data acquisition board. In addition to the SCXI-1342 kit contents, you will
need an SCXI chassis, an SCXI module, a computer, a data acquisition board, and a small
flathead screwdriver.

Introduction

With the SCXI-1342 PC-LPM-16 cable assembly, you can connect your PC-LPM-16 data
acquisition board to the following SCXI modules: the SCXI-1100, SCXI-1120, SCXI-1121,
SCXI-1140, SCXI-1160, SCXI-1161, SCXI-1162, and SCXI - 1163. If you have a newly released
module that is not in this list, contact National Instruments for information on your cable needs.
The SCXI-1342 cable assembly consists of a 50-conductor NB1 ribbon cable and an adapter
board. Use the ribbon cable to connect the I/O connector of the PC-LPM-16 to the adapter board
rear connector, which has latches. The adapter board also has a female right-angle module
connector that plugs into the rear of the SCXI module. In addition, the adapter board has an
extra male breakout connector that provides the unmodified signals of the PC-LPM-16 for use
with other accessories. For example, you can connect this male breakout connector to an
SCXI-1180 feedthrough panel to bring the PC-LPM-16 pinout to the front of your SCXI chassis.

What Your Kit Should Contain

The contents of the SCXI-1342 PC-LPM-16 cable assembly kit (part number 776574-42) are as
follows:
1.0 m NB1 cable
Two small screws
Adapter board
SCXI-1342 PC-LPM-16 Cable Assembly Installation Guide
If your kit is missing any of the components, contact National Instruments.
© 1993 National Instruments Corporation. All rights reserved.
Ò
Ò
Kit Component
SCXI-1342 PC-LPM-16
Cable Assembly
Installation Guide

Part Number 320623-01

Part Number
180524-10
742413-01
181760-01
320623-01
371182A-01
August 1993
