National Instruments SCXI-1355 Installation Manual

SCXI-1355 S

Introduction

What You Need to Get Started

SCXI™ is a trademark of National Instruments Corporation. Product and company names are trademarks or trade names of their respective
companies.
321538A-01
HIELDED
This guide describes how to install the SCXI-1355 shielded cable with an
adapter board between an SCXI module and a DAQDIO 6533
(DIO-32HS) Series data acquisition (DAQ) board.
With the SCXI-1355 shielded cable, you can make a low-noise,
long-distance connection between your SCXI chassis and your
DAQDIO 6533 Series board. You can use the SCXI-1355 with the
DAQDIO 6533 Series AT-DIO-32HS and PCI-DIO-32HS boards.
The SCXI-1355 shielded cable consists of a 1, 2, or 5 m round cable that
has a 68-pin female connector at each end. When plugged into the
SCXI-1355 adapter board, the shielded cable brings the pinout of the
DIO board I/O connector to the SCXI module and to a breakout
connector you can use with other SCXI accessories, such as the
SCXI-1180 and the SCXI-1351.
To set up and use your SCXI-1355 cable, you need the following items:
SCXI-1355 kit

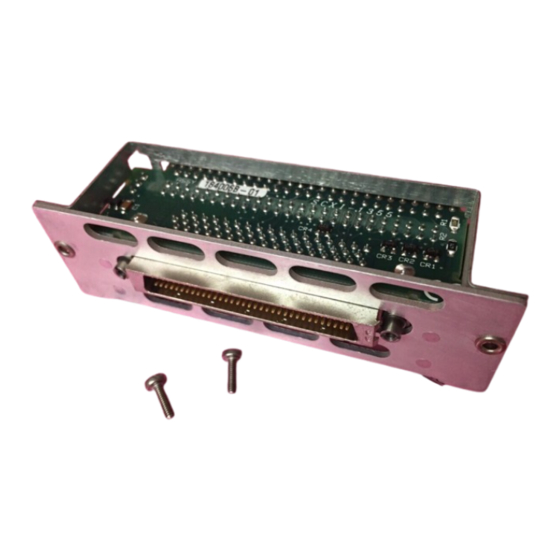

Cable adapter board
1, 2, or 5 m SH68-68-D1 cable
Two small screws
Two cable tie wraps
SCXI-1355 Shielded Cable Installation Guide
SCXI chassis
SCXI module
© Copyright 1997 National Instruments Corp. All rights reserved.
C
ABLE
April 1997
