INSTALLATION GUIDE
SCB-100
100-Pin Female SCSI to 100-Pin Female Screw Terminal, Desktop
Mount Terminal Block
This document describes how to connect and use the SCB-100 with 100-pin data acquisition
(DAQ) devices and lists specifications. The SCB-100 is a shielded I/O connector block with
100 screw terminals for easy signal connection to the following NI devices and modules:
Digital I/O (DIO)—NI 6508, NI 6509, NI 6511, NI 6512, NI 6513, NI 6514, NI 6515,
NI 6527, NI 6528, NI 6529, PCI-DIO-96
Counter/Timer—NI 6624
Multifuntion I/O (MIO)—NI 6025E, NI 6031E, NI 6033E, NI 6071E
Other devices with a 100-pin 0.050 series shielded D-type I/O connector
Note
To use the SCB-100 with a digital I/O or counter/timer device, you must
change the default switch setting. Refer to
Counter/Timer Devices
1. Quick Reference Label (Optional)
2. Top Cover
3. Connector Screw
4. Grounding Screw
5. 100-Pin I/O Connector
for more information.

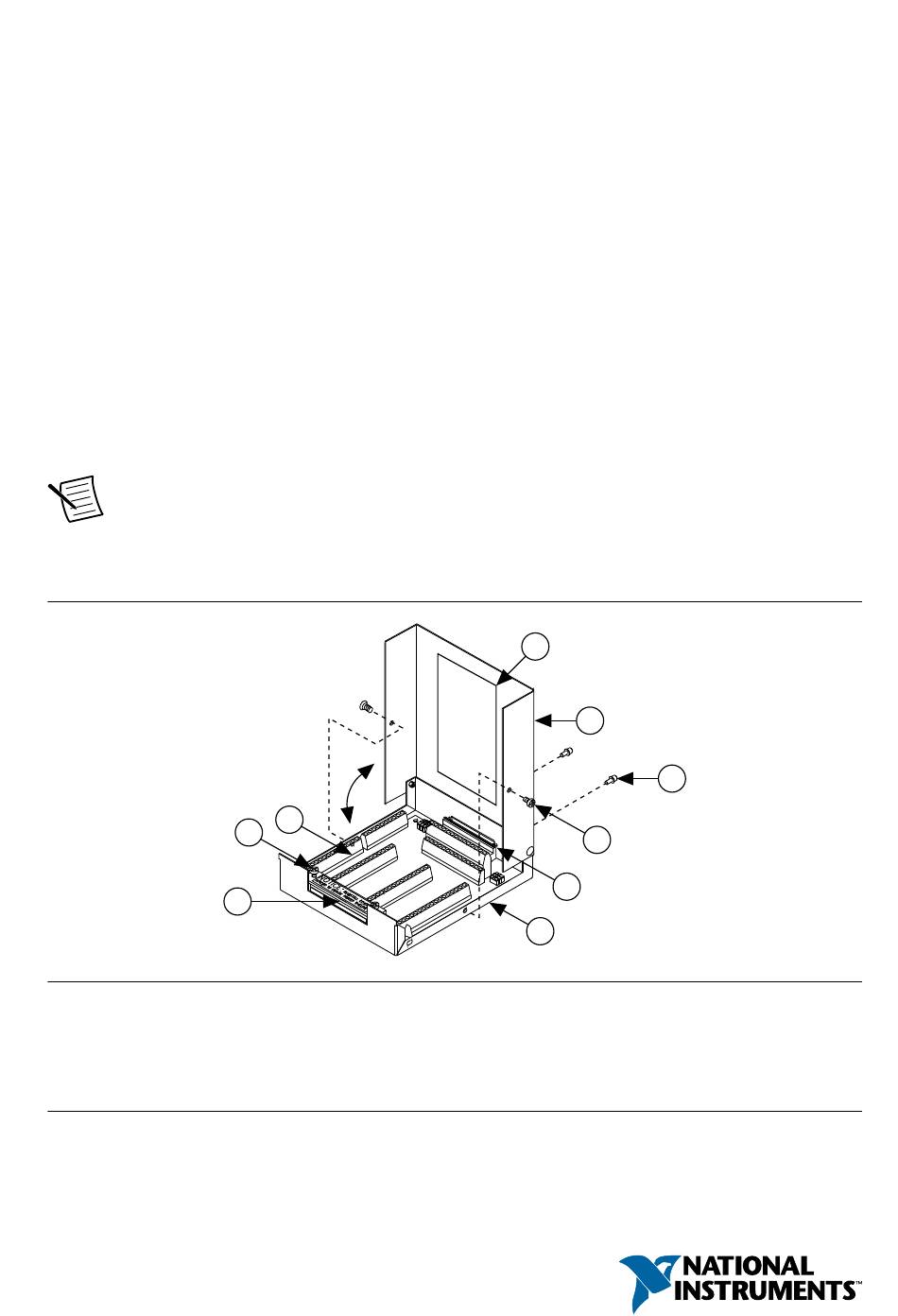

Figure 1. SCB-100 Parts Locator Diagram
9
8
7
Using the SCB-100 with Digital I/O and
1
2
4
5
6
6. Enclosure Base
7. Strain-Relief Bar
8. Strain-Relief Screw
9. SCB-100 Board Assembly
3
