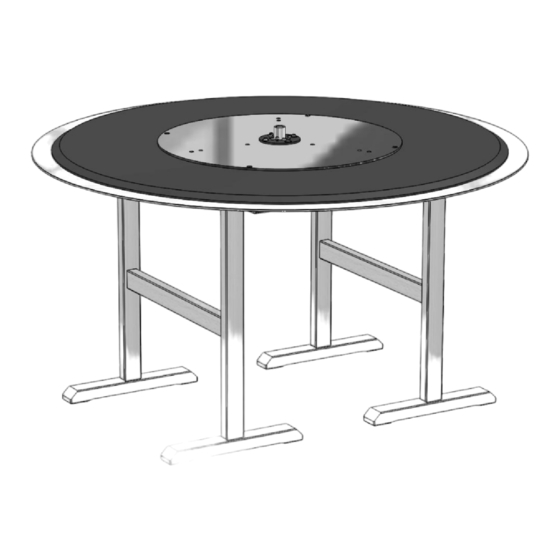

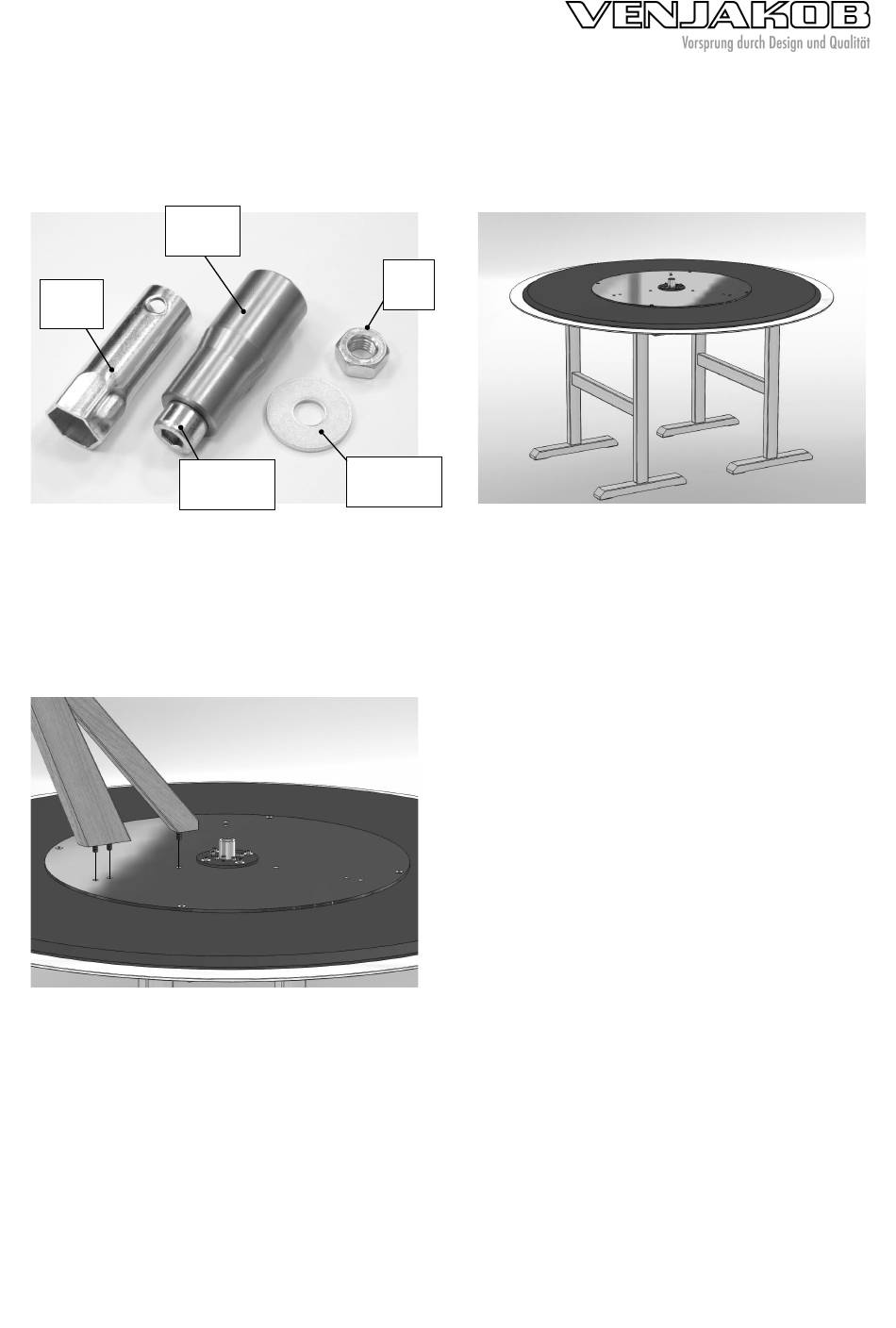

Aufbauanleitung / assembly instructions mod. 2683, 2684 mit Drehteller 25 x 60 SW17 30 x 10,5 M10 x 65 1.Montagematerial. 2. Den Oberbau umgedreht auf gepolsterten 1. Fitting material. Montageböcken ablegen. 2. Put the table-top upside down onto padded assembling trestles.
Page 2
Then put the table down on all 3 legs at 6. Put the rotary plate upside down onto padded once. assembling trestles. Put the bolt into the cavity and fix it with the screw. 2 / 6 2683, 2684 mit Drehteller Änderungsdatum: 09.08.18...
Page 3
9. Unter dem Tisch befinden sich die Befestigungs- und Spannschrauben. Die 4 Halteplatten-Befestigungsschrauben etwas lösen. 9. Below the table there are the mounting screws and the clamping screws. Loosen the holding plate attachment screws a little. 3 / 6 2683, 2684 mit Drehteller Änderungsdatum: 09.08.18...
Page 4
Drehteller um 1 mm absenkt. Durch das teilweise Justieren der Schrauben kann der Drehteller in der Höhe und in der Neigung ausgerichtet werden. 4 / 6 2683, 2684 mit Drehteller Änderungsdatum: 09.08.18...
Page 5
13b. Die Spannschrauben nun drehen (z.B. 0,5 Umdrehungen = eindrehen. 0,5 mm Anhebung). 13b. Turn in the clamping screws. 13a. Turn out the mounting screws (e.g. 0,5 turns = 0,5 mm lifting). 5 / 6 2683, 2684 mit Drehteller Änderungsdatum: 09.08.18...
