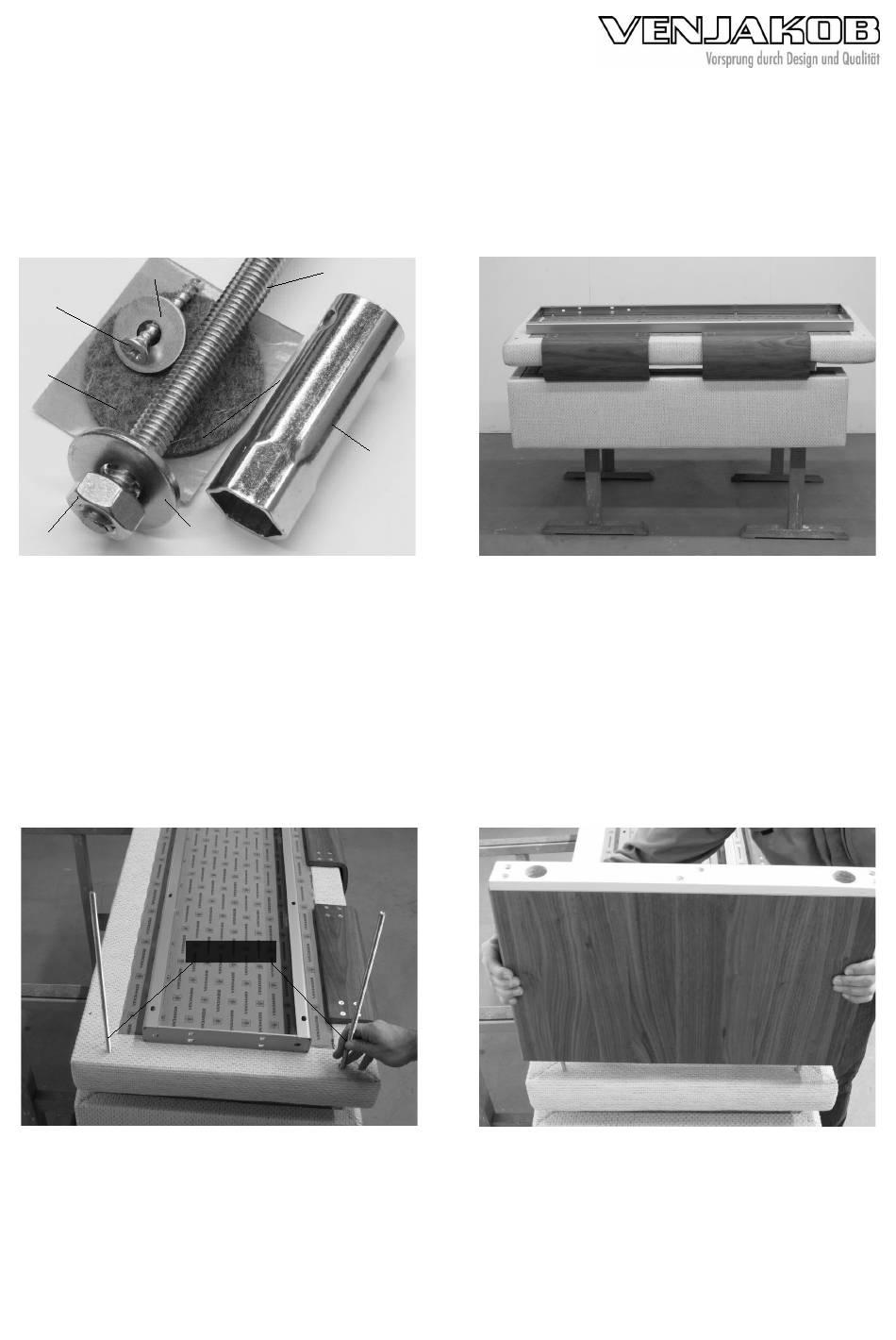

Aufbauanleitung / assembly instructions
Impuls Solitärbank P3 P2 / Impuls single bench P3 / P2
12 x
20 x 6,5
12 x
4,5 x 30
4 x Filz /
felt
4 x M10
1. Montagematerial
4x Gewindestange M10 x 400, 4x Mutter M10,
4x U-Scheibe 30 x 11, 1x Stecknuss SW17,
12x Spax 4,5 x 30, 12x U-Scheibe 20 x 6,5,
4x Filz
1. fitting material
4x threaded bar M10 x 400, 4x nut M10,
4x washer 30 x 11, 1x box nut SW17,
12x spax screw 4,5 x 30, 12x washer 20 x 6,5,
4x felt pad
3. An den Bankenden je 2 Gewindestangen (M10
x 400) mit ca. 5 Umdrehungen eindrehen.
3. Turn on each end of the bench with approx. 5
turns 2 threaded bars (M10 x 400) in.
Impuls Solitärbank P3 P2
4 x
M10 x 400
4 x
30 x 11
M10 x 400
1 x
SW17
2. Die Hauptbank auspacken und mit der Sitz-
fläche auf zwei saubere Montageböcke
ablegen.
2. Unpack the bench and put it with the
seat pad on 2 clean assembling trestles.
4. Die Wangen jeweils auf die Gewindestangen
aufstecken.
4. Put the side parts on each pair of threaded
bars.
1 / 2
Änderungsdatum: 05.01.17
