MCX4
passive speaker
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Box Pro MCX4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for thomann Box Pro MCX4

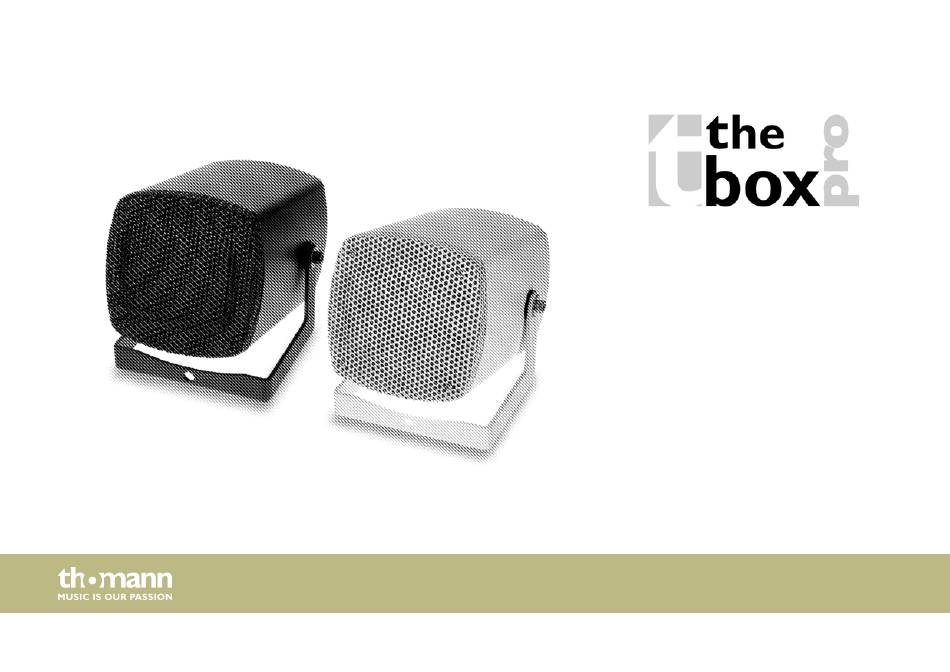

  • Page 1 MCX4 passive speaker user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 08.02.2019, ID: 443975, 443978 (V2)
  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 9 Features............................... 11 Installation..............................12 4.1 Tips on handling speakers......................15 4.2 Connections............................16 Technical specifications........................18 Plug and connection assignment....................
  • Page 4: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. passive speaker...
  • Page 5: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.
  • Page 6: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 8 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. passive speaker...
  • Page 9: Safety Instructions

    Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 10 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
  • Page 11: Features

    Features Features Special features of this multifunctional passive 4” coaxial speaker: Connection: 2 × Speaker-Twist Splashproof speaker diaphragms Delivery incl. wall mount and tilt foot bar Housing material: Aluminium continuous casting, powder-coated Colour: black (item no. 443975) or white (item no. 443978) MCX4...
  • Page 12: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 13 Installation WARNING! Risk of injury caused by falling objects Make sure that the installation complies with the standards and rules that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field.
  • Page 14 Installation NOTICE! Use of stands When mounting the device onto a stand, ensure that the stand is in a safe and stable position and that the weight of the device does not exceed the maximum permissible load capacity of the stand. passive speaker...
  • Page 15: Tips On Handling Speakers

    Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area.
  • Page 16: Connections

    Installation 4.2 Connections passive speaker...
  • Page 17 Installation 1 [INPUT] Speaker Twist input for connecting an amplifier 2 [PARALLEL OUT] Speaker Twist output for transmitting signals to another speaker box MCX4...
  • Page 18: Technical Specifications

    Technical specifications Technical specifications MCX4 Black (item no. 443975) MCX4 White (item no. 443978) Speaker 1 × 4" coaxial speaker 1 × compression tweeter with 1” voice coil Input connections Speaker Twist Output connections Speaker Twist Frequency range 120 Hz … 20 kHz Recommended high pass filter for max‐...
  • Page 19 Technical specifications MCX4 Black (item no. 443975) MCX4 White (item no. 443978) Colour Black White Dimensions (W × H × D) 170 mm × 120 mm × 120 mm Weight 2.2 kg MCX4...
  • Page 20: Plug And Connection Assignment

    Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’...
  • Page 21: Protecting The Environment

    Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
  • Page 22 Notes passive speaker...
  • Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
