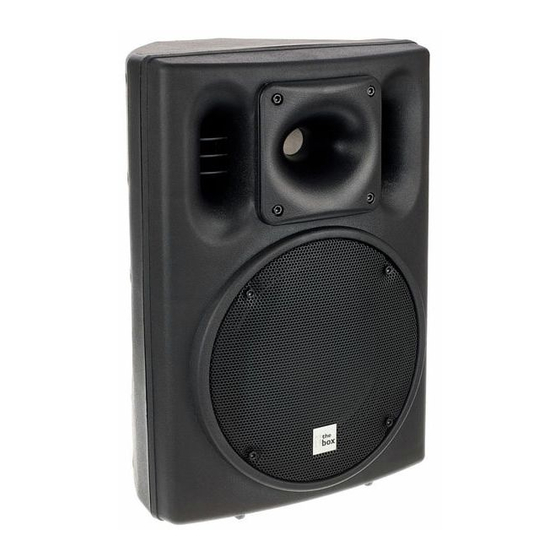

thomann PA 108 A User Manual
Hide thumbs Also See for PA 108 A:

Advertisement

Quick Links

PA 108 A
active 2
way
full-range-loudspeaker
user manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PA 108 A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for thomann PA 108 A

  • Page 1 PA 108 A active 2 full-range-loudspeaker user manual...
  • Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 20.10.2016, ID: 157977 (V2)
  • Page 3: Table Of Contents

    1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 12 Installation..............................13 4.1 Tips on handling speakers......................14 Connections and operating elements................... 15 Technical specifications........................19 Plug and connection assignment....................21 Protecting the environment......................23 PA 108 A...
  • Page 4: General Information

    General information General information This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual.
  • Page 5: Further Information

    General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly.
  • Page 6: Notational Conventions

    General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual.
  • Page 7 This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Warning – danger zone. PA 108 A...
  • Page 8: Safety Instructions

    Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid‐ ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
  • Page 9 Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug. Do not modify the mains cable or the plug. Failure to do so could result in electric shock/death or fire. If in doubt, seek advice from a regis‐ tered electrician. PA 108 A...
  • Page 10 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
  • Page 11 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. PA 108 A...
  • Page 12: Features

    Features Features Special features of this active 2-way full-range speaker box: 1 × 8" woofer Horn, dispersion 90° × 60° Output power 80 W (Bass) + 50 W (Treble) 2-band tone stack XLR in and output Switchable low cut @ 120 Hz Monitor feets available for use as floor monitor Tripod mounting flange retrofittable Standby feature...
  • Page 13: Installation

    Take care when running the cables to prevent tripping hazards. NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. PA 108 A...
  • Page 14: Tips On Handling Speakers

    Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area.
  • Page 15: Connections And Operating Elements

    Connections and operating elements Connections and operating elements PA 108 A...
  • Page 16 Connections and operating elements 1 [VOLUME] Volume control. Turn the knob clockwise to increase the volume or counterclockwise to decrease the volume. 2 [TREBLE] Treble control. Turn the knob clockwise for a brighter sound. Turn the knob counterclockwise to decrease the treble. 3 [BASS] Bass control.
  • Page 17 – switches to standby mode. LED [STANDBY] Standby operation. This LED lights up when the box – on activated power save mode – switches to Standby mode and turns off when the box is switched back to normal operation. PA 108 A...
  • Page 18 Connections and operating elements 10 [LINE/MIC] Button to select the input sensitivity of the speaker (line or microphone level). LED [MIC] The LED lights in operation when the input sensitivity is set to MIC. LED [LINE] The LED lights in operation when the input sensitivity is set to LINE. 11 [120Hz] Low cut switch to lower frequencies below 120 Hz.
  • Page 19: Technical Specifications

    60 Hz … 20 kHz (–10 dB) Sound pressure level, 1 m distance 116 dB Level adjustment Bass: ± 10 dB, 100 Hz Treble: ± 10 dB, 10 kHz Output power Bass: 80 W (RMS) Treble: 50 W (RMS) PA 108 A...
  • Page 20 Technical specifications Distortion Line: 0.02 % Microphone 0.04 % Load impedance Bass: 8, Ω Treble: 8, Ω Input impedance Line: 20 k Ω Microphone 10 k Ω Operating supply voltage AC 115230 V 50/60 Hz Fuse 115V 5 mm × 20 mm, 5 A, 250 V, slow blow 230V 5 mm ×...
  • Page 21: Plug And Connection Assignment

    In a professional environment, therefore, the balanced transmission is preferred, because this enables an undisturbed transmission of signals over long distances. In addition to the conduc‐ tors ‘Ground’ and ‘Signal’, in a balanced transmission a second core is added. This also transfers the signal, but phase-shifted by 180°. PA 108 A...
  • Page 22 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) XLR plug (unbalanced) Ground, shielding...
  • Page 23: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. PA 108 A...
  • Page 24 Notes active 2 wayfull-range-loudspeaker...
  • Page 25 Notes PA 108 A...
  • Page 26 Notes active 2 wayfull-range-loudspeaker...
  • Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
