- Page 1 PA 110 A active 2 full-range-loudspeaker user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 07.07.2017, ID: 153568...
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 12 Installation..............................13 4.1 Tips on handling speakers......................14 Connections and operating elements................... 15 Technical specifications........................ -
Page 4: General Information
General information General information This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual. -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is intended to be used in a sound reinforcement system. Use the device only as described in this user manual. Any other use or use under other operating conditions is consid‐ ered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 9 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
- Page 10 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 11 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.
-
Page 12: Features

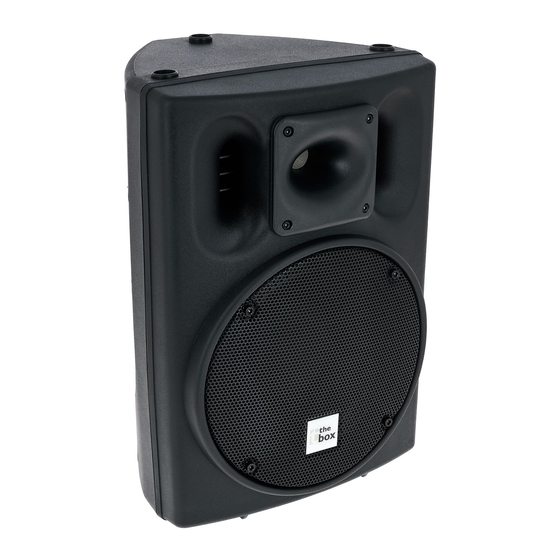

Features Features Special features of this active 2-way full-range speaker box: 1 × 10" woofer High frequency horn, dispersion 90° × 60° Output power 80 W (bass) + 50 W (tweeter) 2-band tone stack XLR in and output Switchable low cut @ 120 Hz Monitor feet supplied for use as floor monitor Tripod mounting flange Standby feature... -
Page 13: Installation
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 14: Tips On Handling Speakers
Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 15: Connections And Operating Elements
Connections and operating elements Connections and operating elements PA 110 A... - Page 16 Connections and operating elements 1 [VOLUME] Volume control. Turn the knob clockwise to increase the volume or counterclockwise to decrease the volume. 2 [TREBLE] Treble control. Turn the knob clockwise for a brighter sound. Turn the knob counterclockwise to decrease the treble. 3 [BASS] Bass control.
- Page 17 Connections and operating elements 8 [115V/60Hz — 230V/50Hz] Selector switch for the power supply. Make sure that, before activating the device, the switch position is set to the local supply voltage. 9 [STANDBY] Pushbutton to enable or disable the power saving mode. If the speaker box is in power save mode and receives no signal for 60 minutes, it switches to standby mode.
- Page 18 Connections and operating elements 10 [LINE/MIC] Button to select the input sensitivity of the speaker (line or microphone level). LED [MIC] The LED lights in operation when the input sensitivity is set to MIC. LED [LINE] The LED lights in operation when the input sensitivity is set to LINE. 11 [120Hz] Low cut switch to lower frequencies below 120Hz.
-
Page 19: Technical Specifications
Technical specifications Technical specifications System active 2 way-full-range-loudspeaker with built-in crossover Configuration 1 × 10" woofer Horn tweeter, angle of radiation 90° × 60° Connections XLR input: XLR output: Frequency range 55 Hz … 18 kHz (–3 dB) 50 Hz … 20 kHz (–10 dB) Sound pressure level, 1 m distance 117 dB Level adjustment... - Page 20 Technical specifications Distortion Line: 0.02 % Microphone 0.04 % Load impedance Bass: 8, Ω Treble: 8, Ω Input impedance Line: 20 kΩ Microphone 10 kΩ Voltage supply 115/230 V 50/60 Hz Fuse 115 V 5 mm × 20 mm, 2.5 A, 250 V, slow blow 230 V 5 mm ×...
-
Page 21: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 22 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) XLR plug (unbalanced) Ground, shielding...
-
Page 23: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 24 Notes active 2 wayfull-range-loudspeaker...
- Page 25 Notes PA 110 A...
- Page 26 Notes active 2 wayfull-range-loudspeaker...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
