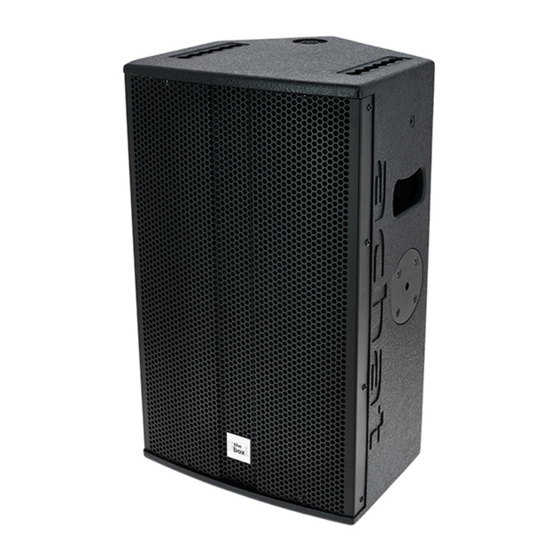

Achat 110M, Achat 112M, Achat 115M

Passive speaker

Need help?

Do you have a question about the the box pro Achat 110M and is the answer not in the manual?

Questions and answers

Summary of Contents for thomann the box pro Achat 110M

Page 1 Achat 110M, Achat 112M, Achat 115M Passive speaker...
Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 18.11.2024, ID: 214529, 230510, 277965, 230512 (V4)
Page 3 Table of contents Table of contents General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features................................9 Installation..............................11 4.1 Tips on handling speakers......................14 4.2 Hanging the speaker box......................14 4.3 Mounting bracket..........................15 4.4 Aligning the horn (only Achat 112M)..................16 Connections...............................
Page 4 Achat 110M, Achat 112M, Achat 115M Passive speaker...
Page 5 Our products and documentation are subject to a process of continuous development. They are therefore subject to change. Please refer to the latest version of the documentation, which is ready for download under www.thomann.de. 1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document.
Page 6 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
Page 7 Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use.
Page 8 Safety instructions CAUTION! Risk of injury due to heavy weight! The device is heavy. Lifting and dropping it during transport and installation can cause injuries. Make sure at least two people work together when transporting and installing the device. NOTICE! Damage to the device if operated in unsuitable ambient conditions! The device can be damaged if it is operated in unsuitable ambient conditions.
Page 9 Features Features Achat 110M (item no. 230510, Special characteristics of this passive 2-way speaker: 277965) 10-inch neodymium woofer 1-inch ferrite compression tweeter driver Beam angle 90° × 60° Connection options: – 2 × lockable Speaker Twist (INPUT/THRU) Colour: Black (item no. 230510), white (item no. 277965) Multifunctional housing M10 thread 36 mm pole flange on the bottom...
Page 10 Features Flying tracks on top of the housing and an eye on the back for tilting. Mounting for vertical suspension optionally available. Black textured paint M10 thread 36 mm pole flange on the bottom Protective cover (optional, item no. 243017) Agate 115M (item no.
Page 11 Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
Page 12 Installation WARNING! Risk of injury due to improper installation! Improper mounting can lead to serious injuries and significant damage to prop‐ erty. When installing and operating, make sure to follow the standards and regulations that apply in your country. In Germany, this is DGUV regulation 17 “Staging and Production Facilities for the Entertainment Industry”.
Page 13 Installation NOTICE! Possible property damage to adjacent devices due to magnetic fields. Speakers generate a static magnetic field. This magnetic field can affect other neighbouring units and in unfavourable cases damage them. Ensure that speakers are always a sufficient distance away from sensitive equip‐ ment that may be affected by an external magnetic field.
Page 14 Installation 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area.
Page 15 Installation Using an additional loop on the back of the box, it is possible to tilt the box. This additional loop must not solely be in charge to secure the entire suspended weight. 4.3 Mounting bracket Using the optional mounting brackets (U brackets) for vertical and horizontal mounting, the speaker can stably and securely mounted to the wall, the ceiling or a pipe clamp (half coupler), and, thus, secured to trusses.
Page 16 Installation 4.4 Aligning the horn (only Achat 112M) The Achat 112M speaker (item no. 230512) has a rotatable horn speaker. By rotating the speaker, the beam angle of the high frequencies can be adapted to the respective ambient conditions. The following table shows the beam angles based on the alignment of the speaker. Figure Alignment Horizontal...
Page 17 Installation ö & To rotate the horn speaker, proceed as follows: Loosen and remove the screws of the speaker grille on both sides and remove the speaker grille. Loosen and remove the screws of the horn speaker. Rotate the horn speaker 90°. Secure the horn speaker with the screws.
Page 18 Connections Connections Achat 110M 1 [INPUT] | Input, designed as a lockable Speaker Twist 2 [THRU] | Connection for connecting another passive speaker, designed as a lockable achat 110 M Speaker Twist Power rating 250W RMS 1000W PEAK Impedance 8 Ohm SPL IW/Im 95.5 dB Connectors...
Page 19 Connections Achat 112M, Achat 115M ö 1, 2 [INPUT/THRU] | Two Speaker Twist connections with parallel wiring on the back Additional Speaker Twist connections are located on the top and bottom side of the housing. Find more information about the wiring of the Speaker Twist connections on the rear panel of the housing.
Page 20 Technical specifications Technical specifications Achat 110M System Passive 2-way speaker Configuration 1 × 10-inch neodymium woofer (with 3-inch voice coil) 1 × 1-inch ferrite compression tweeter driver (with 1 3/8-inch voice coil) Input connections 1 × Speaker Twist Output connections 1 ×...
Page 21 Technical specifications Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) Further information Housing Wood Colour Black (item no. 230510), white (item no. 277965) Truss-capable Monitor inclination Ways 2-way Stand flange 36 mm U-bracket Optional (item no. 258813) Protective cover Optional (item no.
Page 22 Technical specifications Dimensions 50 mm M10 x 18 mm 100 mm M10 x 18 mm 215 mm 165 mm 300 mm Achat 110M, Achat 112M, Achat 115M Passive speaker...
Page 23 Technical specifications Frequency response 130.0 180.0 dBSPL 120.0 108.0 110.0 36.0 100.0 -36.0 90.0 -108.0 80.0 -180.0 Achat 110M, Achat 112M, Achat 115M Passive speaker...
Page 24 Technical specifications Achat 112M System Passive 2-way speaker Configuration 1 × 12-inch neodymium woofer (with 3-inch voice coil) 1 × 1.4-inch neodymium mid-level tweeter (with 1.4-inch voice coil) Input connections 2 × Speaker Twist Output connections 2 × Speaker Twist Frequency range 60 Hz …...
Page 25 Technical specifications Further information Housing Wood Colour Black Truss-capable Monitor inclination Ways 2-way Stand flange 36 mm Wall mount Protective cover Optional (item no. 243017) Achat 110M, Achat 112M, Achat 115M Passive speaker...
Page 26 Technical specifications Frequency response Achat 110M, Achat 112M, Achat 115M Passive speaker...
Page 27 Technical specifications Dimensions 50 mm 100 mm 127 mm 135° 120° 360 mm 365 mm 83,5 mm Achat 110M, Achat 112M, Achat 115M Passive speaker...
Page 28 Technical specifications Achat 115M System Passive 2-way speaker Configuration 1 × 15-inch neodymium woofer (with 4-inch voice coil) 1 × 1.4-inch neodymium mid-level tweeter (with 1.4-inch voice coil) Input connections 2 × Speaker Twist Output connections 2 × Speaker Twist Frequency range 60 Hz …...
Page 29 Technical specifications Further information Housing Wood Colour Black Truss-capable Monitor inclination Ways 2-way Stand flange 36 mm Wall mount U-bracket Optional (item no. 258815) Protective cover Optional (item no. 249422) Achat 110M, Achat 112M, Achat 115M Passive speaker...
Page 30 Technical specifications Frequency response Achat 110M, Achat 112M, Achat 115M Passive speaker...
Page 31 Technical specifications Dimensions 90 mm 218 mm 50 mm 135° 120° 436 mm 438 mm 59 mm Achat 110M, Achat 112M, Achat 115M Passive speaker...
Page 32 Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’...
Page 33 Protecting the environment Protecting the environment Disposal of the packing material Environmentally friendly materials have been chosen for the packaging. These materials can be sent for normal recycling. Ensure that plastic bags, packaging, etc. are disposed of in the proper manner. Do not dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
Page 34 When disposing of the device, comply with the rules and regulations that apply in your country. You can also return your old device to Thomann GmbH at no charge. Check the current conditions on www.thomann.de.
