Summary of Contents for thomann PA302 A

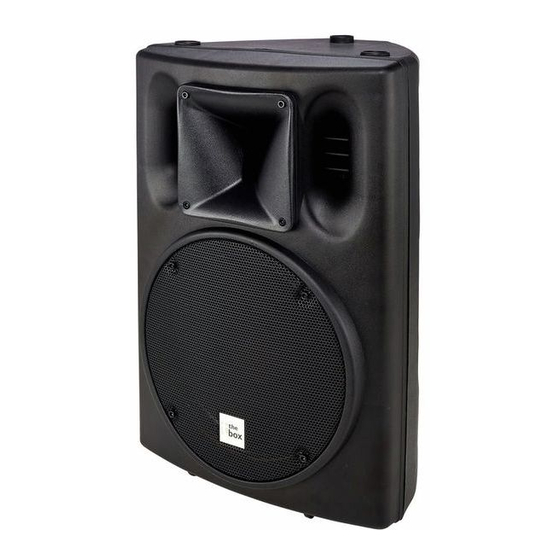

- Page 1 PA302 A active 2 way full-range speaker user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 19.06.2012...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 7 Features............................... 11 Installation..............................12 4.1 Pin assignment..........................13 4.2 Tips on handling speakers......................14 Connections and operating elements................... 15 Technical specifications........................19 Protecting the environment......................21 PA302 A... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual. - Page 5 NOTICE! This combination of symbol and signal word indicates a possible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. PA302 A...
- Page 6 General notes Warning signs Type of danger Warning – danger zone. active 2 way full-range speaker...
-
Page 7: Safety Instructions
Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. PA302 A... - Page 8 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug.
- Page 9 If this is not possible, keep a greater distance or use suffi‐ cient ear protectors. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. PA302 A...
- Page 10 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.
-
Page 11: Features
1 × 44 mm titanium driver (50° … 100° × 55°) Output power 300 W (bass) + 100 W (tweeter) 2-band tone stack XLR in and output Switchable low cut @ 120 Hz Tripod mounting flange Monitor feet supplied for use as floor monitor PA302 A... -
Page 12: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 13: Pin Assignment
XLR connections for signal in XLR mounting sockets serve as signal inputs. XLR mounting plugs provide the output signals. and outputs Drawing and table indicate the XLR pin assignment. Balanced wiring: Ground, shielding Positive signal (+) Negative signal (–) PA302 A... -
Page 14: Tips On Handling Speakers
Installation Unbalanced wiring: Ground, shielding Signal Bridged to pin 1 4.2 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 15: Connections And Operating Elements
Connections and operating elements Connections and operating elements ö & PA302 A... - Page 16 Connections and operating elements 1 VOLUME Volume control. Turn this knob clockwise to increase the volume. Turn it counter-clockwise to reduce the volume. 2 BASS Bass control. Turn this knob clockwise to increase the low frequencies. Turn it counter-clockwise to attenuate them. 3 TREBLE Treble control.
- Page 17 10 LED LINE This LED lights up if the input sensitivity is set to LINE (line level). 11 LED MIC This LED lights up if the input sensitivity is set to MIC (microphone level). PA302 A...
- Page 18 Connections and operating elements 12 120Hz Use this switch to attenuate the low frequencies below 120 Hz. The function reduces the transmission of impact noise and so increases the woofers life time. 13 CLIP Indicates clipping. If this LED flickers or lights up, the input level is too high. active 2 way full-range speaker...
-
Page 19: Technical Specifications
XLR input XLR output Power consumption 150 W Output power Woofer: 300 W Tweeter: 100 W Frequency response 50 Hz … 18 kHz (–3 dB) 40 Hz … 18 kHz (–10 dB) Sound pressure level (1 m) 120 dB PA302 A... - Page 20 Technical specifications Level adaptation Bass: ± 12 dB, 100 Hz Treble: ± 12 dB, 10 kHz Line: 0.02 % Microphone: 0.04 % Load impedance Woofer: 8 Ω Tweeter: 8 Ω Input impedance balanced: 20 kΩ unbalanced: 10 kΩ Operating voltage supply AC 230 V , 50 Hz AC 115 V...
-
Page 21: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. PA302 A... - Page 22 Notes active 2 way full-range speaker...
- Page 24 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
