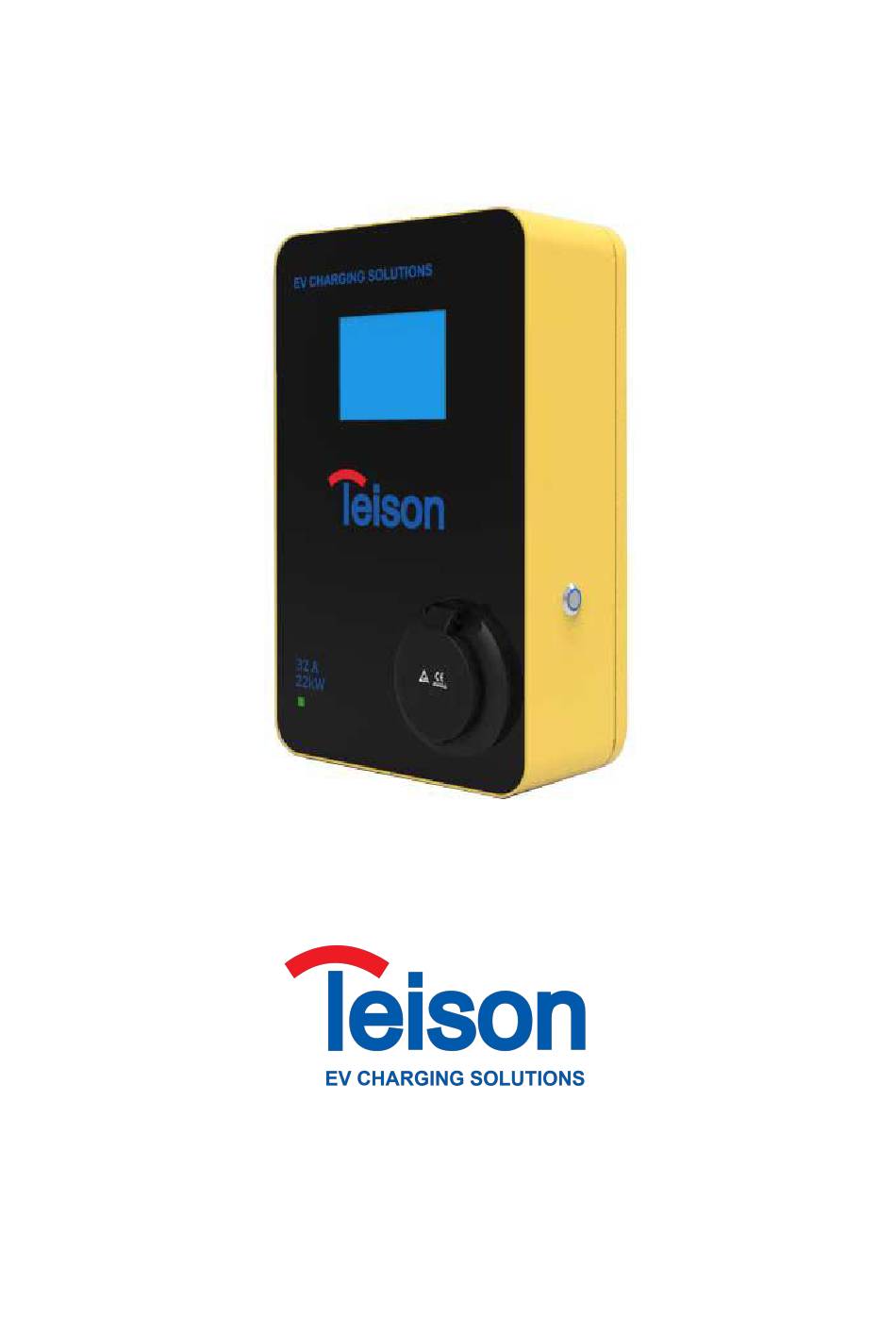

- Page 1 TS-EVC22-001S 22 KW EV CHARGING STATION Manual Yangzhou Teison New Energy Co., Ltd.
-
Page 2: Table Of Contents
Content Safety Guidance..................3 Warning....................3 Precaution.................... 3 1. Product View 1.1 Appearance................4 Reference Standard............. 5 Product Specification............5 Product Package..............5 2. Technology Index 2.1 Environmental Performance............ 7 2.2 Electrical Properties..............7 2.3 Mechanical Properties...............7 2.4 Product Function................ 8 3.Instructions and Status Display............8 Please check points before use............ -
Page 3: Safety Guidance
Safety Guidance Warning Strictly forbidden for non-professionals to modify, disassemble or repair the equipment. External wires or adapters/converters are strictly prohibited. Stop using the device immediately when charging failure or abnormality occurs. It is strictly forbidden to have water contact plugs on your hands. ... -
Page 4: Appearance
1.Product Descriptions 22KW AC EV CHARGING STATION is an electric car charging equipment.Its appearance is shown in Figure 1. The product meets the requirements of IEC 61851-1:2017 AC charging system. The upper end is main body The upper end is main body equipped with socket according to EN 62196-2:2017. -
Page 5: Reference Standard
SAE-J1772-2 SAE Electric Vehicle and Plug in Hybrid Electric Vehicle Conductive Charge Coupler Specification Subject Specification TS-EVC22-001S Item No. Product 22kw AC EV CHARGING STAION(With socket) Charging Recommend to use cable no less than 6mm² station inlet... - Page 6 manual in it. Charging principle Figure3.Charging principle Charging Charging Successful CP signal voltage① Explanation status connection charging or not connected Status1 disconnect 12±1V Fail to connect to the vehicle Status2 disconnect 9±1V S1 switches to connected state, detected. Status3 connect 6±1V Both OBS and power supply are...
-
Page 7: Technology Index
2.Technology Index 2.1 Environmental performance Item Specification Working temperature -30℃~~60℃ Storage temperature -40℃~~80℃ Working humidity 5%~~95%，No condensation Charging station IP65 Altitude ≤2000m Salt spray test Meet IEC 61851-1：2017 Atmospheric pressure 80kPa~101kPa Temperature and Meet IEC 61851-1：2017 humidity cycle Note： Avoided being used in the environment of corrosive liquids, flammable dust, strong corrosive environment 2.2 Electrical Properties Specification... -
Page 8: Product Function
2.4 Product Function Specification Item Output current 0-32A Leakage Protection（AC 30mA+DC 6mA） Support Under voltage protection Support Over voltage protection Support Over temperature protection Support Over current protection Support Short circuit protection Support Temperature check Support Screen display Support 3. Instructions and Status Display Please check before use 1. -
Page 9: How To Stop Charging
insert the charging Remove the protective open the vehicle plug into the socket cap of plug socket cover plug Press start button Start charging Ensure connection OK How to stop charging 1. Method 1 Put the cable on the Close the cover of vehicle Press the power station holder socket, close the window... -
Page 10: Troubleshooting
Statue of Current voltage plug plug Current gear Status of Charging charging Charging Current gear Charging Charging time 4.Fault Resolution Fault： screen display： resolution： Leakage Protection Stop charging immediately. The relay is cut off and the red light flashes. You need to manually power it back Over temperature protection When the temperature is... -
Page 11: Installation Instructions
gear position. When the temperature is lower than 75 ° C, the gear position will automatically recover. Overcurrent protection If the maximum current is higher than the limited, the relay will be permanently cut off, the red light will start to flash, and it needs to be manually powered back on. -
Page 12: Installation Steps
5.2 Installation steps a.Charging station inlet connection It is recommended to use power cable no less than 5*6mm², no need to open the entire back cover, just open the small square on the rear cover to connect. b. Installation and Fixation of Charging Station Please confirm the installation location and mark it (using the bracket strip). -
Page 13: Installation Precautions
After Sale service: Teison New Energy company, ensure the production lines of EV charging line are through strict quality inspection, within two years from the date of purchase under the correct use of caused by product quality problems, the company will give users the quality maintenance. - Page 14 Warranty card: Information register Product name Model Warranty date User name Contact phone Mail address Dealers shop Email address...
- Page 16 Yangzhou Teison New Energy Co.,Ltd. Add: Bowuguran Rd #.547, Yangzhou , China,225111 Website: www.evs-cn.com...
