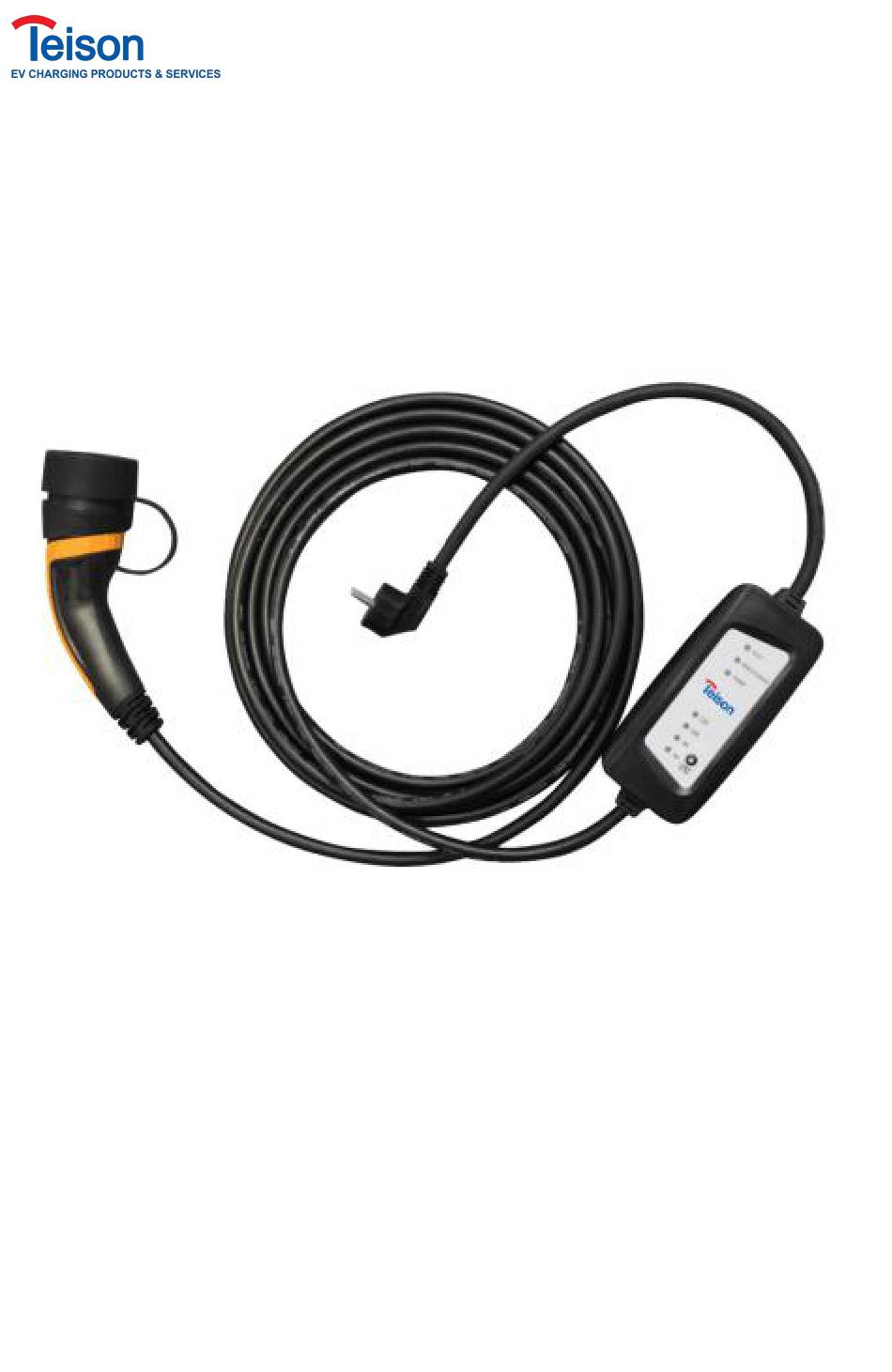

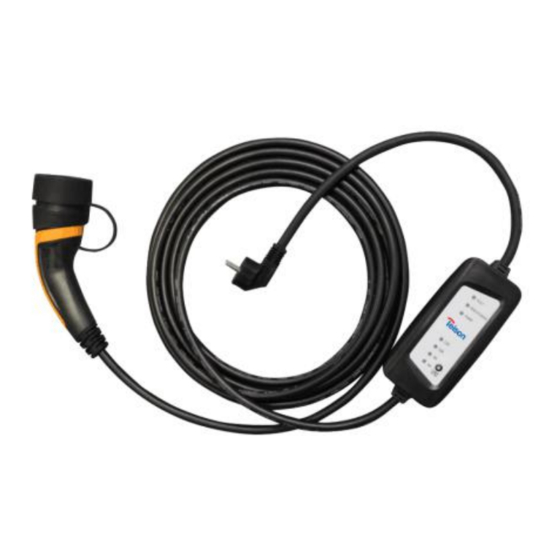

- Page 1 Portable EV Charging Cable TS-PEC001 Product Manual Please read all instructions before using, operating or maintaining. Charging make life better...
-
Page 2: Table Of Contents
Portable EV Charging Cable Contents Product Descriptions ..................3 2.Product Features and Specifications.............4 3.LED display status ..................6 4.Product instructions ..................7 4.1 Precautions ................... 7 4.2 How to start charging ................8 4.3 How to stop charging................9 5.Security Statements ..................10 6.Warranty......................10... -
Page 3: Product Descriptions
Portable EV Charging Cable 1.Product Descriptions Portable EV Charging Cable is so convenient , portable, and plug-and-play. This product is independently researched and accordance with the latest national standards. It has good performance when charging. There are more electric protections and direct human-computer interaction interface. -
Page 4: Product Features And Specifications
Portable EV Charging Cable 2.Product Features and Specifications Surface Design... - Page 5 Portable EV Charging Cable Item Portable EV Charger(Level 2) Model No. TS-PEC001 Install Portable , plug and play Output Current 6A min.- 16A max. Rated Power 3.8kw Input Voltage AC 166-288V 50/60Hz Ingress Protection IP65 Output Detection 1. Short circuit protection 2.
-
Page 6: Led Display Status
Portable EV Charging Cable 3.LED display status human-computer interaction interface LED LIGHT INDICATION Normal Short Circuit Protection Flash Once Leakage Current Protection Flash Twice Input Wiring Defect Fault Flash Thrice Plug Overheat Flash Quartic Over Current Protection Flash Quintic CP Signal Defect Flash Sextic Control Box Overheat Flash... -
Page 7: Product Instructions
Portable EV Charging Cable Charging Ready/Charge Flash Connected But Not Charging Not Connected Power Input Normal Flash Input Over Voltage Input Under Voltage Output Current: 6A Flash Output Current: 7A Output Current: 8A Flash Output Current: 9A Output Current: 10A Flash Output Current: 11A Output Current: 12A... -
Page 8: How To Start Charging
Portable EV Charging Cable b. Power-supply side input cable should be at least 3x2.5mm ² （recommended 3x4mm²）.It is suggested that the power distribution is done by the professionals. c. Do not submerge the control box or charging connector in water, and don't step on, pull, fold or knot the cable. -
Page 9: How To Stop Charging
Portable EV Charging Cable WARNING Please make sure the rated current of the socket, and adjust the charging current , be sure to shall not exceed this value. Do not place the charging cable near high temperature object when charging. 4.3 How to stop charging Step 1. -
Page 10: Security Statements
6.Warranty Teison New Energy company, ensure the production of portable charging line are through strict quality inspection, within one year from the date of purchase under the correct use of caused by product quality problems, the company will give users the quality maintenance. - Page 11 Portable EV Charging Cable Yangzhou Teison New Energy Co.,Ltd. Add: Bowuguran Rd #. 547, Yangzhou , China,225111 Website: www.evs-cn.com...
