- Page 1 TS-EVC07-001S 7KW EV CHARGING STATION Manual Yangzhou Teison New Energy Co., Ltd.
-
Page 2: Table Of Contents
Content Safety Guidance..................3 Warning....................3 Precaution.................... 3 1. Product View 1.1 Appearance................4 Reference Standard............. 5 Product Specification............5 Product Package..............5 2. Technology Index 2.1 Environmental Performance............ 7 2.2 Electrical Properties..............7 2.3 Mechanical Properties...............7 2.4 Product Function................ 8 3.Instructions and Status Display............8 Please check points before use............ -
Page 3: Safety Guidance
Safety Guidance Warning Strictly forbidden for non-professionals to modify, disassemble or repair the equipment. External wires or adapters/converters are strictly prohibited. Stop using the device immediately when charging failure or abnormality occurs. It is strictly forbidden to have water contact plugs on your hands. ... -
Page 4: Appearance

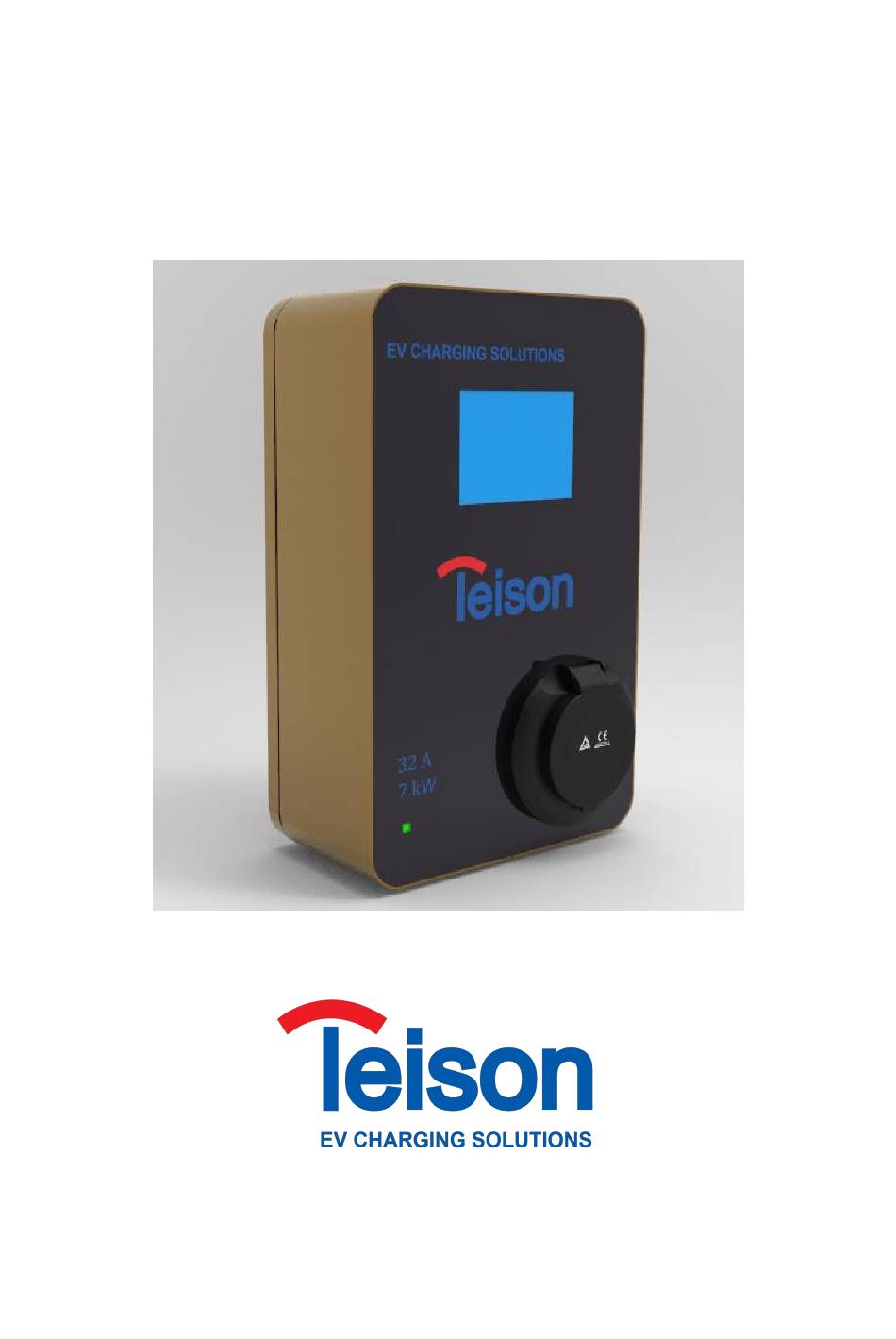

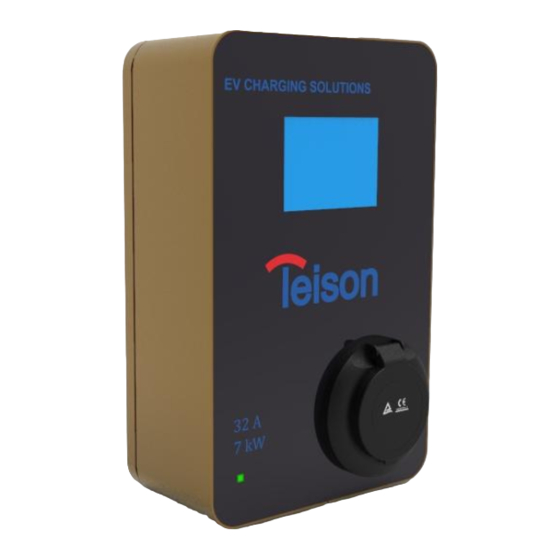

1.Product Overview 7KW AC EV CHARGING STATION is an electric car charging equipment.Its appearance is shown in Figure 1. The product meets the requirements of IEC 61851-1:2017 AC charging system. The upper end is main body equipped with socket according to EN 62196-2:2017. -
Page 5: Reference Standard
Reference Standard Standard No. Standard No. Electric vehicle conductive charging system – Part 1: 61851-1:2017 General requirements Plugs, socket-outlets, vehicle connectors and vehicle inlets – 62196-2:2017 Conductive charging of electric vehicles – Part 2: Dimensional compatibility and interchangeability requirements for a.c. pin and contact-tube accessories SAE-J1772-2 SAE Electric Vehicle and Plug in Hybrid Electric Vehicle Conductive Charge Coupler... - Page 6 Charging Principle Figure 3.Charging Principle Charging Charging Successful CP signal voltage① Explanation status connection charging or not connected 12±1V Status1 disconnect Fail to connect to the vehicle 9±1V Status2 disconnect S1 switches to connected state, detected. 6±1V Status3 connect Both OBS and power supply are working condition...
-
Page 7: Technology Index
2.Technology Index 2.1 Environmental Performance Item Specification Working temperature -30℃~~60℃ Storage temperature -40℃~~80℃ Working humidity 5%~~95%, No condensation Charging station IP65 Altitude ≤2000m Salt spray test Meet IEC 61851-1：2017 Atmospheric pressure 80kPa~101kPa Temperature and Meet IEC 61851-1：2017 humidity cycle Note： Avoided being used in the environment of corrosive liquids, flammable dust, strong corrosive environment 2.2 Electrical Properties... -
Page 8: Product Function
2.4 Product Function Specification Item Output current 0-32A Leakage Protection（AC 30mA+DC 6mA） Support Under voltage protection Support Over voltage protection Support Over temperature protection Support Over current protection Support Short circuit protection Support Temperature check Support Screen display Support 3. Instructions and Status Display Please check points before use 1. -
Page 9: How To Stop Charging
insert the charging Remove the open the vehicle plug into the socket protective cap of plug socket cover press the start start charging Ensure button connection OK How to stop charging 1.Method 1 Put the cable on the Press the power Close the cover of station holder button, pull out the... -
Page 10: Troubleshooting
Status of Charging capacity charging Charging status Current Voltage /Current Charging Time 4.Troubleshooting Trouble： Screen display： Resolution： Leakage Protection Stop charging immediately. The relay is cut off and the red light flashes. You need to manually power it back Over temperature protection When the temperature is higher than 85 °C, the charging will stop automatically, the relay will be... -
Page 11: Installation Instructions
Over-current protection If the maximum current is higher than the limited, the relay will be permanently cut off, the red light will start to flash, and it needs to be manually powered back on. Short circuit protection The fuse is blown and then the power supply is no longer continued. -
Page 12: Installation Precautions
b.Installation and Fixation of Charging Station Please confirm the installation location and mark it (using the bracket strip). The center of the charging station is 45 inches from the ground at least. Use the electric drill to align the position of the mark and make two holes with a diameter of Φ8. -
Page 13: After Sale Service
After Sale service: Teison New Energy company, ensure the production lines of EV charging are through strict quality inspection, within two years from the date of purchase under the correct use of caused by product quality problems, the company will give users the quality maintenance. - Page 14 Warranty card: Information register Product name Model Warranty date User name Contact phone Mail address Dealers shop Email address...
