Instructions - Parts List
16, 55 or 275 Gallon
Stationary or Mobile Fluid
Dispense Package
For dispensing non-corrosive or non-abrasive lubricants in stationary or mobile
installations. For professional use only.
Important Safety Instructions
Read all warnings and instructions in this
manual and the Fire-Ball
instruction manual. Save these
instructions.
Models, page 2
Technical Data and Wetted Parts information for Fire-Ball Pumps used in these packages is provided in the
related pump manuals:
•

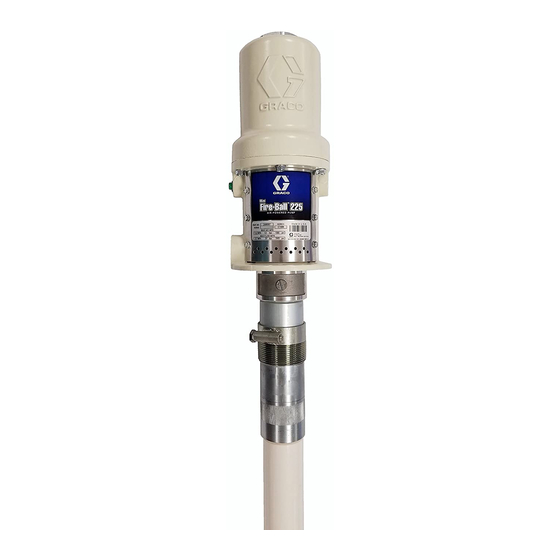

248097 - 16 gallon and 55 gallon, 3:1 - Instruction Manual 309868
•
203872 - 16 gallon and 55 gallon, 5:1 - Instruction Manual 309868
•
222095, 222065 - 55 gallon 10:1 - Instruction Manual 306726
•
204254, 203857 - 55 gallon 5:1 - Instruction Manual 306518
•
222087 - 275 gallon 5:1 - Instruction Manual 306518
®
Pump
307883L
EN
Advertisement
Table of Contents
Related Manuals for Graco 248097
Summary of Contents for Graco 248097
- Page 1 Technical Data and Wetted Parts information for Fire-Ball Pumps used in these packages is provided in the related pump manuals: • 248097 - 16 gallon and 55 gallon, 3:1 - Instruction Manual 309868 • 203872 - 16 gallon and 55 gallon, 5:1 - Instruction Manual 309868 •...
- Page 2 Models Models 3:1 Fire-Ball 225 Pumps - 540 psi (37 bar, 3.7 MPa) Maximum Working Pressure Bung Model No. Description Type* Approved Hose Kit Cover Adapter 246904 16 gallon, open drum 24M262 246906 ...
- Page 3 Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclama- tion point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual, refer back to these Warnings. Product-specific hazard symbols and warnings not covered in this section may appear throughout the body of this manual where applicable.
-
Page 4: Fire And Explosion Hazard
Warnings WARNING FIRE AND EXPLOSION HAZARD When flammable fluids are present in the work area, such as gasoline and windshield wiper fluid, be aware that flammable fumes can ignite or explode. To help prevent fire and explosion: • Use equipment only in well ventilated area. •... -
Page 5: Installation
• Always use genuine Graco Parts and Accessories, trigger the dispense valve. available from your Graco distributor. CE Identification Label... - Page 6 NOTE: The typical installation shown in F . 3 is only an installation guide; it is not an actual system design. Contact your Graco distributor for assistance in designing a system to suit your needs. See X on page X for the Mobile Mounting installation.
- Page 7 Installation Air Line and Accessories • Install an air line filter (H) to remove harmful dirt and contaminants from your compressed air supply. NOTE: Install the air line accessories in the order shown in the Typical Installation in F . 2, page 5. To order a 250 psi (17.5 bar, 1.75 MPa) maximum working pressure air filter, order a Part Number NOTICE...
- Page 8 Typical Installation for Mobile Mountings NOTE: The typical installation shown in F . 5 is only an installation guide; it is not an actual system design. Contact your Graco distributor for assistance in designing a system to suit your needs. Hose Reel Truck Bed...
- Page 9 Installation Open Drum, Cover-Mounted Pumps 4. Align the drum cover eyelets (Q) with the hold down rods (T), install the cover brackets (S) and wing nuts 1. Remove the original drum cover. (R) and tighten securely (see F . 6). 2.
-
Page 10: Operation
Installation Start-up Never exceed 180 psi (12.6, 1.2 MPa) maximum air && pressure to these pumps. Using higher air pressure will cause the pump to over pressurize which may result in component rupture and cause serious bodily injury. 1. Close the air regulators and bleed-type master air valves to all but one pump. - Page 11 222063 Hose Kit for Fire-Ball 225 and 300 Pump Ref. Part No. Description Ref. Part No. Description 248097 PUMP, 3:1 Ratio Fire-Ball; see 309868 203320 AIR HOSE, 3/8” ID, cpld, 3/8-14 npt 222063 HOSE AND FITTING KIT; see Hose Kit (mbe), 72”...
- Page 12 Parts 5:1 Fire-Ball 300 Parts 5:1 Fire-Ball 300 55-Gallon Open Drum Model 225642, 241047 16-Gallon Open Drum Ref. Part No. Description Model 225094, 241046 203872 PUMP, 5:1 Ratio Fire-Ball; see 309868 for parts 222063 HOSE AND FITTING KIT; see parts Ref.
- Page 13 Parts 5:1 Fire-Ball 300 55-Gallon Open Drum 55-Gallon Closed Drum Model 206655, 241051 Model 204264, 241052 Ref. Part No. Description Ref. Part No. Description 203857 PUMP, 5:1 Ratio Fire-Ball; see 306518 204254 PUMP, 5:1 Ratio Fire-Ball; see 306518 for parts for parts 222063 HOSE AND FITTING KIT;...
- Page 14 Parts 10:1 Fire-Ball 425 Parts 10:1 Fire-Ball 425 55-Gallon Open Drum Model 225782, 241054 222066 Hose Kit for Fire-Ball 425 Pump Ref. Part No. Description Ref. Part No. Description 222065 PUMP, 10:1 Ratio Fire-Ball; see 205418 AIR HOSE, 1/2” ID, cpld, 1/2-14 npt 306726 for parts (mbe), 72”...
- Page 15 Parts 10:1 Fire-Ball 425 CE Installation Kits 55-Gallon Closed Drum Model 222067, 241057 Models: 24M262, 24M263, 24M264, 24M266, 24M269, 241170, 241046, 241047, 241048, 241049, 241050, 241051, 241052, 241054, 241055, 241056, 241057 Ref. Part No. Description 222095 PUMP, 10:1 Ratio Fire-Ball; see See CE Label Installation instructions, page 5.
-
Page 16: Graco Standard Warranty
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
