com 5xx -Ex and com 61x -Ex:
x.
com 50x –Ex) respectively the safety plug

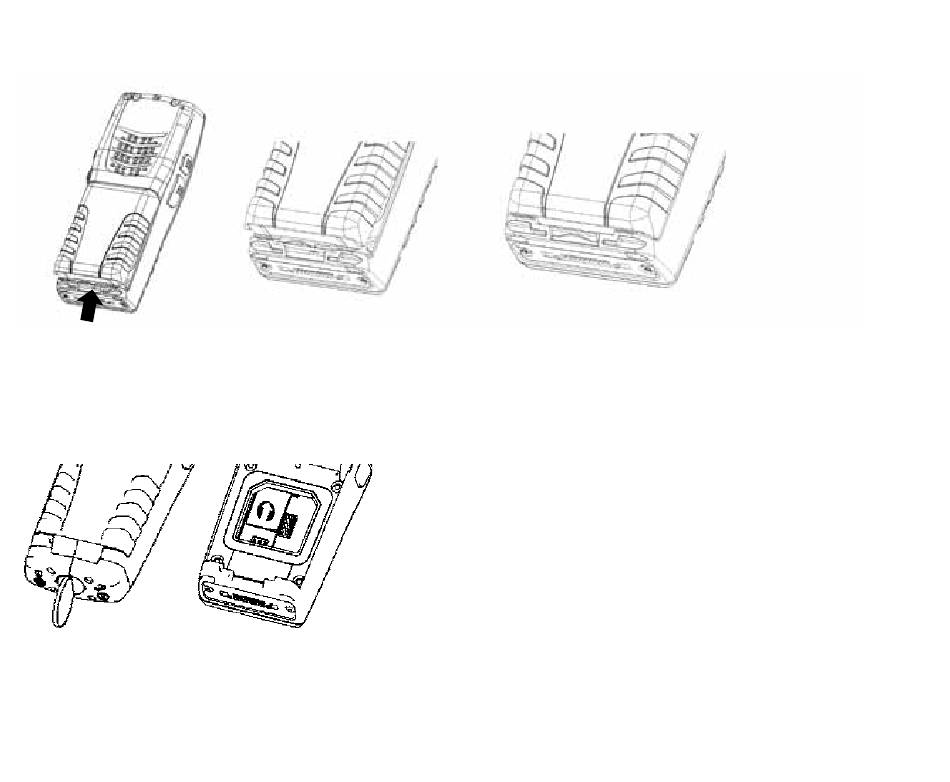

After removing the charging socket cover (
x. x. x.
( com 60x –Ex) - not applicable for com 51x -Ex and com 61x -Ex -, turn the mobile
phone.

7.1.2 Inserting the battery

Proceed as follows to insert the battery: Insert the battery module with the two catches (located
at the top of the battery) placed in the recesses in the mobile phone. Then press the bottom of
24
