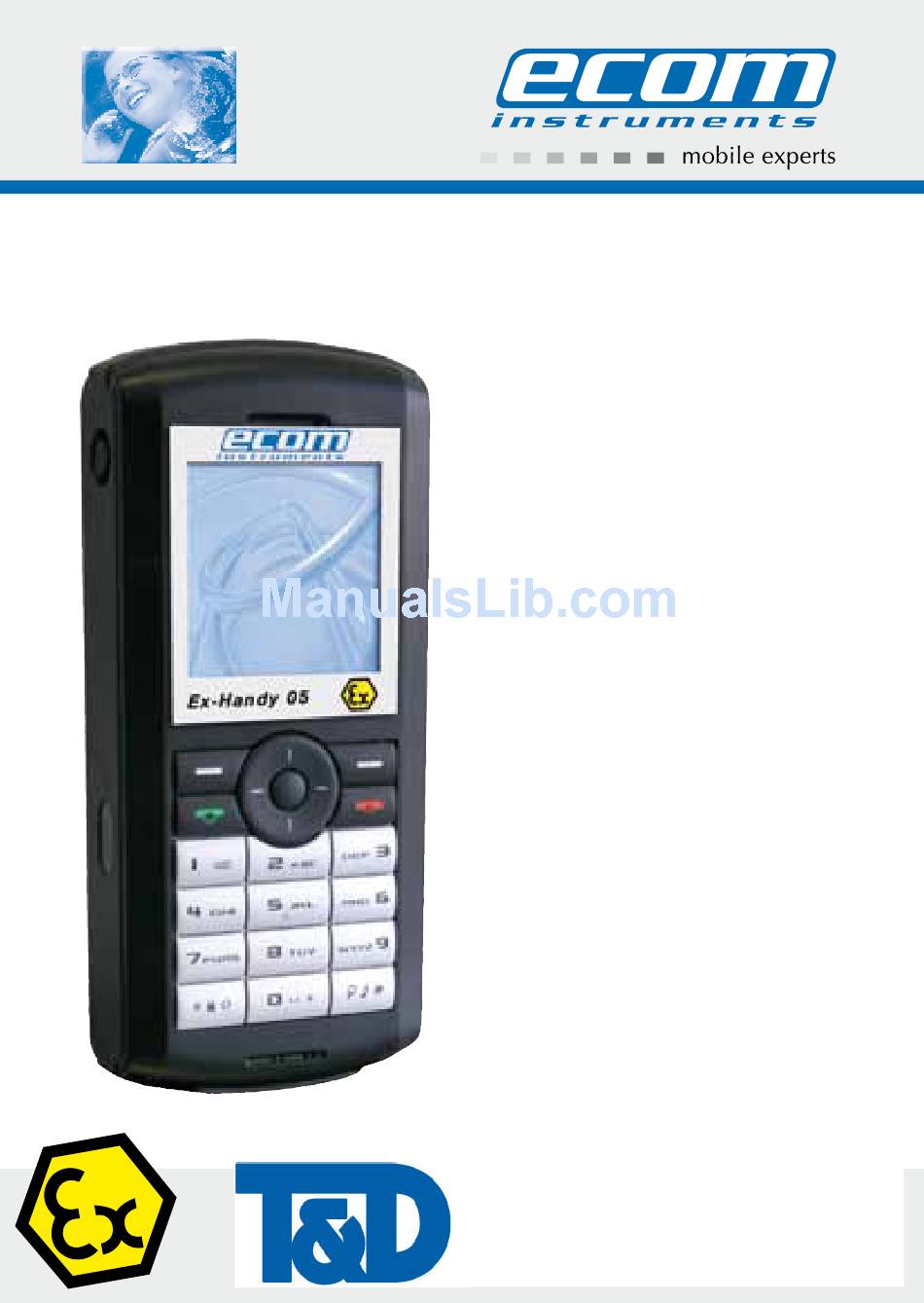

Page 1: Safety Instructions
Ex-Handy 05 Safety instructions WWW.CABLEJOINTS.CO.UK THORNE & DERRICK UK TEL 0044 191 490 1547 FAX 0044 477 5371 TEL 0044 117 977 4647 FAX 0044 977 5582 WWW.THORNEANDDERRICK.CO.UK... -
Page 2: Table Of Contents
Contents 1. Application 2. Safety precautions 3. Faults and damage 4. Safety regulations 5. Ex-Data 6. Specifications 7. Battery 8. Repair 9. Cleaning, maintenance and storage 10 . Disposal 11. Warranty and liability 12. Troubleshooting 13. EC Declaration of Conformity 13. EC-Type Examination Certificate Note: The current operating instructions, safety instructions, the EC Declaration of Conformity and the EC Type Examination Certificate can be downloaded from the relevant product page at www.ecom-ex.com, or alternatively they can be reque- sted directly from the manufacturer. -
Page 3: Application
1. Application The Ex-Handy 05 is an intrinsically safe, splash water-, dust- and impact-resistant mobile phone for industrial application in areas with an increased risk of explosion in zones 1, 2 and 22 in accordance with directive 1999/92/EC (ATEX 137). 2. Safety instructions These safety instructions contain information and safety regulations which are to be observed without fail for safe operation in the described conditions. Non- observance of this information and these instructions can have serious conse- quences or it may violate regulations. Please read these safety instructions carefully before starting to use the unit! In case of any doubt (in the form of translation or printing errors) the German langu- age operating instructions shall apply. 3. Faults and damage If there is any reason to suspect that the safety of the unit has been impaired, it must be withdrawn from use and removed immediately from the Ex-area. Mea- sures must be taken to prevent it from being restarted accidentally. The safety of the device may be compromised, if, for example: - there is visible damage to the housing. - the unit has been subjected to excessive loads. - the unit has been improperly stored. - the unit has been damaged in transit. - unit markings or inscriptions are illegible. - malfunctions occur. - permitted limit values have been exceeded. 4. Safety regulations Use of the explosion-proof mobile phone Ex-Handy 05 assumes that the operator complies with conventional safety regulations and has read the certificate in order to eliminate faulty operation of the unit. -
Page 4: Ex-Data
EC-Type Examination Certificate No.: ZELM 07 ATEX 0337 II 2 G Ex ib IIC T4 Ex-Designation: II 3 D Ex ibD 22 IP54 T55°C Approved for zone 1, device group II, explosion group IIC (explosive gases, vapours or mist), temperature class T4. Approved for zone 22, device group II, dust Ex-atmosphere, max. surface tempe- rature (for surfaces on which dust can develop) + 55 °C. The user assumes responsibility for ensuring that the Ex-Handy 05 is used in explosive atmospheres in accordance with the applicable regulations! 6. Specifications Networks: Triband GSM 900 / 1800 / 1900 MHz Data transfer: GPRS class 10 (up to 62.4 kbps) Display: Passive matrix display with 65,536 colours (resolution 128 x 128 pixels) Power supply:... -
Page 5: Battery
SAR: GSM 900: 0.219 W/kg DCS 1800: 0.021 W/kg Permissible maximum value for both frequencies: 2,000 W/kg 7. Battery 7.1 Changing the battery The battery module Ex-AMH 05 of the Ex-Handy 05 may only be changed outside the Ex-area. Only those battery modules which are approved by the manufacturer may be used. Other battery modules may not be taken into the Ex-area. Removing the battery module Proceed as follows to remove the rear cover (when replacing the battery): - R emove the 6 screws using the screwdriver provided and then extract the battery module from the phone. - W hen changing the battery module the battery compartment and the circulating seal are to be examined for any contamination and cleaned, if necessary, with a brush or by using blasts of compressed air. - Insert the new battery module into the phone. - S ecure the battery module in place with the 6 screws, using the prescribed torque (0.15 Nm). - Dispose of the battery module in accordance with local regulations. 7.2 Charging the battery Your phone is supplied with power via a rechargeable battery. Before a new batte- ry can be used for the first time it must be charged for at least 4 hours. Full battery performance is only obtained after a few operating cycles. If the battery charge... - Page 6 Caution! Only charge the battery outside the Ex-area using the prescribed chargers (see point 4)! Proceed as follows to charge the battery: Connect the charger to a wall outlet. Open the side cover. Carefully insert the charger plug into the charging socket located on the side without twisting it or using excess pressure. Please make sure that the following illustration on the charger plug is poin- ting in the same direction as the phone‘s display. The phone‘s battery will now be charged. The scrolling battery symbol indicates that the battery is being charged. When the battery is fully charged the charging process stops automatically. Remove the charger plug from the charging socket.
- Page 7 NOTE: - Do not short-circuit the battery. - The casing of the battery should not be opened under any circumstances. - O nly use chargers and batteries from ecom instruments GmbH. The use of other chargers or batteries is not permitted. - I f you do not intend using the phone for a prolonged period, you should remove the battery. - Do not connect your charger to the phone if the battery is not inserted. High quality lithium-ion batteries are used in your Ex-Handy 05. These batteries have numerous advantages in everyday use, such as a low weight and high capa- city in a nevertheless compact construction. In addition these batteries also exhibit practically no memory effect. However, these batteries are susceptible to a natural ageing process which impairs their functionality. Modern batteries today have a lifespan of around 500 charge cycles, which, when used daily, corresponds to a service life of appro- ximately 2 years. The ageing process increases rapidly after this period, which means that the batteries are deemed technically defective after 500 charge cycles. Moreover, the batteries could blow up and cause irreparable damage to your device in a worst case scenario. For this reason rechargeable batteries with lithium cells should be replaced after 2 years at the latest or after reaching a battery capacity that is 50% of its initial value. Note: The battery used in this unit poses a fire hazard and can cause chemical injuries if it is used improperly. Neither the battery nor the battery cells should be opened or disassembled and they should not be burned or exposed to tempera- tures exceeding 100°C. 7.3 Safety precautions Damaged batteries and chargers should be removed from use and sent to ecom instruments GmbH for inspection. Caution: - E xtreme temperatures can have an adverse effect on charging the battery module Ex-AMH 05.
-
Page 8: Repair
- A battery will not return to its full capacity after a prolonged period of storage if it was fully charged at the beginning of the storage period or if it has been sto- red in a particularly warm environment. Ideal conditions would be a 40% charge level at the start of the storage period and an ambient temperature of 0 °C. The environment should be as dry as possible. - If the battery is depleted, charge it for approx. 30 minutes before storing it. - Never stack multiple batteries on top of one another during storage. 8. Repair Repairs are to be conducted by ecom instruments GmbH or by personnel or service centres authorised by ecom instruments GmbH, because the safety of the unit needs to be tested after repairs are implemented. Use instead of the currently specified text. 9. Cleaning, maintenance and storage - O nly use a suitable cloth or sponge to clean the unit. Do not use any solvents or abrasive cleaning agents when cleaning. - I t is recommended that you have the functionality and accuracy of the unit inspected by the manufacturer every two years. - T he battery should be removed from the phone during prolonged periods of storage. - D o not exceed the permissible storage temperature range of -20 °C... 50 °C! 10. -
Page 9: Warranty And Liability
Depleted batteries or rechargeable batteries that can no longer be recharged should never be disposed of along with normal or household waste. Old batteries can contain harmful substances that are hazardous to health and damaging to the environment. Please return the batteries/rechargeable batteries. Return is free of charge and required by law. Please only dispose of discharged batteries in the designated containers and tape the terminals of lithium batteries. Note: The battery used in this unit poses a fire hazard and can cause chemical injuries if it is used improperly. Neither the battery nor the battery cells should be opened or disassembled and they should not be burned or exposed to tempera- tures exceeding 100°C. If the battery needs to be disposed of, it can be removed as described under point (7.1). The disposal regulations specified above are also applicable for old devices. All batteries and rechargeable batteries can be recycled. Precious raw materials such as iron, zinc and nickel can therefore be reused. The symbol has the following meaning: Batteries and rechargeable batteries should not be disposed of along with normal or household waste. 11. Warranty and liability In accordance with our general terms and conditions ecom instruments GmbH provides a warranty for this product for a period of two years regarding its func- tion and material under the specified and permitted operating and maintenance conditions. This excludes all parts that are subject to wear and tear (e.g. batteries). We provide a 6-month manufacturer‘s warranty especially for the supplied Ex-battery. This warranty does not extend to products that are used improperly, have been modified, neglected, damaged in accidents or exposed to abnormal operating conditions and inappropriate handling. Any claims under the warranty can be invoked by returning the defective equip- ment to the manufacturer. We reserve the right to repair, adjust or exchange the device. The aforementioned warranty conditions are the sole and only right of the purchaser to compensation, are exclusively valid and replace all other contract or legal warranty obligations. ecom instruments GmbH assumes no liability for special, direct, indirect, accompanying or consequential damage as well as losses including the loss of data, independent of whether it was caused by violation of the warranty obligation, lawful or unlawful action, action in good faith or any other action. If the limitation of a legal warranty as well as the exclusion or limitation of ac- companying or consequential damage is not permissible in certain countries, it... -
Page 10: Troubleshooting
may be that the aforementioned limitations and exclusions are not valid for every purchaser. Should any such clause of these warranty conditions be declared ineffective or unenforceable by a competent court, then the effectiveness or enfor- ceability of any of the other conditions of these warranty conditions shall remain unaffected by such a judgement. 12. Troubleshooting Please note that the latest information and new points concerning troubleshooting measures can be found on the ecom instruments GmbH website under Service > Troubleshooting. Problem Remedy The phone won‘t switch on. Press and hold the power button for approx. 6 seconds. If nothing hap- pens, charge the battery When the phone is charging the If the battery is severely depleted, it keypad illuminates, but the display may take up to 20 minutes before the remains blank. display appears. If the display doesn‘t reappear after 20 minutes, disconnect the charger from the power supply and re-insert it after 1 minute. When the phone is charging the Disconnect the phone from the keypad flashes and nothing appears charger, remove the battery and then in the display. re-insert it again. Reconnect the charger to the phone and switch it on. If the problem persists, please contact the ecom instruments GmbH service department. „E“ is displayed by the network sym- It is only possible to make emergency bol (bar indicator). calls. Relocate to a position with a better reception. - Page 11 My new SIM card causes malfunc- Make sure you are using a 3V type tions. SIM card. If you use other SIM cards problems may occur. Contact your network operator for more information. If you are using a 3V SIM card, try the suggestion under phone „freezes“. Contacts saved on the SIM card are Take out the battery and remove the not visible. SIM card. Then replace the SIM card, re-insert the battery and switch on the phone. „SIM missing“ is displayed. Take out the battery and remove the SIM card. Check whether the SIM card is damaged. If it is damaged, contact your network operator for a new SIM card. Then replace the SIM card, re-insert the battery and switch on the phone. Functions deviate from the standard Check the settings in the Options me- settings. nus. Make sure no-one has changed the settings on your phone without letting you know. How can I find out my IMEI number? Enter *#06# after the start-up anima- tion or in the welcome screen. The IMEI number appears in the display immediately. How can I find out my phone‘s serial You can enter the IMEI number on number? the ecom instruments GmbH website under Service > Device information to find out the serial number. You can also find out the serial numb- er by removing the battery and looking inside the phone.
- Page 12 The volume during a call is too low. During the call press the navigation stick up to increase the volume or down to decrease the volume. This setting is automatically reset to the middle value after the call. The battery life is less than specified. Try the measures described under point 7.7 in this manual. Please also note that the battery‘s full operating capacity is only obtained after several charging cycles. Poor reception quality. Hold the phone by its base to avoid covering the antenna with your fin- gers. „PIN code incorrect“ is displayed after An incorrect PIN code has been entering the PIN. entered. Caution! If a PIN code is entered incorrectly three times in suc- cession, the SIM card is blocked. „SIM BLOCKED“ is displayed. If the PIN code has been entered incorrectly three times in succession, proceed as follows: - Enter **05* - E nter the PUK code you received from your network operator when the SIM card was delivered and confirm your entry. - E nter and confirm your PIN number. - E nter and confirm your PIN number again. After 5 or 10 failed attempts (depen- ding on the type of SIM card), the SIM card is blocked definitively. If this...
- Page 13 „Connection failed“ is displayed. Check whether you have dialled the correct number. If an „E“ appears by the network icon, see problem 4. Check to make sure you have suffici- ent credit. Make sure the SIM card used is com- patible with the desired service and that the card is still valid. Check any restrictions for outgoing calls and disable these if necessary. The network may be overloaded. Try again later. No incoming calls. Try and establish a connection to check whether the phone is operatio- nal and ready to receive calls. Check whether the call divert function is active (the symbol appears in the display) and disable this if necessary. Check any restrictions for incoming calls and disable these if necessary. It is not possible to send messages. Make sure the number for the message centre has been entered correctly (in the menu „Messages > Options > Message Centre“). You can obtain the correct number from your network operator. No Mailbox. Check whether the SIM card used is compatible with this service. Check whether the call divert function to your mailbox is active and that the correct number (available from your network operator) has been entered (menu „Settings > Calls > Mailbox Number“). Try and establish a connection to check whether the phone is operatio- nal and ready to receive calls.
- Page 14 In connection with WAP: Message „No Switch off the phone and then switch response from server“ is displayed. it back on again. Connection to home page is not Select the option „Empty cache“ possible. under „WAP > Menu services“. The name of the network operator is Select „Menu > Settings > Networks > not indicated in the display. Select“ to choose the desired network operator. Check the setting under „Menu > Settings > Display > Network Operator Logo“. This must be activated to display the network operator. How do I enable/disable the keypad Press and hold the * button for at least lock function? 2 seconds to enable or disable the keypad lock function. How do I activate the silent mode? Press and hold the # button for at least 2 seconds to enable or disable the silent mode. How do I activate the magnifying glass The magnifying glass can only be function? activated in the SMS, MMS and WAP display. To activate it press and hold the # button for at least 2 seconds. How do I get rid of the message that Press the red call button to deactivate is displayed on the welcome screen ( the message display without having „1 Call“)? read the message. How do I get rid of the envelope in the The envelope indicates that you have welcome screen? received a new SMS message. Ac- cess the SMS message to deactivate...
-
Page 15: Ec Declaration Of Conformity
GmbH reserves the right to make changes to this document or to withdraw it any time without prior notice.
