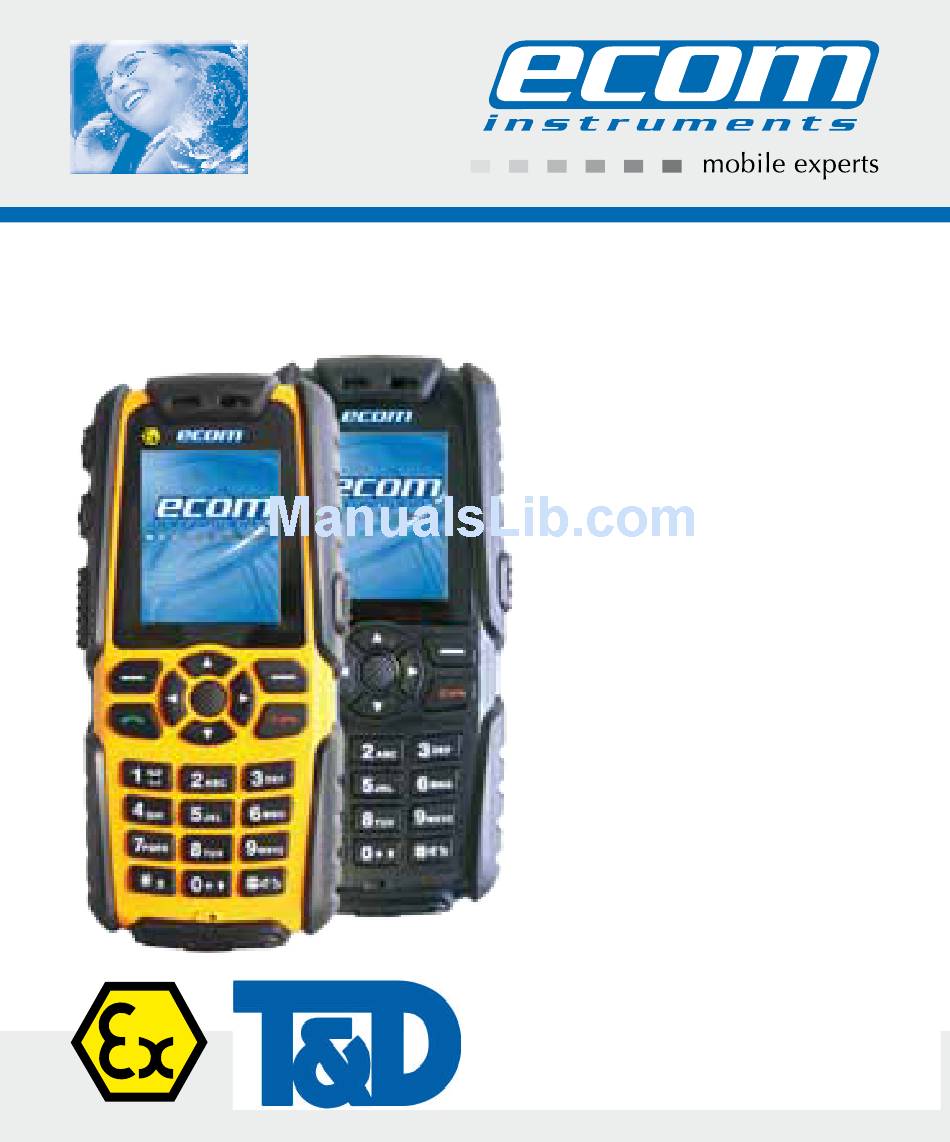

- Page 1 Ex-Handy 06 Safety instructions WWW.CABLEJOINTS.CO.UK THORNE & DERRICK UK TEL 0044 191 490 1547 FAX 0044 477 5371 TEL 0044 117 977 4647 FAX 0044 977 5582 WWW.THORNEANDDERRICK.CO.UK...
-
Page 2: Table Of Contents
Contents Application Safety precautions Faults and damage Safety regulations Ex-Data Technical specifications SAR certification Button functions Rechargeable battery and commissioning 9.1 Changing the battery 9.2 Commissioning 9.3 Safety instructions 10. Repair 11. Cleaning, maintenance and storage 12. Disposal 13. Warranty and liability 14. -
Page 3: Application
1. Application The Ex-Handy 06 is an explosion-shielded, water-, dust- and impact- resistant mobile phone for industrial application in areas with an increased risk of explosion in zones 1, 2, 21 and 22 in accordance with directive 1999/92/EC (ATEX 137) and 94/9/EC (ATEX 95). -
Page 4: Safety Regulations
- permitted limit values have been exceeded. 4. Safety regulations Use of the explosion-proof mobile phone Ex-Handy 06 assumes that the operator complies with conventional safety regulations and has read the certificate in order to eliminate faulty operation of the unit. - Page 5 - Observe the corresponding laws that are in force in the respecti- ve country regarding the use of mobile phones while operating a vehicle! - Use of the mobile phone in an airplane is not permitted! - Switch off the mobile phone when in close proximity to medical instruments and if you are requested to do so by corresponding regulations! - Manufacturers of cardiac pacemakers recommend a minimum...
-
Page 6: Ex-Data
Ex-designation: II 2G Ex ib IIC T4 II 2D Ex ibD 21 T130°C Ex-Handy 06 Approved for zone 1, device group II, explosion group IIC (explosive gases, vapours or mist), temperature class T4. Approved for zone 21, device group II, dust Ex-atmosphere, max. sur- face temperature (for surfaces on which dust can develop) +130 °C. -
Page 7: Sar Certification
7. SAR certification When communicating over the wireless network, the mobile phone emits low radio waves known as radio frequency energy or RF. The Specific Absorption Rate or SAR is the unit used to measure the amount of RF energy absorbed by the body while using the phone and is expressed in watts/kilogram. -
Page 8: Button Functions
8. Button functions Navigation buttons (up/down/left/right) Volume control Menu button Flashlight Phonebook/ disabled for PTT-function Ex-protection Left Right selection selection button button On/Off/Call Accept/Make- end button call button Press and hold To activate/ to access deactivate the loud- the mailbox speaker during a call. -
Page 9: Rechargeable Battery And Commissioning
9. Rechargeable battery and commissioning 9.1 Changing the battery The battery module Ex-AMH 06 of the Ex-Handy 06 may only be changed outside the Ex-area. Only those battery modules which are approved by the manufacturer for your device type may be used (see Safety regulations under point 4). - Page 10 3) Inserting the battery Insert the battery into the recesses on the lower side of the battery compartment. Then press the battery against the device and turn the screws of the battery clockwise. The screws should only be tightened by hand! The phone should not be connected to the charger if the battery has not been assembled.
-
Page 11: Safety Instructions
9.3 Safety precautions Damaged batteries and chargers should be removed from use and sent to ecom instruments GmbH for inspection. Note: Extreme temperatures can have an adverse effect on charging the battery module Ex-AMH 06. -
Page 12: Repair
High quality lithium-ion batteries are used in your Ex-Handy 06 . The- se batteries have numerous advantages in everyday use, such as a low weight and high capacity in a nevertheless compact construction. In addition these batteries also exhibit practically no memory effect. -
Page 13: Cleaning, Maintenance And Storage
12. Disposal Old electrical devices as well as „historical“ old electrical devices from ecom instruments GmbH are supplied for disposal at our ex- pense and disposed of free of charge in accordance with European Directive 2002/96/EC and the German electrical law of 16/03/2005. -
Page 14: Warranty And Liability
Return is free of charge and required by law. Please only dispose of discharged batteries in the designated containers and tape the terminals of lithium batteries. The disposal regulations specified above are also applicable for old devices. All batteries and rechargeable batteries can be recycled. Precious raw materials such as iron, zinc and nickel can therefore be reused. - Page 15 The aforementioned warranty conditions are the sole and only right of the purchaser to compensation, are exclusively valid and replace all other contract or legal warranty obligations. ecom instruments GmbH assumes no liability for special, direct, indirect, accompanying or consequential damage as well as losses including the loss of data,...
-
Page 16: Ec Declaration Of Conformity
Declaration of EC-Conformity according to directive 94/9/EC (ATEX) We ecom instruments GmbH, declare under our sole responsibility, that the product to which this declaration relates, is in accordance with the provision of the following standards, directives and norms: name & adress of manufacturer in the EC ecom instruments GmbH Industriestraße 2... -
Page 17: Ec Type Approval Test Certificate
15. EC type Examination Certificate... - Page 19 GmbH in keiner Form, weder ganz noch teilweise vervielfältigt, weitergegeben, verbreitet oder gespeichert werden. Der Inhalt dieses Dokuments wird so präsentiert, wie er aktuell vorliegt. Die ecom instruments GmbH übernimmt weder ausdrücklich noch stillschweigend irgendeine Gewährleistung für die Richtigkeit oder Vollständigkeit des Inhalts dieses Dokuments, einschließlich, aber nicht beschränkt auf die stillschweigende...
