- Page 1 com 500/501-Ex com 510/511-Ex com 600/601-Ex com 610/611-Ex Safety instructions...
-
Page 2: Table Of Contents
Table of Contents 1. Application 2. Safety information 3. Faults and damage 4. Safety regulations 5. Ex-Data com 5xx –Ex com 6xx –Ex 6. Specifications 7. Battery 7.1 Changing the battery 7.1.1 Removing the battery 7.1.2 Inserting the battery 7.1.3 Charging the battery 7.2 Safety information 8. -
Page 3: Application

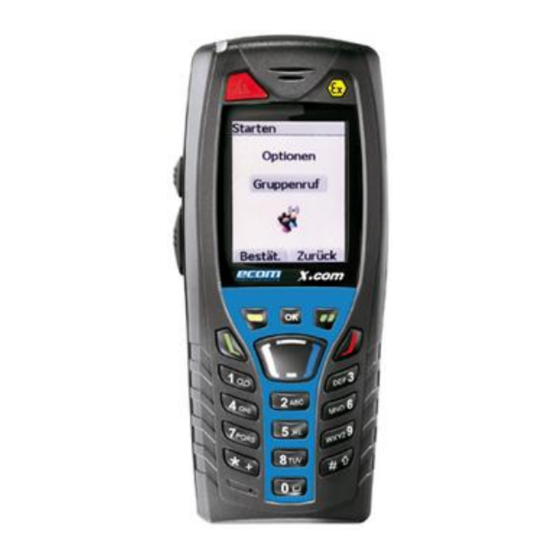

1. Application com 5xx -Ex and 6xx -Ex is an intrinsically safe, splash water-, (dust- according type of device) and impact-resistant mobile phone for industrial application in areas with an increased risk of explosion, in accordance with directive 1999/92/EC (ATEX 137) and 94/9/EC (ATEX 95). 2. -
Page 4: Safety Regulations
- The battery module may only be charged in a temperature range of 0 °C - 45 °C. - Only accessories approved by ecom instruments GmbH may be used. com 5xx -Ex and 6xx -Ex is not waterproof, therefore keep it dry! - Page 5 Only valid for model com 50x -Ex - Only the original battery module AMX 50 (Li-Polymer 3.7V) should be used! - The charging socket cover must be firmly engaged in the unit. - When changing the battery (after use in the dust Ex-area) the unit and the battery terminals are to be checked for cleanliness and cleaned, if necessary, using suitable means (brush, compressed air, etc.).
-
Page 6: Ex-Data
- It must be ensured that the unit is not taken into zones 0 or 20, 21 and 22! 5. Ex-Data com 5xx -Ex EC-Declaration of conformity: ZELM 08 ATEX 3380 X Ex-Designation: com 50x -Ex com 51x -Ex II 3G Ex ic IIC T4 II 3G Ex ic IIC T4 II 3D Ex icD 22 T130°C com 50x -Ex and... -
Page 7: Specifications
com 60x –Ex and com 61x –Ex: Approved for zone 1, device group II, explosion group IIC (explosive gases, vapours or mist), temperature class T4. com 60x –Ex: Only Approved for zone 21, device group II, explosive dust, temperature T130 °C 6. -
Page 8: Inserting The Battery
com 5xx -Ex and com 61x -Ex: com 50x –Ex) respectively the safety plug After removing the charging socket cover ( com 60x –Ex) - not applicable for com 51x -Ex and com 61x -Ex -, turn the mobile phone. 7.1.2 Inserting the battery Proceed as follows to insert the battery: Insert the battery module with the two catches (located at the top of the battery) placed in the recesses in the mobile phone. -
Page 9: Charging The Battery
the battery module into the phone until the retaining spring audibly clicks in place. Mount the charging socket cover ( com 50x –Ex) respectively the safety plug ( com 60x –Ex) 7.1.3 Charging the battery Your phone is supplied with power via a rechargeable battery. Before a new battery can be used for the first time it must have been charged for at least 4 hours. -
Page 10: Safety Information
8. Repair Repairs are to be conducted by ecom instruments GmbH or by personnel or service centres authorised by ecom instruments GmbH, because the safety of the unit needs to be tested after repairs are implemented. 9. EC Declaration of Conformity Further details regarding the declaration of conformity can be found at the following address: http://www.ecom-ex.com in the download area. -
Page 11: Declaration Of Conformity ( X. Com 5Xx -Ex)
10. Declaration of Conformity... -
Page 14: Ec-Type Examination Certificate ( X. Com 6Xx -Ex)
10. EC-Type Examination Certificate... - Page 18 GmbH prior written consent. The contents of this document are presented as they currently exist. ecom instruments GmbH does not provide any express or tacit guarantee for the correctness or completeness of the contents of this document, including, but not restricted to, the tacit guarantee of market suitability or fitness for a specific purpose unless applicable laws or court decisions make liability mandatory.
