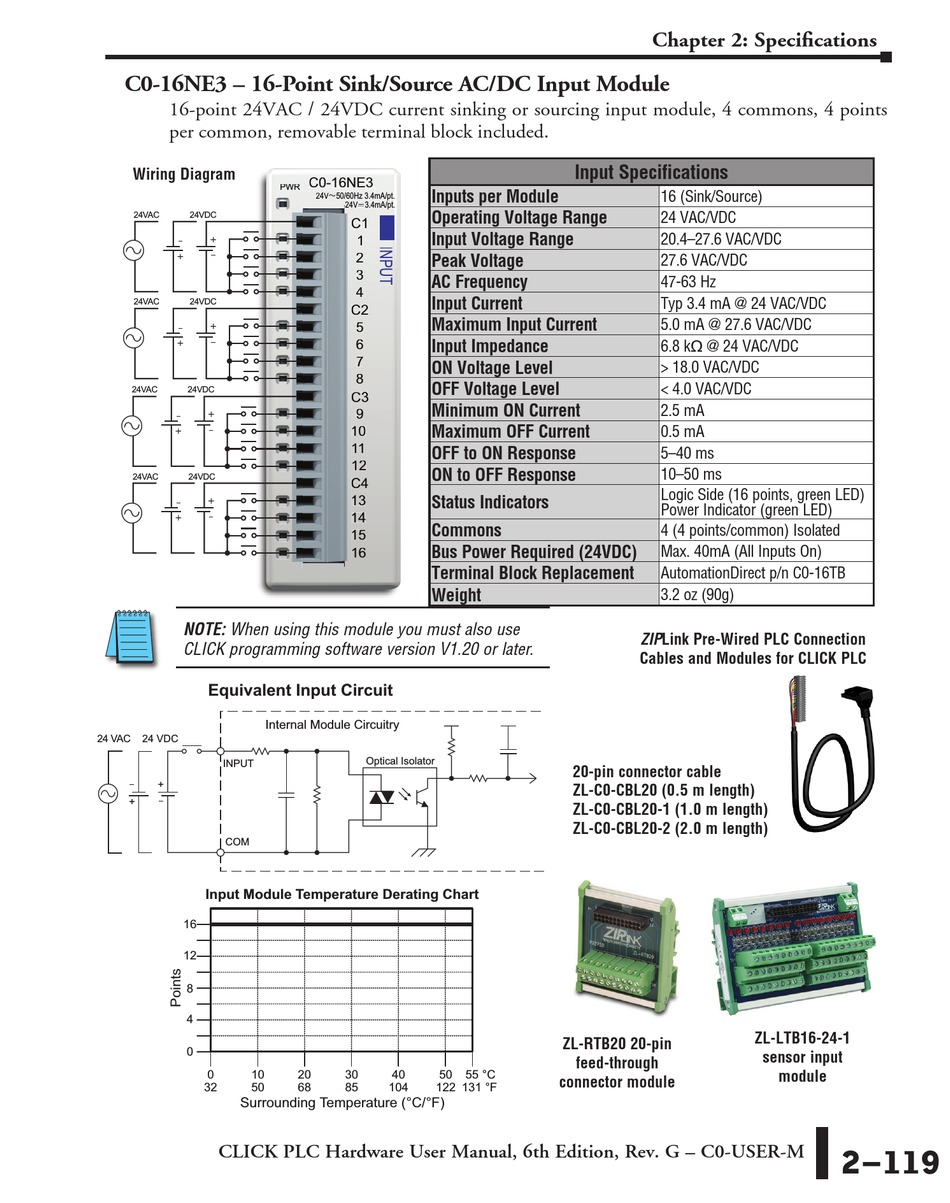

C0-16NE3 – 16-Point Sink/Source AC/DC Input Module
16-point 24VAC / 24VDC current sinking or sourcing input module, 4 commons, 4 points
per common, removable terminal block included.
Wiring Diagram
24VAC 24VDC
24VAC 24VDC
24VAC 24VDC
24VAC 24VDC
NOTE: When using this module you must also use
CLICK programming software version V1.20 or later.
Equivalent Input Circuit
Internal Module Circuitry
24 VAC 24 VDC
INPUT
+
+
COM
Input Module Temperature Derating Chart
16
12
8
4
0
0 10
32 50
Surrounding Temperature (°C/°F)
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
C0-16NE3 C0-16NE3
PWR PWR
Inputs per Module
24V〜50/60Hz 3.4mA/pt. 24V〜50/60Hz 3.4mA/pt.
24V 3.4mA/pt. 24V 3.4mA/pt.
Operating Voltage Range
C1 C1
Input Voltage Range
1 1
2 2 Peak Voltage
3 3
AC Frequency
4 4
Input Current
C2 C2
Maximum Input Current
5 5
6 6 Input Impedance
7 7
ON Voltage Level
8 8
OFF Voltage Level
C3 C3
Minimum ON Current
9 9
Maximum OFF Current
10 10
11 11
OFF to ON Response
12 12
ON to OFF Response
C4 C4
13 13 Status Indicators
14 14
Commons
15 15
Bus Power Required (24VDC)
16 16
Terminal Block Replacement
Weight
Optical Isolator
20 30 40 50
68 85 104 122
Input Specifications
20-pin connector cable
ZL-C0-CBL20 (0.5 m length)
ZL-C0-CBL20-1 (1.0 m length)
ZL-C0-CBL20-2 (2.0 m length)
ZL-RTB20 20-pin
feed-through
55 °C
connector module
131 °F
Chapter 2: Specifications
16 (Sink/Source)
24 VAC/VDC
20.4–27.6 VAC/VDC
27.6 VAC/VDC
47-63 Hz
Typ 3.4 mA @ 24 VAC/VDC
5.0 mA @ 27.6 VAC/VDC
6.8 kq @ 24 VAC/VDC
> 18.0 VAC/VDC
< 4.0 VAC/VDC
2.5 mA
0.5 mA
5–40 ms
10–50 ms
Logic Side (16 points, green LED)
Power Indicator (green LED)
4 (4 points/common) Isolated
Max. 40mA (All Inputs On)
AutomationDirect p/n C0-16TB
3.2 oz (90g)
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
ZL-LTB16-24-1
sensor input
module
