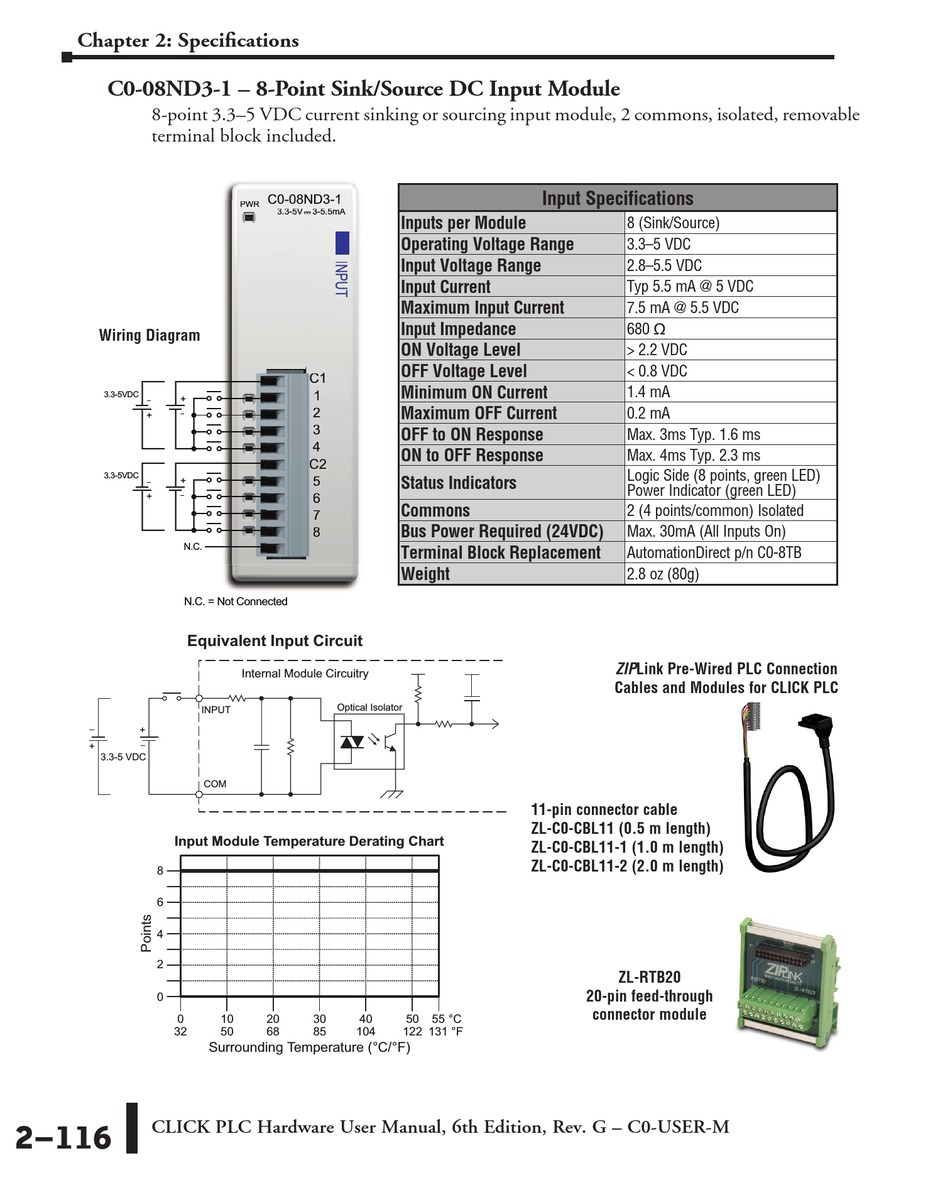

Chapter 2: Specifications
C0-08ND3-1 – 8-Point Sink/Source DC Input Module
8-point 3.3–5 VDC current sinking or sourcing input module, 2 commons, isolated, removable
terminal block included.
Wiring Diagram
3.3-5VDC
3.3-5VDC
N.C.
N.C. = Not Connected
Equivalent Input Circuit
+
+
3.3-5 VDC
Input Module Temperature Derating Chart
8
6
4
2
0
0
32
2–116
CLICK PLC Hardware User Manual, 6th Edition, Rev. G – C0-USER-M
C0-08ND3-1 C0-08ND3-1
PWR PWR
3.3-5V 3.3-5V 3-5.5mA 3-5.5mA
C1 C1
1 1
2 2
3 3
4 4
C2 C2
5 5
6 6
7 7
8 8
Internal Module Circuitry
Optical Isolator
INPUT
COM
10 20 30 40
50 68 85 104
Surrounding Temperature (°C/°F)
Input Specifications
Inputs per Module
Operating Voltage Range
Input Voltage Range
Input Current
Maximum Input Current
Input Impedance
ON Voltage Level
OFF Voltage Level
Minimum ON Current
Maximum OFF Current
OFF to ON Response
ON to OFF Response
Status Indicators
Commons
Bus Power Required (24VDC)
Terminal Block Replacement
Weight
11-pin connector cable
ZL-C0-CBL11 (0.5 m length)
ZL-C0-CBL11-1 (1.0 m length)
ZL-C0-CBL11-2 (2.0 m length)
50 55 °C
122 131 °F
8 (Sink/Source)
3.3–5 VDC
2.8–5.5 VDC
Typ 5.5 mA @ 5 VDC
7.5 mA @ 5.5 VDC
680 q
> 2.2 VDC
< 0.8 VDC
1.4 mA
0.2 mA
Max. 3ms Typ. 1.6 ms
Max. 4ms Typ. 2.3 ms
Logic Side (8 points, green LED)
Power Indicator (green LED)
2 (4 points/common) Isolated
Max. 30mA (All Inputs On)
AutomationDirect p/n C0-8TB
2.8 oz (80g)
ZIPLink Pre-Wired PLC Connection
Cables and Modules for CLICK PLC
ZL-RTB20
20-pin feed-through
connector module
