SCARAB HYDROSTATIC TRUCK-MOUNTED SWEEPERS

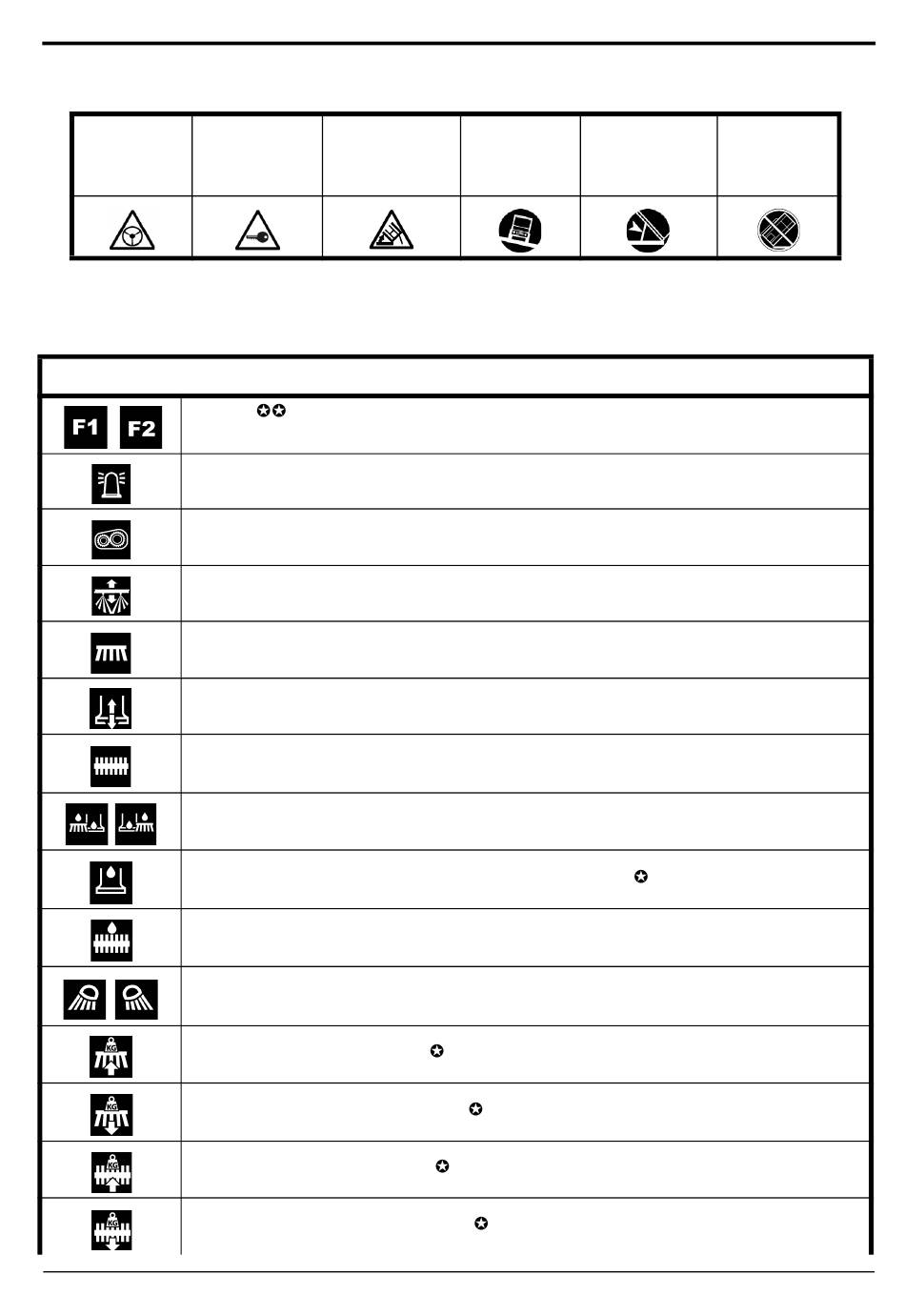

ADDITIONAL SAFETY ADVICE SYMBOLS
CHECK IN NEUTRAL CHECK ALL FIRM LEVEL USE CAB OR DO NOT
VEHICLE SWITCHES CLEAR TO GROUND HOPPER DRIVE WITH
BEFORE OFF BEFORE RAISE BODY ONLY SAFETY PROP BODY UP
DRIVING STARTING
SWITCH OPERATING SYMBOLS
MAIN SWEEPING PANEL SWITCHES ( )
FROM LEFT TO RIGHT & TOP TO BOTTOM
SPARE (Additional information is appended at back of manual when
these switches are used to operate non-standard optional equipment).
HAZARD WARNING BEACONS
HYDROSTATIC DRIVE
HIGH PRESSURE FRONT SPRAY BAR - RAISE / LOWER.
The spray bar will operate in either position.
SIDE BRUSH - ON / OFF
SUCTION NOZZLE - RAISE / LOWER
WIDESWEEP BRUSH - ON / OFF
SIDE BRUSH & SUCTION NOZZLE WATER SPRAYS - ON / OFF
SUCTION NOZZLE ADDITIONAL WATER - ON / OFF
WIDESWEEP WATER SPRAYS - ON / OFF
WORK LIGHTS - ON / OFF
SIDE BRUSH PRESSURE - UP
SIDE BRUSH PRESSURE - DOWN
WIDESWEEP PRESSURE - UP
WIDESWEEP PRESSURE - DOWN
Continued...
