Description Of Main Control Panel - Scarab Merlin Operator's Manual

SCARAB HYDROSTATIC TRUCK-MOUNTED SWEEPERS
MAIN PANEL SWITCH DESCRIPTIONS
Switch functions are described from Left to Right and Top to Bottom.
Switches that are fully enabled ONLY when the Master Switch is
ON or Sweep Mode is ON are identified by the following symbols.
LIQUID CRYSTAL DISPLAY
(LCD SCREEN)
SWEEP MODE
SPARE (OPTIONS)
H-P WATER PUMP *
BEACONS
LEFT NOZZLE
RAISE/LOWER
LEFT HAND
SIDE-BRUSH
EXTRA WATER
LEFT NOZZLE *
LEFT SIDE WATER
WIDESWEEP
LEFT SIDE
WORK LIGHTS
SIDE BRUSH UP/
DOWN PRESSURE *
SUCTION FAN
FAN BOOST
INCREASE BRUSH SPEED
AUXILIARY BRUSH RAISE/LOWER *
ON/OFF + WATER SPRAY *
SWING IN/OUT *
F1 / F2 SWITCHES - Press to activate special options when fitted.
BEACON SWITCH - Press to operates all hazard beacons fitted to the
vehicle. Red LED illuminates when active.
HIGH-PRESSURE SPRAY BAR RAISE LOWER SWITCH
spray bar. The red LED will illuminate when the feature is selected.
The switch is not enabled until the H-P pump is switched ON.
Switching the pump OFF will cause the spray bar to be raised.
Original Issue - 26 January 2010
X
FUNCTION IS NOT APPLICABLE
A
N
IN THIS SWEEPER CONFIGURATION
When in Sweep Mode:
UPPER LINE = FAN SPEED
LOWER LINE = ROAD SPEED / WARNINGS
X
N
MAIN PANEL
*
OPTIONAL EQUIPMENT

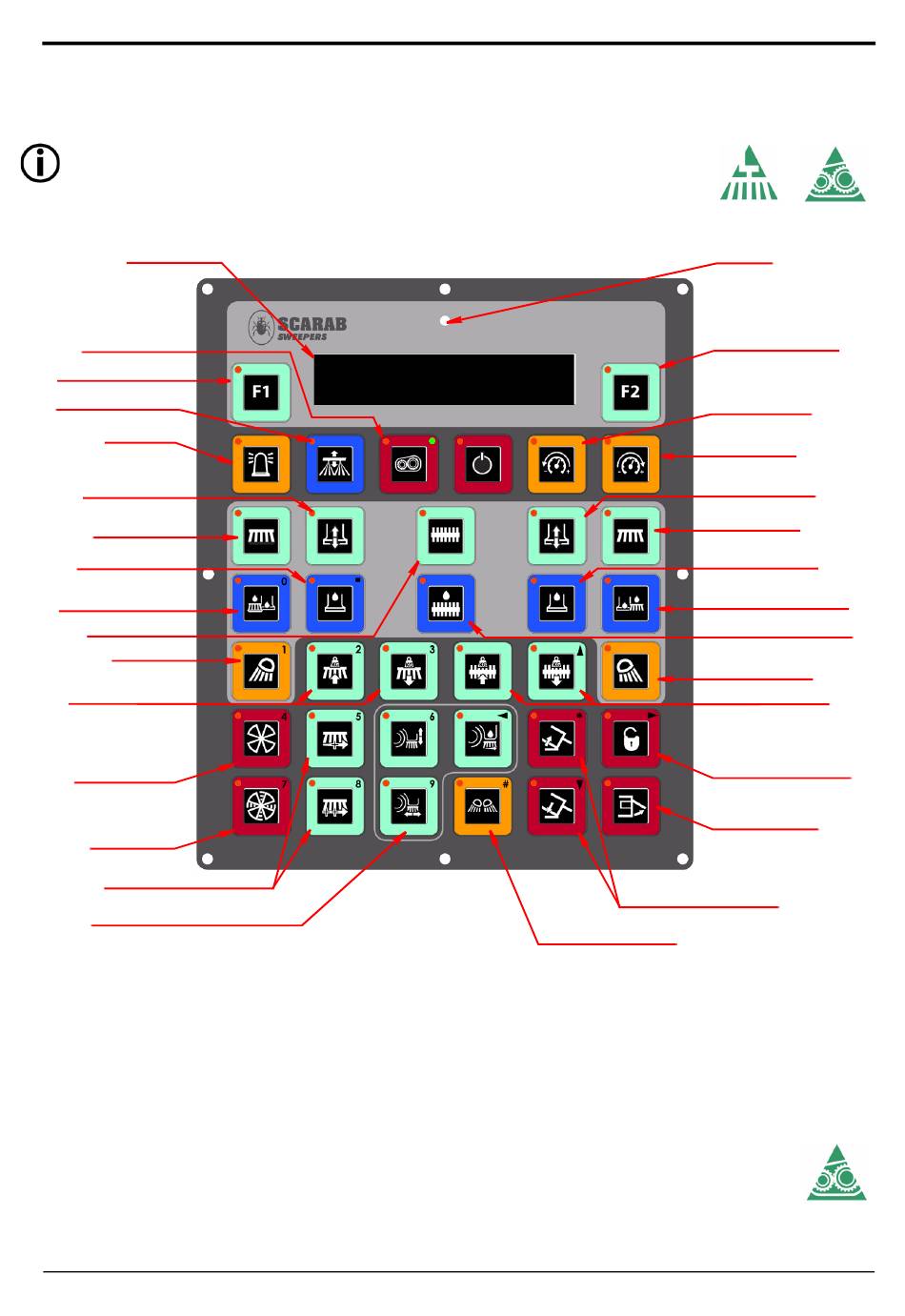

Fig. 1 Main Control Panel Layout
Operator's Manual - CANbus 2 Models
A
HOPPER RAISE/LOWER
REAR WORK LAMPS *
- Press to lower the
*
MASTER SWEEP
AMBIENT LIGHT
SENSOR
SPARE (OPTIONS)
ENGINE SPEED
DECREASE
ENGINE SPEED
INCREASE
RIGHT NOZZLE
RAISE/LOWER
RIGHT HAND
SIDE-BRUSH
EXTRA WATER
RIGHT NOZZLE *
RIGHT SIDE WATER
WIDESWEEP WATER
RIGHT SIDE
WORK LIGHTS
WIDESWEEP UP/
DOWN PRESSURE *
SAFETY INTERLOCK
HOPPER DOOR
OPEN
Continued...
