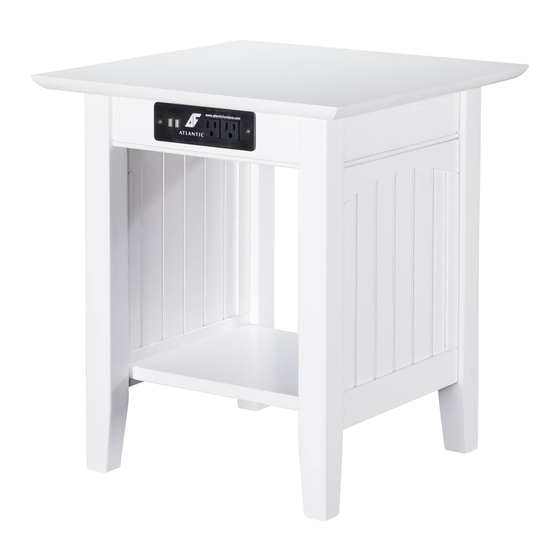

NANTUCKET END TABLE CHARGING STATION
instructions carefully and familiarize yourself with the different parts.
please contact Atlantic Furniture at customerservice@atlanticfurniture.com or 1-800-955-3726
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
A
Flat washer - 4 pcs
B
JCB M8 - 4 pcs
Spare - 1 pc
01
TOP PANEL
02
LEG
03
SIDE PANEL
LOWER SHELF
04
ASSEMBLY INSTRUCTIONS
Before assembling your end table, please read through these
ATTENTION! If you receive a damaged or defective item,
C
Allen wrench - 1 pc
D
Wooden dowel 1/4" X 1 1/4" - 4 pcs
PARTS LIST
1 PC
4 PCS
2 PCS
1 PC
04
01
E
Wooden dowel 3/8 X 1 1/4" - 4 pcs
Spare - 1 pc
03
03
READY
TO
ASSEMBLE
Adult assembly
Adult assembly
Spare - 1 pc
F
Wood screw - 8 pcs
Spare - 2 pcs
02
Page 1 of 3
Advertisement
Related Manuals for Atlantic Furniture NANTUCKET END TABLE CHARGING STATION
Summary of Contents for Atlantic Furniture NANTUCKET END TABLE CHARGING STATION
- Page 1 ASSEMBLE ATTENTION! If you receive a damaged or defective item, please contact Atlantic Furniture at customerservice@atlanticfurniture.com or 1-800-955-3726 Adult assembly Adult assembly NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
- Page 2 NANTUCKET END TABLE CHARGING STATION Attach the legs (02) to the top panel (01) using flat washers (A) and JCB (B), tighten Step 1 with Allen wrench (C), as shown below. Adult assembly Adult assembly STEP 2 STEP 3 Attach first side panel (03) to end table...
- Page 3 NANTUCKET END TABLE CHARGING STATION Attach second side panel (03) the same as the first but place the lower shelf (04) Step 4 in position by aligning the wooden dowels with the holes in the side panel. Adult assembly Adult assembly...
