READY

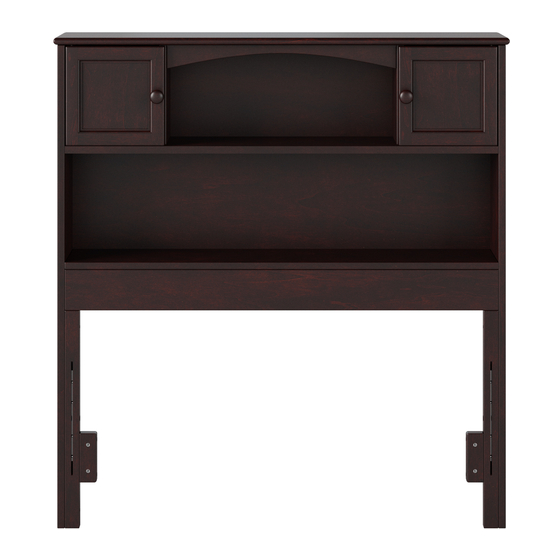

NEWPORT BOOKCASE HEADBOARD

Before assembling your Newport bookcase headboard, please read through these

Phillips Head

Screwdriver

Please note that you will require a Phillips Head Screwdriver, Hammer and an Allen wrench.

Customer Supplied

NEWPORT BOOKCASE BED WITH BED DRAWER

NEWPORT BOOKCASE BED WITH TRUNDLE BED

HEADBOARD HARDWARE

JCB M6 X 1 1/2"(35mm) - 10 pcs

Spare - 2 pcs

JCB M6 X 2"(50mm) - 6 pcs

Spare - 2 pcs

JCB M6 X 2 3/4"(70mm) - 4 pcs

Spare - 1 pc

BARREL NUT - 4 pcs

Spare - 1 pc

Newport bookcase headboard

ASSEMBLY INSTRUCTIONS

instructions carefully, familiarize yourself with the different parts.

NOTE : WE INCLUDE SPARE HARDWARE IN CASE THE ALLEN WRENCH, JCB,

METAL PIN, BARREL NUT, NAIL OR WOOD SCREW ARE DAMAGED DURING ASSEMBLY.

METAL PIN - 4 pcs

METAL L-BRACKET - 2 pcs

WOOD SCREW 5/8" - 4 pcs

NAIL 5/8" - 36 pcs

( TWIN )

Spare - 1 pc

Spare - 2 pcs

Customer supplied

WOODEN PULL - 2 pcs

WOODEN PULL SCREW - 2 pcs

ALLEN WRENCH - 1 pc

Spare - 1 pc

Hammer

Adult Assembly

Page 1 of 5

Page 1 READY NEWPORT BOOKCASE HEADBOARD ASSEMBLY INSTRUCTIONS ( TWIN ) Before assembling your Newport bookcase headboard, please read through these instructions carefully, familiarize yourself with the different parts. Phillips Head Hammer Screwdriver Please note that you will require a Phillips Head Screwdriver, Hammer and an Allen wrench.
Page 2 Attach top rail (10) to the left, right divider (06)(07) assembling to the top shelf (05) as shown bellow. Using JCB (A) tighten with allen wrench (K). Adult Assembly JCB M6 X 1 1/2” ALLEN WRENCH Page 2 of 5 Newport bookcase headboard...
Page 3 Attach the top shelf assemblies, bottom shelf (11) and pillow stop (12) to the side panels as shown below. Using JCB (A) tighten with allen wrench (K). Adult Assembly JCB M6 X 1 1/2” ALLEN WRENCH Page 3 of 5 Newport bookcase headboard...
Page 4 Using JCB (A) tighten with allen wrench (K). Be sure the magnet catch counterpiece of the door contact with magnet catch housing. MAGNET CATCH DOOR (BACK VIEW) HEADBOARD Adult Assembly UPPER JCB M6 X 1 1/2” COUNTERPIECE HOUSING ALLEN WRENCH Page 4 of 5 Newport bookcase headboard...
Page 5 Your Newport bookcase bed is now ready for use. We recommend that you recheck that all screws are tight, and that all parts are secure before use and periodically to ensure lasting Safety. Page 5 of 5 Newport bookcase headboard...
