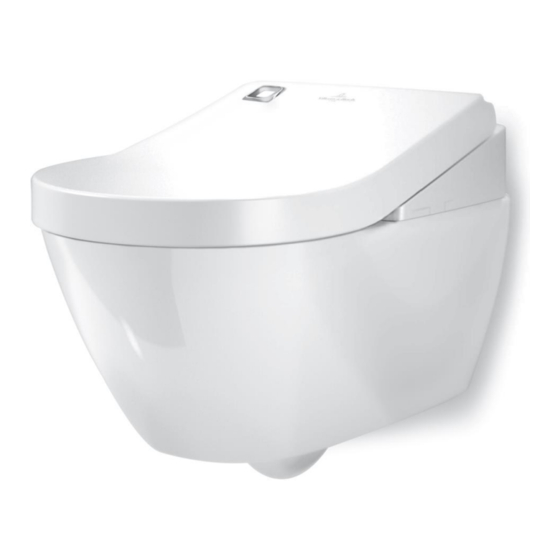

Electronic bidet seat

Advertisement

Electronic Bidet Seat
Powered byTOTO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VICLEAN U+ and is the answer not in the manual?

Questions and answers

Summary of Contents for Villeroy & Boch VICLEAN U+

  • Page 1 Electronic Bidet Seat Powered byTOTO...
  • Page 2: Precautions Before Installation

    Installation Guide Before installation, be sure to read this installation guide and the separate safety sheet. Mount parts properly according to the instructions. Precautions before installation ● Only turn on the electricity and water supply for the product after all other installation work has been completed.
  • Page 3: Specifications

    Specifications Check the appropriate type for your mains connection in the table below, and then wire and install the product correctly. 220 – 240V alternating voltage, 50 Hz Rated power supply (fluctuating) 845 - 855W Rated power consumption (fluctuating) 1528W Maximum power consumption (At a water supply temperature of 0°C) Power cord length...
  • Page 4: Included Parts

    Included Parts Anti-theft protection for the remote control Please ask the home owner if he would like to have the remote control anti-theft kit installed before starting installation. Please leave the anti-theft kit with the owner if it is not installed.
  • Page 5: Required Tools/Items

    Required tools/items Use a soft, damp cloth to prevent damage to the product. Ø = 3 mm Ø = 6 mm B-10 B-11...
  • Page 6: Connection Possibilities

    Connection Possibilities Without ViConnect. Please follow the indications in this manual. Characteristics: • Two water connections are needed, one for the flushing of the WC and another one for the shower toilet • When looking towards the wall mount, the electric connection is located on the left, whereas the water connection on the right.
  • Page 7 Connection Possibilities With ViConnect – Please follow manual provided with ViConnect set! 9224 61 00 9218 51 00 9221 15 00 Characteristics: • Only one water connection is necessary. Both, the seat and the toilet will use the same one. •...
  • Page 8: Installation Procedure

    Installation procedure Switch the circuit breaker in the fuse box to OFF. 180 mm 190 mm 30 cm Phase Neutral Earth...
  • Page 10 Press C-1 into A-6 until C-1 engages with a click. (After C-1 is mounted, make sure that it cannot be removed even if it is pulled.)
  • Page 11 Switch the circuit breaker in the fuse box to ON.
  • Page 12: Mounting The Remote Control

    Mounting the remote control 300 mm Side wall 250 mm 390 mm 250 mm Rear wall...
  • Page 13 Temporarily place the remote control in the position determined in and check the signal reception at A-1. Hold down...
  • Page 14 Ø = 6 mm Ø = 3mm Anchored by magnet.
  • Page 15 Anti-theft protection for the remote control Ø = 6mm Ø = 6mm Ø = 3mm Ø = 3mm...
  • Page 16: Trial Run

    Trial run Open the water shutoff valve (B-8). Hold down Hold down...
  • Page 17: Information For The Installer

    Dimensions 390mm 134 mm 64mm 220mm 392mm 92° 538 mm Information for the installer ● Please explain the features and operation of to the customer. ● If the product will not be used for a long time (for example, when it is installed in an unoccupied, newly constructed building), switch the circuit breaker in the fuse box to OFF.
  • Page 18 GERMANY Villeroy&BochAG Bathroom a nd Wellness Division Headquarter D - 66693 Mettlach 08-2015 Colours and dimensions are subject to commonly accepted tolerances. Subject to technical changes and colourmodifications.
