PROFESSIONAL MEDICAL PRODUCTS

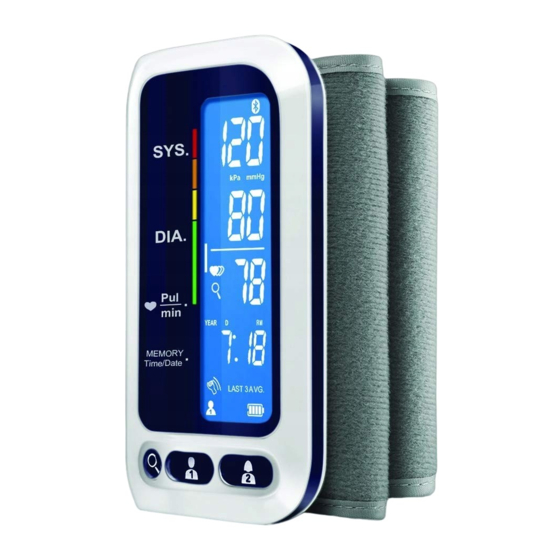

MISURATORE DI PRESSIONE GIMA BLUETOOTH
GIMA BLUETOOTH B.P.MONITOR
TENSIOMÈTRE BLUETOOTH GIMA
MEDIDOR DE PRESIÓN DEL BLUETOOTH DEL GIMA
32916 / LS808-BS
Guangdong Transtek Medical Electronics Co., Ltd.
Zone A, No.105, Dongli Road,
Torch Development District,
Zhongshan, 528437, Guangdong, China
Made in China
MDSS - Medical Device Safety Service GmbH
Schiffgraben 41, 30175 Hannover, Germany
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
gima@gimaitaly.com - export@gimaitaly.com
www.gimaitaly.com
0123
